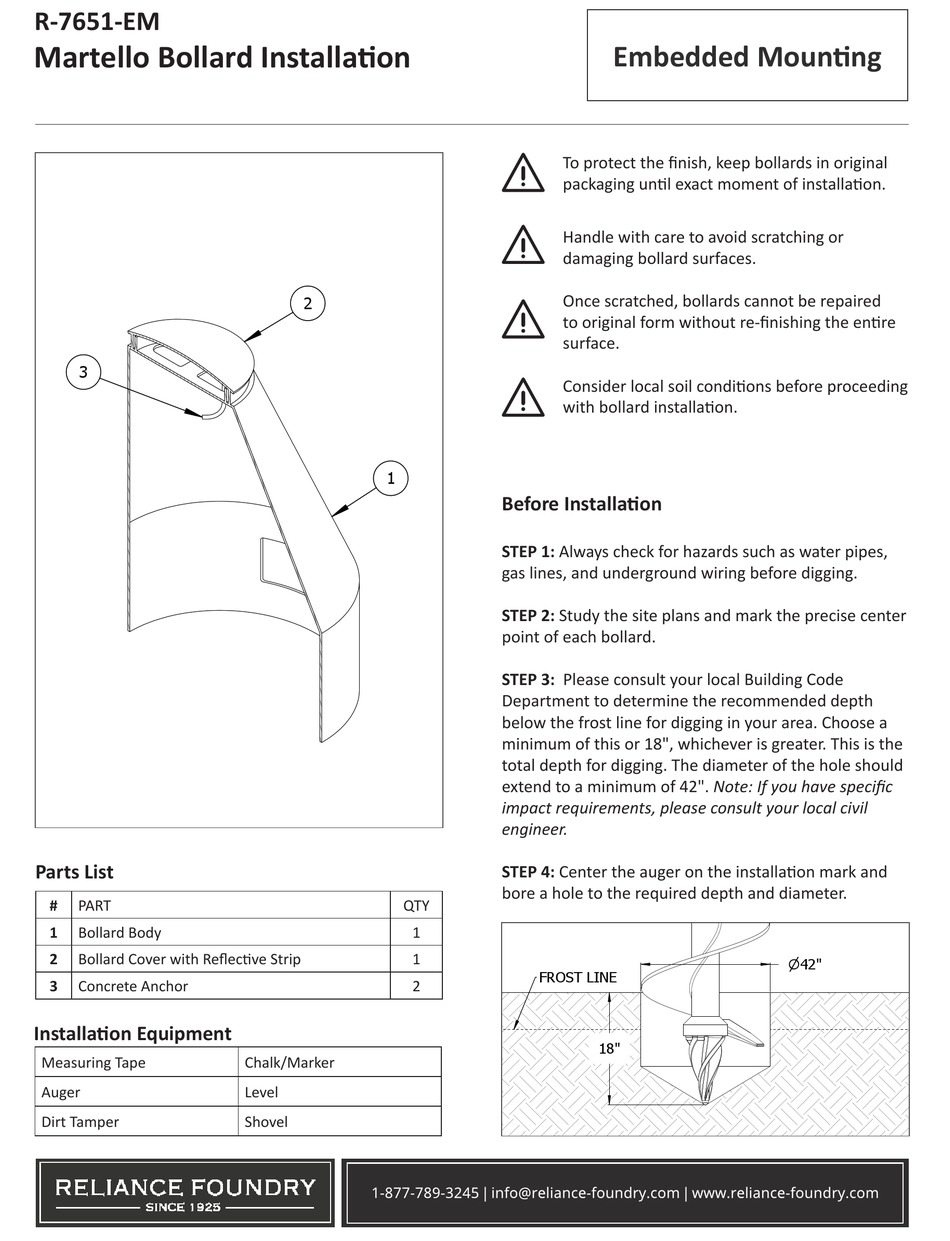

R-7651-EM
Martello Bollard Installation
3
Parts List
#
PART
1
Bollard Body
2
Bollard Cover with Reflective Strip
3
Concrete Anchor
Installation Equipment
Measuring Tape
Auger
Dirt Tamper
2
1
QTY
1
1
2
Chalk/Marker
Level
Shovel
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
Embedded Mounting
To protect the finish, keep bollards in original
packaging until exact moment of installation.
Handle with care to avoid scratching or
damaging bollard surfaces.
Once scratched, bollards cannot be repaired
to original form without re-finishing the entire
surface.
Consider local soil conditions before proceeding
with bollard installation.
3
Before Installation
STEP 1: Always check for hazards such as water pipes,
gas lines, and underground wiring before digging.
STEP 2: Study the site plans and mark the precise center
point of each bollard.
STEP 3: Please consult your local Building Code
Department to determine the recommended depth
below the frost line for digging in your area. Choose a
minimum of this or 18", whichever is greater. This is the
total depth for digging. The diameter of the hole should
extend to a minimum of 42". Note: If you have specific
impact requirements, please consult your local civil
engineer.
STEP 4: Center the auger on the installation mark and
bore a hole to the required depth and diameter.
FROST LINE
18"
W
2
1
42"
Advertisement
Table of Contents
Related Manuals for Reliance Foundry R-7651-EM
Summary of Contents for Reliance Foundry R-7651-EM
- Page 1 R-7651-EM Martello Bollard Installation Embedded Mounting To protect the finish, keep bollards in original packaging until exact moment of installation. Handle with care to avoid scratching or damaging bollard surfaces. Once scratched, bollards cannot be repaired to original form without re-finishing the entire surface.
- Page 2 R-7651-EM Martello Bollard Installation Embedded Mounting STEP 5 STEP 5: Ensure the area is properly formed to create a perimeter that will hold wet concrete. Use a dirt tamper** FROST LINE to compact the soil below the intended surface. Set the Bollard STEP 6: Keep the bollard in its protective packaging and carefully place near the installation position.
- Page 3 R-7651-EM Martello Bollard Installation Embedded Mounting STEP 15 STEP 15: Once aligned, press the cap and concrete anchors into the wet concrete until the cap sits flat on the base. Note: Be sure to make any necessary adjustments to the 1/2"...
