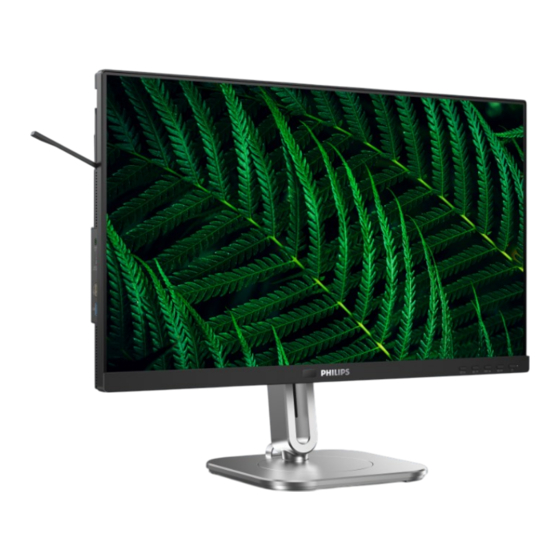

24B2G5301
LCD Monitor
24B2G5301
WARNING
This disassembly information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this disassembly information by anyone else could result in serious injury or death.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24B2G5301 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips 24B2G5301

  • Page 1 24B2G5301 LCD Monitor 24B2G5301 WARNING This disassembly information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
  • Page 2 24B2G5301 Content Index General Safety Instructions ............................2 1. General Guidelines ..............................2 2. Important Notice ..............................2 3. How to Read this Instruction ..........................4 Exploded view diagram with list of items ........................5 Disassembly SOP ..............................6...
  • Page 3 24B2G5301 General Safety Instructions 1. General Guidelines When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
  • Page 4 24B2G5301 Confirm that the screws, parts and wiring which were removed in order to service are put in the original positions, or whether there are the positions which are deteriorated around the serviced places serviced or not. Check the insulation between the antenna terminal or external metal and the AC cord plug blades. And be sure the safety of that.
  • Page 5 24B2G5301 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as Yanti- staticY can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
  • Page 6 24B2G5301 Exploded view diagram with list of items...
  • Page 7 1. Suggest Tools Here are some tools that can be used for the LCD monitor’s service and repair. Philips-head Screwdriver Use a Philips-head screwdriver to fasten/remove the K- or B-typed screws P/N:N/A Gloves To protect LCD Panel and your hand...
  • Page 8 24B2G5301 2. Disassembly Procedures Step Figure Description  Press the release button to slide out the stand Remove stand assy. assembly  Remove vesa cover.  Release screws to take out vesa.
  • Page 9 24B2G5301  Use the tool to Remove back open all the cover latches.  Disconnect cable.
  • Page 10 24B2G5301  Tear out all the tapes and mylar. Release screws  and disconnect Remove main all the cables. frame  Lift up mainframe to disconnect cable.
  • Page 11 24B2G5301...
  • Page 12 24B2G5301  Release all the Remove deco screws. Take out mylar   Release screws Separate boards to take out switch from main frame board  Keep sponge in place.
  • Page 13 24B2G5301  Take out sponge  Release screws to take out key board. Remove sensor  Release screw to and key board. take out sensor board.  Keep earphone hang in place.
  • Page 14 24B2G5301  Disconnect cables. Remove speakers  Take out speakers.
  • Page 15 24B2G5301...
