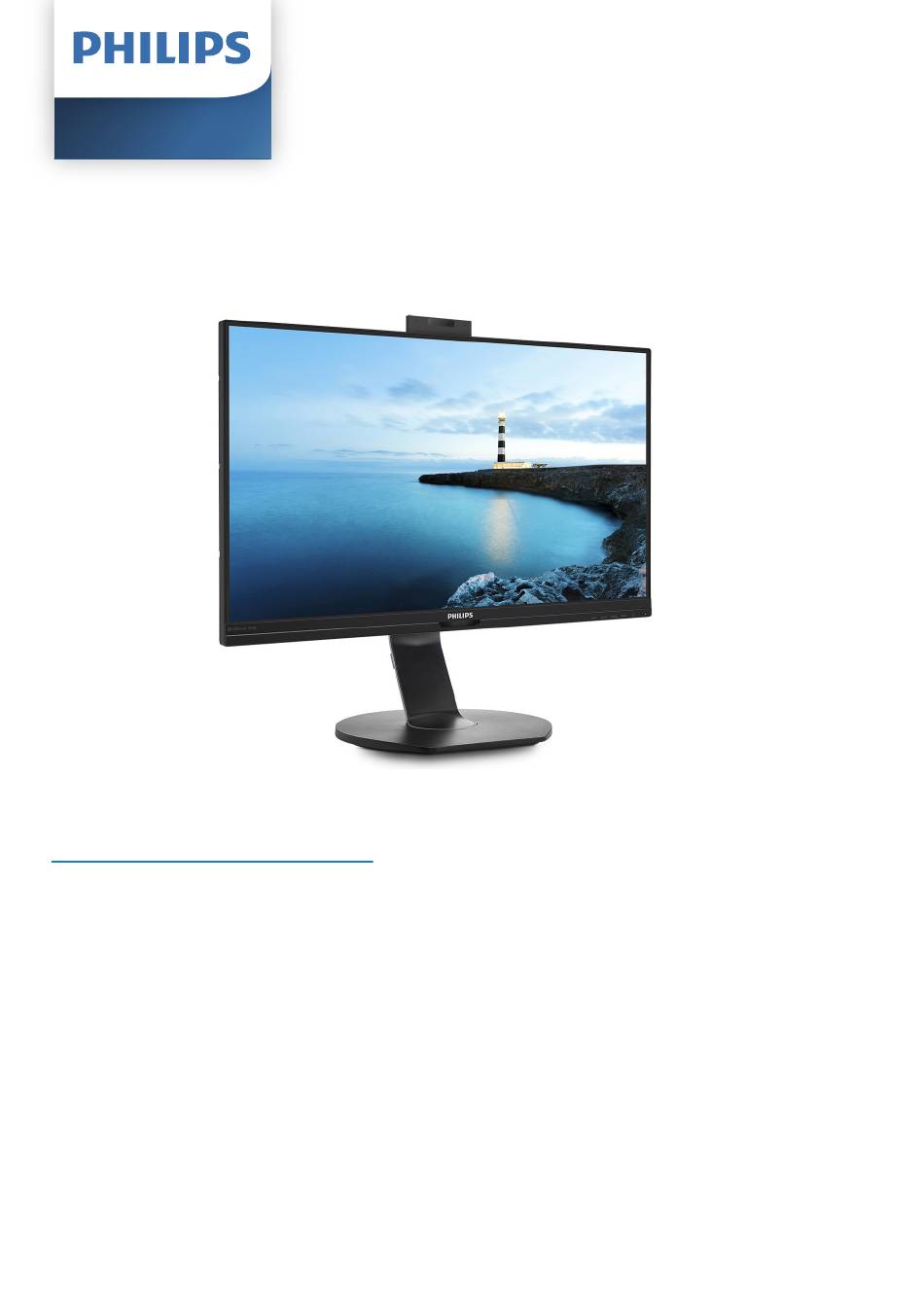

B line
241B7
www.philips.com/welcome
EN User manual
1
Customer care and warranty 29
Troubleshooting & FAQs
33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Philips B Series

Summary of Contents for Philips B Series

  • Page 1 B line 241B7 www.philips.com/welcome EN User manual Customer care and warranty 29 Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    Table of Contents Important ........1 10. Customer care and warranty . 29 1.1 Safety precautions and 10.1 Philips’ Flat Panel Monitors maintenance ......... 1 Pixel Defect Policy ....29 1.2 Notational Descriptions .... 3 10.2 Customer Care & Warranty ..32 1.3 Disposal of product and packing...

  • Page 3: Important

    • Please use approved power cord and production number of the product. provided by Philips all the time. If your power cord is missing, please contact with your local service 1.1 Safety precautions and center.
  • Page 4 1. Important be better than a 15-minute break not expose the monitor to dust, every two hours. Try to keep your rain, water, or excessive moisture eyes from eye strain while using the environment. screen for a constant period of time • If your monitor gets wet, wipe it with by : dry cloth as soon as possible.

  • Page 5: Notational Descriptions

    1. Important Warning 1.2 Notational Descriptions Failure to activate a screen saver, or The following subsections describe a periodic screen refresh application notational conventions used in this may result in severe “burn-in” or “after- document. image” or “ghost image” symptoms that will not disappear and cannot be Notes, Cautions and Warnings repaired.

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails This marking on the product or on participation in national take-back...

  • Page 7: Setting Up The Monitor

    Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
  • Page 8 2. Setting up the monitor Warnings USB docking USB C Connecting to your PC USB C-C USB C-A + Driver HDMI-IN HDMI-OUT DC output Kensington anti-theft lock Fast Charger Audio output DisplayPort output USB fast charger USB downstream Ethernet DP OUT USB Type C input/Upstream Display port input HDMI input...
  • Page 9 The display must be powered ON at all installation: times to be able to use this function. 1. Install the LAN driver that matches Some select Philips displays may not your system. Power or Charge your device when it 2. Double click driver to install, and enters to “Sleep”...

  • Page 10: Operating The Monitor

    2. Setting up the monitor Note Access the OSD menu. Confirm the OSD If you turn off your monitor via the adjustment. power switch at any given time, all the USB ports will power OFF. Adjust the OSD menu. PowerSensor Warning USB 2.4Ghz wireless devices, such Change the signal input...
  • Page 11 On-Screen Display. You can use On-Screen Display (OSD) is a feature this as a reference when you want to in all Philips LCD monitors. It allows an work your way around the different end user to adjust screen performance adjustments later on.
  • Page 12 2. Setting up the monitor Resolution notification Height adjustment This monitor is designed for optimal performance at its native resolution, 1920 × 1080 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 ×...

  • Page 13: Remove The Base Assembly For Vesa Mounting

    2. Setting up the monitor Note 2.3 Remove the Base Assembly This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always monitor base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation.

  • Page 14: Built-In Windows Hello™ Pop-Up Webcam

    2 seconds, 3 times faster than a password. How to enable Windows Hello™ pop-up webcam? Philips monitor with Windows Hello USB C webcam can be enabled by simply connecting your USB cable from your PC to the “ USB C” port or “ USB up”...
  • Page 15 3. Built-in Windows Hello™ pop-up webcam Windows Hello. Once you've added this, the option for Hello will unlock. d. You'll now see which options are available to set up under Windows Hello. e. Click on "Get started." The setting is complete. Note 1.

  • Page 16: Usb Docking Display Introduction

    It can DisplayLink installation procedure: transmit video, audio, data, network, power through USB C cable. 1. Double click Setup.exe file which is available in CD disk or Philips website, supporting pages. USB C-C Note Ensure your source device compatible DP Alt Mode over the USB type C to C 2.
  • Page 17 4. USB docking display introduction system, the name of the monitor will be shown, it means the DisplayLink software installation is successful. 3. Click “Install”, then DisplayLink start Controlling the display to install, once it complete, click After the DisplayLink software is “Finish”...
  • Page 18 4. USB docking display introduction Setting Audio source Once USB C to A cable connects between the monitor and the device, this USB docking monitor audio becomes the default sound track output. 1. Click on the DisplayLink icon, then, click “Audio Setup” 2.
  • Page 19 “Enable”, now you can surf the internet. Power delivery This Philips monitor built-in DC OUT connector for Power delivering to your device up to 65W . To charge your devices, simply connect DC power cable from this monitor to...

  • Page 20: Image Optimization

    There are multiple selections: EasyRead, How does it work? Office, Photo, Movie, Game, Economy, LowBlue Mode and Off. SmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen.  Based on a scenario you select, ...
  • Page 21 Developed for wellbeing, outstanding clarity in vibrant colors Philips LowBlue Mode setting uses - all without artifacts and faded a smart software technology to colors. reduce harmful shortwave blue light.

  • Page 22: Smartcontrast

    5. Image Optimization 5.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.

  • Page 23: Powersensor

    6. PowerSensor™ detection signal for distances up to 6. PowerSensor™ 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even when the user is within 100 cm • PowerSensor works on principle or 40 inches of the display, step up of transmission and reception of...
  • Page 24 6. PowerSensor™ returned to its default Landscape position. Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength.

  • Page 25: Daisy-Chain Function

    Your display This Philips display is equipped with configurations will depend on your DisplayPort 1.2 interface which enables graphic card capabilities. Please check daisy-chaining to multiple displays.

  • Page 26: Technical Specifications

    8.Technical Specifications 8. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight Panel Size 23.8" W (60.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.275(H) mm x 0.275(V) mm Contrast Ratio (typ.) 1,000:1 Optimum Resolution 1920 × 1080 @ 60 Hz Viewing Angle 178°...
  • Page 27 8.Technical Specifications English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brazil Portuguese, OSD Languages Polish, Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount(100×100mm), Kensington Lock Plug & Play Compatibility DDC/CI, sRGB, Windows 10/8.1/8/7, Mac OS X Stand Tilt -5 / +30 degree...
  • Page 28 Finish Texture Note 1. EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.

  • Page 29: Resolution & Preset Modes

    8.Technical Specifications Display Link USB Monitor Support 8.1 Resolution & Preset Modes Timing Maximum Resolution H. freq Resolution V. freq 1920 × 1080 @ 75 Hz (digital input) (kHz) (Hz) 31.47 720 x 400/70 70.09 Recommended Resolution 1920 × 1080 @ 60 Hz (digital input) 31.47 640 x 480/60 59.94...

  • Page 30: Power Management

    9.Power Management 9. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.
  • Page 31 Pixel Defect Policy single black pixel. Other combinations of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the industry's most advanced...
  • Page 32 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off'. must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
  • Page 33 10.Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...

  • Page 34: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 35: Troubleshooting & Faqs

    • Contact with Philips customer • First, ensure that the power button service representative immediately. on the front of the monitor is in the...

  • Page 36: General Faqs

    Service contact information listed in images over an extended period Important information manual and may cause "burn in", also known as contact Philips customer service "after-imaging " or "ghost imaging", representative. on your screen. "Burn-in", "after- * Functionality different according to imaging", or "ghost imaging"...
  • Page 37 • Shut down your computer, that the panel surface is not disconnect your old monitor and subjected to excessive shocks reconnect your Philips LCD monitor. and is protected from sharp or • Turn on your monitor and then turn blunt objects. When handling the on your PC.
  • Page 38 Can I connect my LCD monitor to image” or “ghost image” symptoms any PC, workstation or Mac? that will not disappear and cannot be Ans.: Yes. All Philips LCD monitors are repaired. The damage mentioned above fully compatible with standard is not covered under your warranty.
  • Page 39 In that case, it may not recognize and block the Philips USB type C power charging function. This is not a fault of the Philips display.
  • Page 40 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
