Summary of Contents for Philips 24B2N3200J

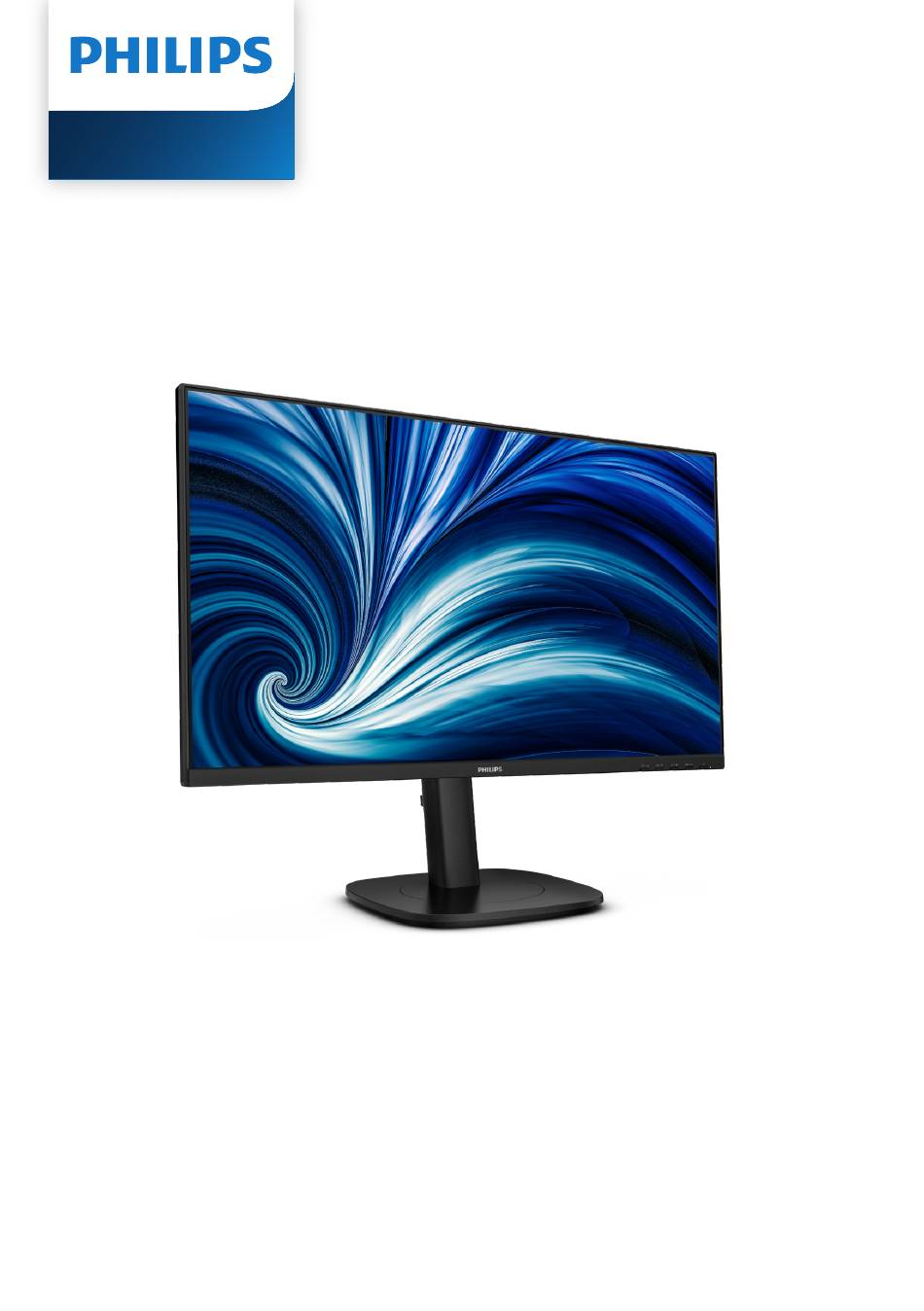

- Page 1 Business Monitor 3000 Series 24B2N3200J User manual Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
6.1 Resolution & Preset Modes ..19 7� Power Management ������������������ 20 8� Customer care and warranty ��� 21 8.1 Philips’ Flat Panel Displays Pixel Defect Policy ......... 21 8.2 Customer Care & Warranty ..24 9� Troubleshooting & FAQs ����������� 25 9.1 Troubleshooting ...... -
Page 3: Important
1. Important may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips • Remove any object that could fall monitor. Take time to read this user into ventilation holes or prevent manual before you use your monitor. - Page 4 maximum is exceeded, the monitor • Oil-based cleaning solutions may damage will not be covered under damage the plastic parts and void the warranty. warranty. • Do not knock or drop the • Unplug the monitor if you are not monitor during operation and/or going to use it for an extensive transportation.
-
Page 5: Notational Descriptions
1.2 Notational Descriptions of still or static images over an extended period may cause “burn- The following subsections describe the in”, also known as “after-imaging” or notational conventions used in this “ghost imaging”, on your screen. document. • “Burn-in”, “after-imaging”, or Notes, Cautions, and Warnings “ghost imaging”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take-... -
Page 7: 2� Setting Up The Monitor
3000 Series 24B2N3200J Quick Start 2. Hold the stand with both hands. Register your product and get support at www.philips.com/welcome (1) Gently attach the base to the stand. (2) Use your fingers to tighten the screw located at the bottom of the base, and secure the base to the stand tightly. - Page 8 Connecting to your PC Connect to PC 1. Connect the power cord to the back of the display firmly. AUDIO Fast Charger 2. Turn off your computer and unplug its power cable. 3. Connect the monitor signal cable to AUDIO D-SUB USB UP the video connector on the back of...
-
Page 9: Operating The Monitor
What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. - Page 10 SmartControl Contrast 0~100 software and is easily downloadable Sharpness 0~100 O , Fast, Faster, Fastest SmartResponse through the Philips website. What SmartContrast On, O does SmartControl do? It is an Gamma 1.8, 2.0, 2.2, 2.4, 2.6 Pixel Orbiting On, O...
- Page 11 Physical Function Warning Tilt • To avoid potential screen damage, such as panel peeling, ensure that the 30° monitor does not tilt downward by more than -5 degrees. -5° • Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
-
Page 12: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly 3. Press both corners of the VESA Cover and the other side of the cover will for VESA Mounting pop out. Before you start disassembling the display base, please follow the instructions below to avoid any possible damage or injury. - Page 13 0° 90° -5° * Display design may differ from those illustrated in this manual. Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. • Do not press the screen while adjusting the angle of the monitor.
-
Page 14: 3� Image Optimization
EasyRead, Office, Photo, Movie, Game, brightness, contrast, color, and sharpness Economy and Off. in real-time. Whether you're working with text applications, displaying images, or watching a video, Philips SmartImage delivers great monitor performance. Why do I need it? ... -
Page 15: Smartcontrast
3.2 SmartContrast - all without artifacts and faded colors. What is it? • Movie: Ramped up luminance, It is a unique technology that deepened color saturation, dynamic dynamically analyzes displayed content contrast, and razor sharpness and automatically optimizes a monitor's displays every detail in darker areas contrast ratio for maximum visual clarity of your videos without experiencing... -
Page 16: 4� Designs To Prevent Computer
• Reposition your screen to the appropriate measurment syndrome (CVS) according to your own height. 4. Choose a Philips monitor for viewing Philips monitor is designed to prevent that is easy on the eyes. eye strain caused by prolonged • Anti-glare screen: This feature computer use. -
Page 17: 5� Adaptive Sync
5. Adaptive Sync AMD Radeon R7 260X • AMD Radeon R7 260 • Processor A-Series Desktop and • Mobility APUs Adaptive Sync AMD A10-7890K • AMD A10-7870K • PC gaming has long had an imperfect AMD A10-7850K • experience because GPUs and monitors update at different rates. -
Page 18: Technical Specifications
6. Technical Specifications Picture/Display Display Panel Type IPS Technology Backlight W-LED Panel Size 23.8" W (60.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2745(H) x 0.2745(V) Contrast ratio(typical) 1500:1 Native Resolution 1920 x 1080 @ 60 Hz 1920 x 1080 @ 75 Hz (VGA) Maximum Resolution 1920 x 1080 @ 120 Hz (HDMI/DP) Viewing Angle... - Page 19 English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brasil Portuguese, Polish, OSD Languages Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount(100×100mm), Kensington Lock Plug & Play DDC/CI, Mac OS X, sRGB, Windows 11/10 Compatibility Stand Tilt...
- Page 20 100% PVC BFR free housing Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. The Power delivery function is also based on the PCs capabilities.
-
Page 21: Resolution & Preset Modes
6.1 Resolution & Preset Modes Note Please notice that your display works best at native resolution of 1920 x 1080 H. freq Resolution V. freq (Hz) @ 60Hz. For best display quality, please (kHz) follow this resolution recommendation. 31.47 720x400 70.09 31.47 640x480... -
Page 22: 7� Power Management
7. Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically. -
Page 23: 8� Customer Care And Warranty
8.1 Philips’ Flat Panel Displays colors. Pixel Defect Policy Types of Pixel Defects Philips strives to deliver the highest quality Pixel and sub-pixel defects appear on the products. We use some of the industry's screen in different ways. There are two... - Page 24 Note A red or bright blue dot must be more a TFT Monitor panel in a Philips flat panel than 50 percent brighter than neighboring monitor must have pixel or sub-pixel dots, while a bright green dot is 30 defects exceeding the tolerances listed in percent brighter than neighboring dots.
- Page 25 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 26: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 27: 9� Troubleshooting & Faqs
Disconnect the monitor from the be corrected by a user. If the problem mains power source immediately for persists after you have tried these safety solutions, contact a Philips customer • Contact Philips customer service service representative. representative immediately. Common Problems... -
Page 28: General Faqs
Service contact information listed in • Shut down your computer, the Important information manual disconnect your old monitor, and and contact a Philips customer service reconnect your Philips LCD monitor. representative. • Turn on your display and then turn * Functionality is different according to on your PC. - Page 29 What are the .inf and .icm files? Can I change the color setting of How do I install the drivers (.inf and my display? .icm)? Ans.: Yes, you can change your color Ans.: These are the driver files for your setting through OSD control as per monitor.
- Page 30 The any PC, workstation, or Mac? damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs, and workstations.
- Page 31 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
