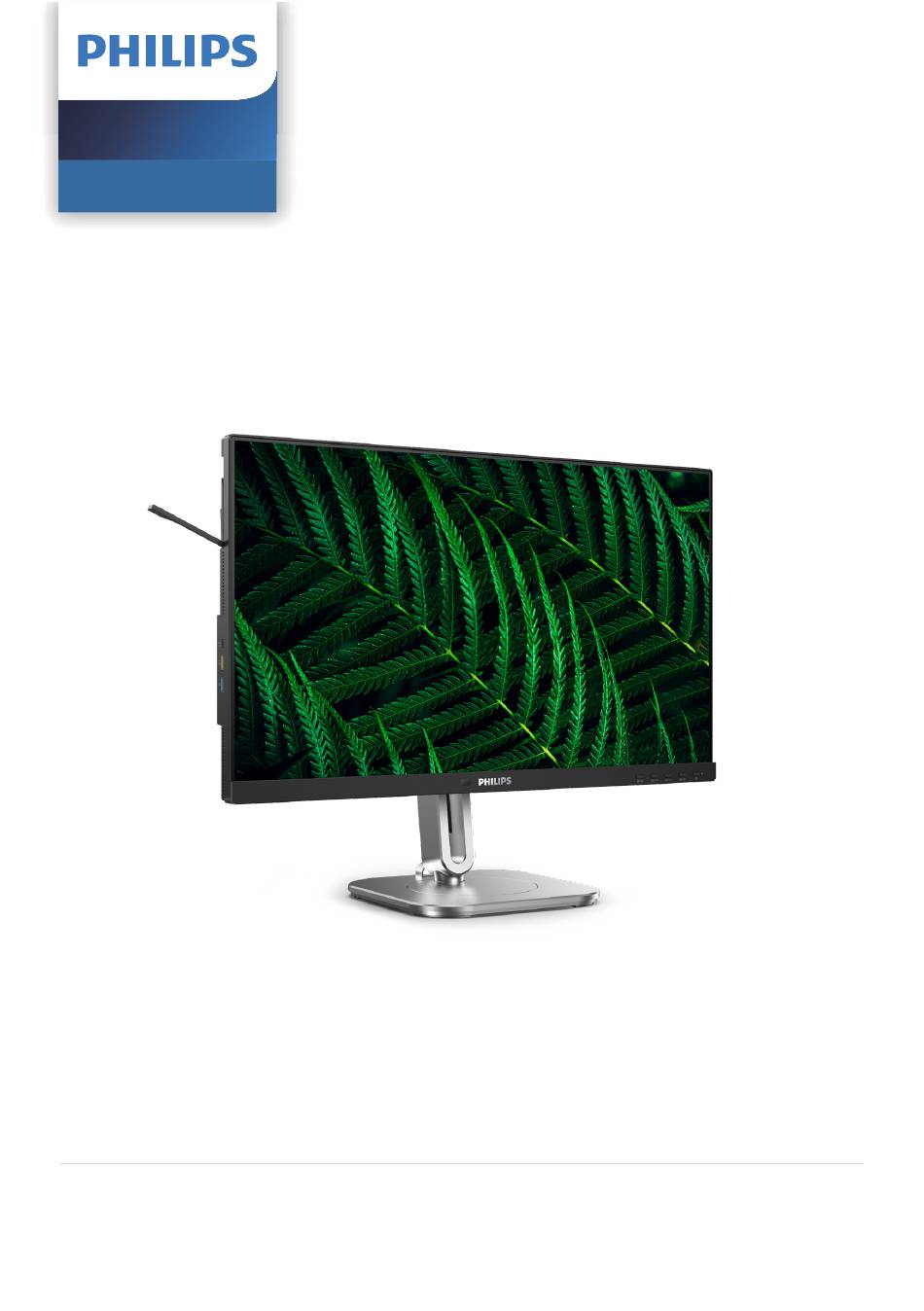

- Page 1 Business Monitor 5000 Series 24B2G5200 User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
- Page 2 8. Technical Specifications 19 8.1 Resolution & Preset Modes ..22 9 Power Management 23 10 Customer care and warranty 24 10.1 Philips’ Flat Panel Monitors Pixel Defect Policy ........ 24 10.2 Customer Care & Warranty ..27 11 Troubleshooting & FAQs 28 11.1 Troubleshooting .......
- Page 3 This electronic user’s guide is intended • When positioning the monitor, make for anyone who uses the Philips monitor. sure the power plug and outlet are Take time to read this user manual easily accessible. before you use your monitor. It contains •...
- Page 4 workstation than longer breaks and dry cloth when the power is off. less often; for example a 5-10 minute However, never use organic solvent, break after 50-60-minute continuous such as, alcohol, or ammonia-based screen use is likely to be better than liquids to clean your monitor.
- Page 5 1.2 Notational Descriptions in” or “after-imaging” or “ghost imaging” will disappear gradually The following subsections describe over a period of time after the power notational conventions used in this has been switched off. document. Warning Notes, Cautions and Warnings Failure to activate a screen saver, or a periodic screen refresh application may Throughout this guide, blocks of text may result in severe “burn-in”...
- Page 6 From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take- its packaging illustrates that, under...
- Page 7 Pay attention not to scratch or damage the screen. 2.1 Installation Package contents Business Monitor 5000 Series 24B2G5200 27B2G5200 27B2G5500 Quick Start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the Power stand.
- Page 8 Connecting to your PC Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable. 3 4 5 Fast Charger 3. Connect the monitor signal cable to the video connector on the back of your computer.
- Page 9 What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
- Page 10 Pixel Orbiting On, Off Over Scan On, Off and is easily downloadable through the Volume Audio 0~100 Philips website. What does SmartControl Stand-Alone On, Off Mute On, Off do? It is an additional software that Audio Source Audio In, HDMI, DisplayPort...
- Page 11 Swivel Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. • Do not press the screen while +180° adjusting the angle of the monitor. -180° Grasp only the bezel.
- Page 12 2.3 Remove the Base Assembly 3. Remove the VESA cover. for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 1. Place the monitor face down on a smooth surface.
- Page 13 Note This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. VESA Mounting Screw M4. Always contact manufacturer for wall-mount installation. 100mm 100mm 0° 90° -5° * Display design may differ from those illustrated. Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
- Page 14 Whether you're working There are multiple selections: EasyRead, with text applications, displaying images Office, Photo, Movie, Game, Economy, or watching a video, Philips SmartImage Off. delivers great optimized monitor performance. SmartImage Why do I need it?
- Page 15 • Photo: This profile combines color 3.2 SmartContrast saturation, dynamic contrast and What is it? sharpness enhancement to display photos and other images with Unique technology that dynamically outstanding clarity in vibrant colors - analyzes displayed content and all without artifacts and faded colors. automatically optimizes a Monitor's •...
- Page 16 4 PowerSensor™ • Since some dark colored clothing tends to absorb infrared signals even when the user is within 100 cm or 40 How does it work? inches of the display, step up signal strength when wearing black or • PowerSensor works on principle other dark clothes.
- Page 17 Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength.
- Page 18 5 LightSensor What is it? Light Sensor is a unique and intelligent way of optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Light Sensor uses a sensor to adjust the picture brightness depending on the room light conditions.
- Page 19 6 Adaptive Sync AMD Radeon R9 285 • AMD Radeon R7 260X • AMD Radeon R7 260 • ■ Processor A-Series Desktop and Adaptive Sync Mobility APUs PC gaming has long been an imperfect AMD A10-7890K • experience because GPUs and monitors AMD A10-7870K •...
- Page 20 • Reposition your screen to appropriate height and angle syndrome (CVS) according to your height. 4. Choose Philips monitor for easy-on- Philips monitor is designed to prevent eyes. eye strain caused by prolonged computer use. • Anti-glare screen: Anti-glare...
- Page 21 8 Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 23.8" W (60.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2745 (H) mm x 0.2745 (V) mm Contrast Ratio(typ.) 1500:1 Native Resolution 1920 x 1080 @ 60 Hz Maximum Resolution 1920 x 1080 @ 100 Hz Viewing Angle...
- Page 22 English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brazil Portuguese, Polish, Russian, OSD Languages Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount (100 x 100 mm), Kensington Lock Plug & Play DDC/CI, sRGB, Windows 11/10 , Mac OS X Compatibility Stand Tilt...
- Page 23 2. In order to update the monitor’s firmware to the latest version, Please download the SmartControl software from Philips website. It is necessary to be connected to a network when updating the firmware on SmartControl over-the-air (OTA).
- Page 24 1920 x 1080. For best display quality, please follow this resolution recommendation. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.
- Page 25 9 Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.
- Page 26 Pixel Defect Policy pixels of other colors. Philips strives to deliver the highest Types of Pixel Defects quality products. We use some of the Pixel and sub pixel defects appear on the industry's most advanced manufacturing screen in different ways.
- Page 27 Black Dot Defects the warranty period, a TFT Monitor panel Black dot defects appear as pixels or sub in a Philips flat panel monitor must have pixels that are always dark or 'off'. That is, pixel or sub pixel defects exceeding the a dark dot is a sub-pixel that stands out tolerances listed in the following tables.
- Page 28 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
- Page 29 Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
- Page 30 The Auto Function is not applicable in be corrected by a user. If the problem DVI-Digital mode as it is not necessary. still persists after you have tried these solutions, contact Philips customer service Visible signs of smoke or sparks representative. •...
- Page 31 For further assistance, refer to the Service turned off. contact information listed in Important • Uninterrupted display of still or static information manual and contact Philips images over an extended period may customer service representative. cause "burn-in", also known as "after- * Functionality different according to imaging"...
- Page 32 Shut down your computer, monitor, make sure that there is disconnect your old monitor and no pressure or force applied to reconnect your Philips LCD monitor. the panel surface side. This may • Turn on your monitor and then turn affect your warranty conditions.
- Page 33 The any PC, workstation or Mac? damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs and workstations.
- Page 34 Monitor control unlocked Monitor controls locked Q14: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 35 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
