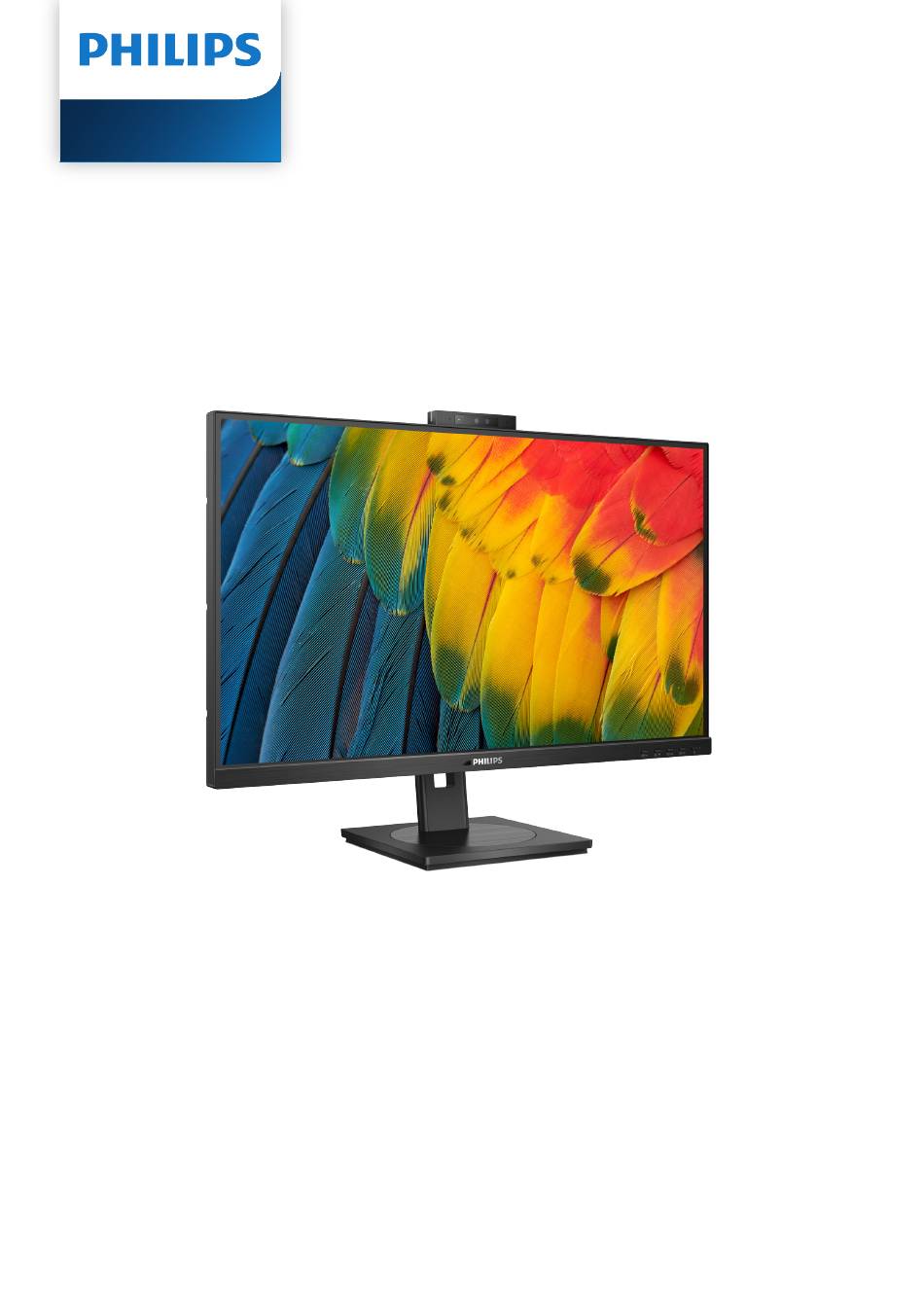

- Page 1 Business Monitor 5000 Series 24B1U5301H User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
(CVS) ��������������� 25 7� PowerSensor™ ����������������������������� 26 8. Technical Specifications ������������ 28 8.1 Resolution & Preset Modes ..31 9� Power Management ������������������ 32 10� Customer care and warranty ��� 33 10.1 Philips’ Flat Panel Displays Pixel Defect Policy ........33... -
Page 3: Important
1. Important may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips monitor. • Remove any object that could fall Take time to read this user manual into ventilation holes or prevent before you use your monitor. - Page 4 degrees. If the -5 degree downward Maintenance tilt angle maximum is exceeded, the • To protect your monitor from monitor damage will not be covered possible damage, do not put under warranty. excessive pressure on the LCD panel. • Do not knock or drop the monitor When moving your monitor, grasp during operation or transportation.
-
Page 5: Notational Descriptions
• Temperature: 0-40°C 32-104°F • Do not leave your monitor in a car/ trunk under direct sun light. • Humidity: 20-80% RH Note Important information for Burn-in/ Consult a service technician if the Ghost image monitor does not operate normally, or •... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-... -
Page 7: 2� Setting Up The Monitor
Package contents Business Monitor 5000 Series 24B1U5301H Quick start Register your product and get support at www.philips.com/welcome Power 2. Hold the stand with both hands. (1) Gently attach the base to the stand. (2) Use your fingers to tighten the... - Page 8 DP out connector. USB C driver installation for RJ45 Before using the USB C docking display, please ensure to install the USB C driver. You can go to Philips website support USB Type-A USBC1 USBC2 page to download the “LAN Drivers”.
- Page 9 driver. Note Please contact Philips service hotline for Mac address clone tool as necessary. USB hub Note To comply with International energy If you Turn OFF your monitor via the...
-
Page 10: Operating The Monitor
2.2 Operating the monitor Description of the control buttons Webcam Switch monitor’s power ON OFF. Access the OSD menu. Confirm the OSD adjustment. Adjust the OSD menu. Microphone User preference key. Customize your own preference function from Webcam activity light OSD to become the “user key”. - Page 11 This hot key allows you to setup your What is On-Screen Display (OSD)? favorite function key. On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end 1. Press button on the front bezel user to adjust screen performance or to enter OSD Menu Screen.
- Page 12 Resolution notification Note This monitor is designed for optimal If this display has "DPS" for ECO design, performance at its native resolution, the default setting is "ON" mode: it 1920 x 1080. When the monitor is makes the screen looks slightly dim; for powered on at a different resolution, optimum brightness, enter to the OSD an alert is displayed on screen: Use 1920...
- Page 13 Pivot Physical Function Tilt 30° -5° 0° 0° -90° 90° Swivel Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. +180° • Do not press the screen while adjusting the angle of the monitor.
-
Page 14: Built-In Windows Hello™ Pop-Up Webcam
1. Press the built-in webcam on the top of this monitor, and turn it to the What is it? front. Philips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is... - Page 15 4. If you connect the USB cable from “USB C1 ” port of this monitor, please enter OSD menu to make a appropriate selection of “USB C1” under the “KVM” layer. ...
-
Page 16: Multiclient Integrated Kvm
With the built-in MultiClient Integrated KVM, Philips monitor allows to quickly switch your peripherals back and forth between in two devices through the OSD menu setting. Use DP and HDMI as input then use USB Use USBC and HDMI or DP as input, C as USB upstream. -
Page 17: Noise Cancelling
2.5 Noise Cancelling 2. Connect peripherals to the USB downstream port of this monitor. This monitor has Noise Cancelling functionality. When connected via USBC1/USBC2 during video PC1/PC2 conferencing, the monitor will automatically filter for human sounds. USBC2 USBC1 This function can be turned off in the OSD menu, under Noise Cancelling (default=ON). -
Page 18: Multiview
5. Now you can move backward to set the [PIP / PBP Input], [PIP Size], [PIP Why do I need it? Position], or [Swap]. With the ultra high resolution Philips 6. Press button to confirm your MultiView display, you can experience a selection. - Page 19 [PBP]: Picture by Picture • PIP Position: When PIP is activated, there are four sub-window positions Open up a sub-window to choose. side-by-side of another (main) Top-Left Top-Right signal source. When the sub source is (main) (main) not detected: (main) Bottom-Left Bottom-Right Note...
-
Page 20: Remove The Base Assembly For Vesa Mounting
2.7 Remove the Base Assembly Note for VESA Mounting This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always monitor base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation. -
Page 21: 3� Image Optimization
There are multiple modes to select: in real time. Whether you're working EasyRead, Office, Photo, Movie, Game, with text applications, displaying images Economy, LowBlue Mode, Off. or watching a video, Philips SmartImage delivers great optimized display performance. Why do I need it? You want a display that delivers ... -
Page 22: Smartcontrast
Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light. • Off: No optimization by SmartImage. Note Philips LowBlue mode, mode 2 compliance with TUV Low Blue Light certification, you can have this mode... -
Page 23: Lightsensor
3.3 LightSensor What is it? Light Sensor is a unique and intelligent way of optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Light Sensor uses a sensor to adjust the picture brightness depending on the room light conditions. -
Page 24: 4� Power Delivery And Smart
What is it? power delivery depends on the brightness value of the monitor. Smart Power is an exclusive Philips You may adjust the brightness value technology that provides flexible power manually to increase power delivery delivery options for various devices. -
Page 25: 5� Daisy-Chain Function
5. Daisy-chain function DisplayPort multi-streaming over USBC1 DisplayPort Multi-Stream feature enables multiple monitor connections. This Philips display is equipped with DisplayPort interface and DisplayPort over USBC1 which enables daisy- USBC1 DP OUT DP IN chaining to multiple displays. Now you can daisy chain and use... - Page 26 Note The secondary monitor in the chain must support DisplayPort multi-streaming, and the maximum resolution support is 1920 x 1080@60Hz.
-
Page 27: 6� Designs To Prevent Computer
• Reposition your screen to appropriate height and angle syndrome (CVS) according to your height. 4. Choose Philips monitor for easy-on- Philips monitor is designed to prevent eyes. eye strain caused by prolonged • Anti-glare screen: Anti-glare computer use. -
Page 28: 7� Powersensor
7. PowerSensor™ from the monitor use the maximum detection signal for distances up to 120 cm or 47 inches. (Setting 4) How does it work? • Since some dark colored clothing • PowerSensor works on principle tends to absorb infrared signals even of transmission and reception of when the user is within 100 cm or 40 inches of the display, step up signal... - Page 29 mode (90 degree/vertical position); it will automatically turn ON if monitor is returned to its default Landscape position. Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength.
-
Page 30: Technical Specifications
8. Technical Specifications Picture/Display Display Panel Type IPS Technology Backlight W-LED Panel Size 23.8" W (60.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2745 (H) x 0.2745 (V) Contrast ratio(typical) 1000:1 Native Resolution 1920 x 1080 @ 60 Hz Maximum Resolution 1920 x 1080 @ 75 Hz Viewing Angle 178°... - Page 31 Convenience USER convenience Built-in speaker 5 W x 2 5.0 megapixel webcam with microphone and LED Built-in Webcam indictor (for Windows Hello) MultiView PIP/PBP mode, 2×devices English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brasil Portuguese, Polish, OSD Languages Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean...
- Page 32 The USB-C port USBC1 provides data, video transfer, and power delivery 90W. The USB-C port USBC2 provides upstream data transfer only. Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. Power delivery function will base on laptop's capability.
-
Page 33: Resolution & Preset Modes
8.1 Resolution & Preset Modes connecting to USB C or DP port, please adjust resolution to the optimal state: 1920 x 1080 @ 60Hz H. freq Resolution V. freq (Hz) from your PC. (kHz) 2. The factory default setting HDMI 31.47 720 x 400 70.09... -
Page 34: 9� Power Management
9. Power Management If you have VESA DPM compliance display card or software installed in your PC, the display can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the display will 'wake up' automatically. -
Page 35: 10� Customer Care And Warranty
Other combinations of Pixel Defect Policy lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 36 Black Dot Defects the warranty period, a TFT Display panel Black dot defects appear as pixels or sub in a Philips flat panel display must have pixels that are always dark or 'off'. That pixel or sub pixel defects exceeding the is, a dark dot is a sub-pixel that stands tolerances listed in the following tables.
- Page 37 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 38: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 39: 11� Troubleshooting & Faqs
• Disconnect the display from mains solutions, contact Philips customer power source immediately for safety service representative. • Contact with Philips customer service Common Problems representative immediately. No Picture (Power LED not lit) Imaging Problems • Make sure the power cord is... -
Page 40: General Faqs
1920 x 1080. contact information listed in Important • Shut down your computer, information manual and contact Philips disconnect your old display and customer service representative. reconnect your Philips LCD display. * Functionality different according to • Turn on your display and then turn display. - Page 41 6504K. hexane, etc. Can I connect my LCD display to any PC, workstation or Mac? Ans.: Yes. All Philips LCD displays are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter...
- Page 42 Philips sales representative for jagged characters? more information. Ans.: Your LCD display works best at its native resolution of 1920 x 1080. Q10: Are Philips LCD displays Plug-and- For best display, please use this Play? resolution. Ans.: Yes, the displays are Plug-and-...
- Page 43 and change Auto to OFF and then select DP (DisplayPort) input. This will allow the signal to pass through to the next monitor. Both monitors should begin displaying properly. 2) Disconnect the video cable between the first and second monitor, then connect the second monitor directly to the computer.
-
Page 44: Multiview Faqs
11.3 Multiview FAQs Can I enlarge the PIP sub window? Ans.: Yes, there are 3 sizes to select: [Small], [Middle], [Large]. You can press to enter OSD menu. Select your preferred [PIP Size] option from the [PIP / PBP] main menu. How to listen to Audio, independent of video? Ans.: Normally the audio source is linked... - Page 45 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
