Baxton Studio Genesis 389C Assembly Instruction

ASSEMBLY INSTRUCTION
Read this instruction carefully. Remove all wrapping material, staples and straps
from the carton. See hardware and furniture part list for guidance. Be sure you
have all wooden furniture parts on a clean and flat soft surface, such as a carpet
or rug, to prevent from being scratched.Follow the figure to start assembling.
CAUTION :
1. Do not FULLY - TIGHTEN the nut or screw untill all is ready to assemble.
2. Do not OVER - TIGHTEN the nut or screw to avoid causing damages to the
thread.
3. Keep all hardware part out reach of children.
STEP 1
Attached C to B according to
the hole and tighten it using
hardware number 1,2,4, and 5 .
1
4
2
C
B
STEP 2
Align the whole part from STEP1
to A . Tighten the part of C and
A using hardware number 1,4
and 5 .
A
5
A
4
C
C
NO PART LIST
A BACK REST
B FRONT LEG
SIDE RAIL
C
D CUSHION SEAT
STEP 3
Stick D to the whole assemble
part and fully-tighten it with
hardware number 3 .
C
1
5
QTY NO DESCRIPTION
1 PC
1 JCBC SCREW M6 X 50MM
1 PC 2 WOOD DOWEL Ø8 x 30MM
2 PCS
3 CSK SCREW M4 x 30MM
1 PC
SPRNG WASHER M6
4
M4 ALLEN KEY
5
STEP 4
3 X 3PCS

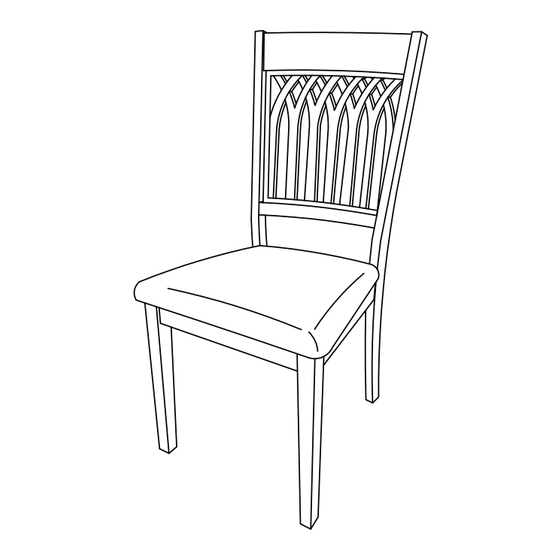

COMPLETE ASSEMBLE
D
MODEL : 389C
QTY
6 PCS
4 PCS
3 PCS
6 PCS
1 PC
