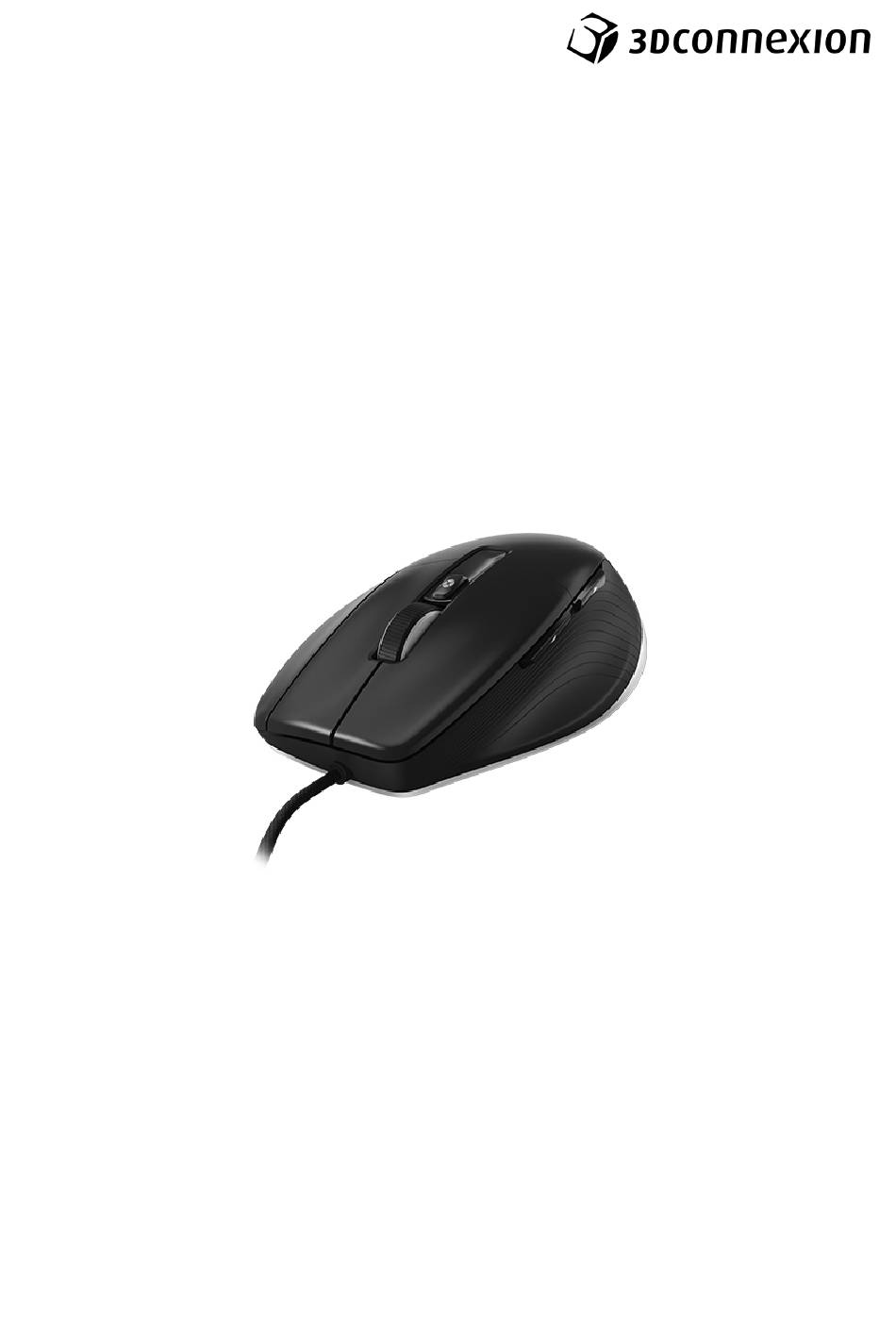

- Page 1 Manual 3Dconnexion CadMouse Pro ® Driver Version: 3DxWare 10.8.15 and higher...
- Page 2 Table of Content QuickStart Guide ........................3 Desktop Setup ....................................3 Installation ......................................3 Feature Guide ........................... 4 3Dconnexion CadMouse Pro ................................4 3Dconnexion Settings ........................ 6 Advanced Settings ..................................... 7 Buttons ......................................8 Assigning Quick Macros to buttons ..............................8 Assigning Commands using the flyout window ...........................
- Page 3 Connect your 3Dconnexion CadMouse Pro to an USB port of your computer. 2. Download the latest 3Dconnexion software Before starting the installation, make sure you have the latest 3Dconnexion software (3DxWare), which can be downloaded at 3dconnexion.com/drivers. 3. Install the 3Dconnexion software Install the 3Dconnexion software by following the instructions.
- Page 4 Internet browsers: Use the Middle Mouse Button to open a link in a new tab. To close a tab, simply click on it with the Middle Mouse Button. Other applications: Use the 3Dconnexion Settings to assign your most frequently used commands to the Middle Mouse Button. Format Painter...
- Page 5 Text or spreadsheet applications: Use the Thumbs Buttons to quickly jump to the beginning or end of a document. Internet browsers: While browsing you can easily jump forward or backward between web pages with the Thumb Buttons. Other applications: Facilitate your work and use the 3Dconnexion Settings to assign your most frequently used commands to the Thumb Buttons.
- Page 6 The name of the active application is displayed at the top of the panel. Any setting change is relevant to this application only. If multiple 3Dconnexion devices are connected, you can select the desired product to configure by clicking on the flyout button at the top left of the panel.
- Page 7 One page / one screen: Moving the mouse wheel 1 increment will scroll to the next/previous page. Smart Scrolling Adjustable smart scrolling speed with inertia in documents and browsers is ideal for working in many-paged documents, allowing the user to find specific pages quickly and easily. 3Dconnexion CadMouse Pro | 7...
- Page 8 Buttons The Buttons panel within 3Dconnexion Settings allows you to assign commands, macros or radial menus to the programmable CadMouse Buttons. The name of the active application is displayed at the top of the panel. Any changes you make to CadMouse Pro settings are relevant to this application only.
- Page 9 The category of the command that it is currently assigned to is highlighted in bold. The flyout window allows you to browse or search for commands in different categories such as 3Dconnexion or application commands. When you select a command by clicking on it, it is automatically assigned to the CadMouse button.
- Page 10 The sequence of your macro is editable by dragging the single steps into the right order or deleting steps that are not needed. When you are done editing your macro, click save to automatically assign the new macro to the button from where you opened the panel. 3Dconnexion CadMouse Pro | 10...
- Page 11 When creating a new radial menu as a second step you have the option to choose between a four and an eight-section layout. Assign commands or macros to the different sections and save your radial menu. Your new radial menu will be automatically assigned to the button from where you opened the panel. 3Dconnexion CadMouse Pro | 11...
- Page 12 3Dconnexion Home Once you have successfully installed the latest 3Dconnexion driver, 3Dconnexion Home gives you access to various 3Dconnexion apps: Trainer: Learn how to quickly use the 3Dconnexion SpaceMouse. Manual: Here you can find the manuals for all 3Dconnexion products.
- Page 13 Weight: 110 g / 0.24 lb / 3.88 oz Supported Operating Systems Microsoft Windows, macOS ® More information Supported Software More information Package Contents 3Dconnexion CadMouse Pro Part Numbers Packaging unit numbers (on packaging): 3DX-700080 Part number (on device): 3DX-600067 3Dconnexion CadMouse Pro | 13...
- Page 14 Safety, Compliance and Warranty Information Manufacturer 3Dconnexion GmbH Clarita-Bernhard-Straße 18 81249 Munich Germany Certifications and Registrations CE, UKCA, EAC, FCC, KC, RCM, BSMI, WEEE, RoHS-EU, RoHS-CN More information Warranty 3-years limited hardware warranty Support 3dconnexion.com/support 3Dconnexion CadMouse Pro | 14...
