- Page 1 Manual SpaceMouse Wireless ® Bluetooth Edition ® Driver Version: 3DxWare 10.8.17 and higher...
-
Page 2: Table Of Contents
QuickStart Guide ........................3 Desktop Setup ....................................3 Hand Position ....................................3 Installation ......................................3 Feature Guide ........................... 4 3Dconnexion SpaceMouse Wireless ..............................4 3Dconnexion Settings ........................ 6 Advanced Settings ..................................... 7 Application Specific Advanced Settings .............................. 7 Buttons ......................................9 Assigning Quick Macros to buttons .............................. -
Page 3: Quickstart Guide
Desktop Setup Place the SpaceMouse Wireless on the opposite side of the keyboard to your standard mouse. One hand engages the 3D mouse to position your model: rotating, panning and zooming. The other hand uses the standard mouse to select, create and edit. -
Page 4: Feature Guide

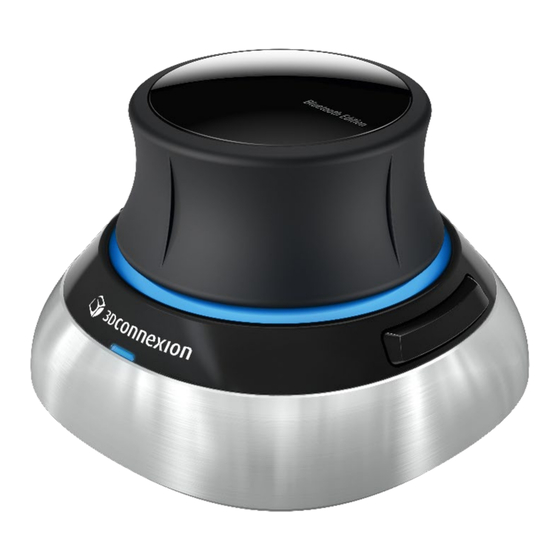

Controller Cap The Controller Cap is the heart of your SpaceMouse Wireless. Its Six-Degrees-of-Freedom (6DoF) sensor allows you to push, pull, rotate, or tilt to pan, zoom and rotate your drawings and 3D models. The SpaceMouse has different motion profiles depending on the application you are using. - Page 5 Charge your SpaceMouse Wireless When the status LED of your SpaceMouse Wireless turns red, it has less than 10% battery power left and should be charged. Connect your SpaceMouse Wireless to a charging port of your computer by using the included USB cable. As long as the SpaceMouse Wireless is charging, the status LED will pulse green, and it will turn solid green when it is fully charged.
-
Page 6: 3Dconnexion Settings
This slider sets the overall speed for your device. In other words, it changes the amount of force or torque that needs to be applied to the SpaceMouse cap to move an object, scene, or image. If multiple 3Dconnexion devices are connected, you can select the desired product to configure by clicking on the flyout button at the top left of the panel. -
Page 7: Advanced Settings
Use the slider to set the speed for each of the 6-Dimensions-of-Freedom individually. To reverse the direction of a movement, check the Reverse box for that movement. Application Specific Advanced Settings Some applications feature additional SpaceMouse settings. For those applications you have additional options available in the Advanced Settings Panel: 3Dconnexion SpaceMouse Wireless | 7... - Page 8 Hide will disable the Rotation Center visualization. Other Options The applications below feature special options. More information can be found in the 3Dconnexion FAQ: Autodesk 3ds Max, Autodesk Maya, Autodesk Revit, Cinema 4D, Solid Edge, SOLIDWORKS, Unity, Unreal Engine 3Dconnexion SpaceMouse Wireless | 8...
-
Page 9: Buttons
Buttons The Buttons panel within 3Dconnexion Settings allows you to assign commands, macros or, radial menus. The name of the active application is displayed at the top of the panel. Any setting change is relevant to this application only. A note about Environment sensitivity: Some applications feature environment sensitive key mapping. In those applications, you can have different key assignments depending on the currently active environment. -
Page 10: Assigning Commands Using The Flyout Window
Creating Macros and Radial Menus To create a new macro or radial menu, first click on the > arrow on the right of the key field, then expand the Macro/Radial Menu category and click on New Macro/New Radial Menu. 3Dconnexion SpaceMouse Wireless | 10... - Page 11 The sequence of your macro is editable by dragging the single steps into the right order or deleting steps that are not needed. When you are done editing your macro, click save to automatically assign the new macro to the button from where you opened the panel. 3Dconnexion SpaceMouse Wireless | 11...
- Page 12 When creating a new radial menu as a second step you have the option to choose between a four and an eight-section layout. Assign commands or macros to the different sections and save your radial menu. Your new radial menu will be automatically assigned to the button from where you opened the panel. 3Dconnexion SpaceMouse Wireless | 12...
-
Page 13: 3Dconnexion Home
3Dconnexion Home Once you have successfully installed the latest 3Dconnexion driver, 3Dconnexion Home gives you access to various 3Dconnexion apps: Trainer: Learn how to quickly use the 3Dconnexion SpaceMouse. Manual: Here you can find the manuals for all 3Dconnexion products. -
Page 14: Technical Specifications
Supported Operating Systems Microsoft Windows, macOS More information Supported Software More information Package Contents 3Dconnexion SpaceMouse Wireless Bluetooth Edition Carry case 3Dconnexion Universal Receiver Cable USB-A / USB-C (1.5m) Part Numbers Packaging unit number (on packaging):... -
Page 15: Safety, Compliance And Warranty Information
CE, UKCA, EAC, FCC, IC, MIC, KC, RCM, BSMI, NCC, WEEE, RoHS-EU, RoHS-CN More information Warranty 3-years limited hardware warranty Radio Frequency Information Frequency band(s): 2404 - 2477 MHz Maximum radio-frequency power: 0DBM Battery Warning More information Support 3dconnexion.com/support © 3Dconnexion ® 3Dconnexion SpaceMouse Wireless | 15...
