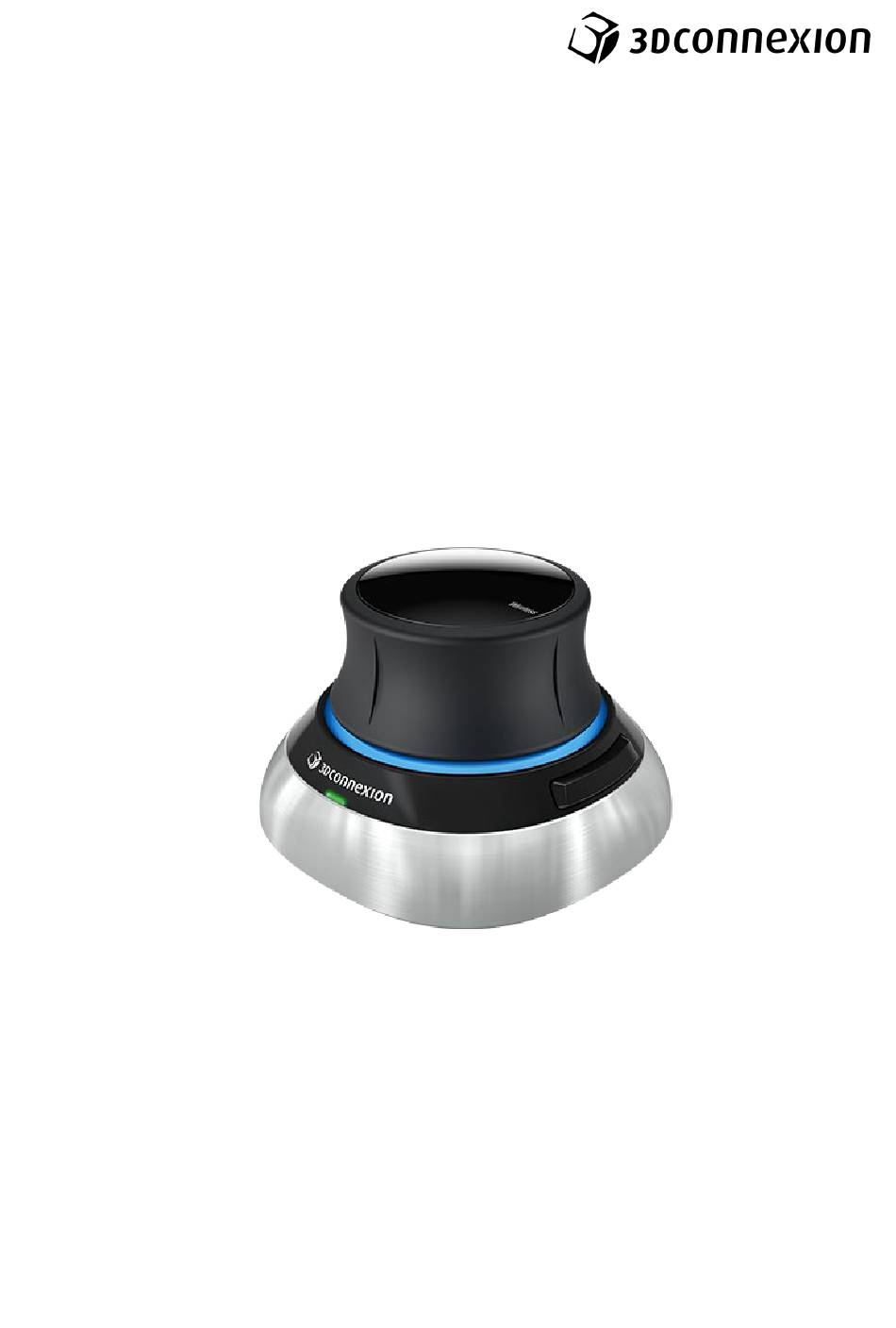

- Page 1 Manual 3Dconnexion SpaceMouse Wireless ® Driver Version: 3DxWare 10.8.0 and higher...
-
Page 2: Table Of Contents
QuickStart Guide ..........................3 Desktop Setup ....................................3 Hand Position ....................................3 Installation ......................................3 Feature Guide ............................. 4 3Dconnexion SpaceMouse Wireless ..............................4 3Dconnexion Settings .......................... 6 Advanced Settings ..................................... 7 Application Specific Advanced Settings .............................. 7 Buttons ......................................9 Assigning Quick Macros to buttons .............................. -
Page 3: Quickstart Guide
Make sure you have the latest 3Dconnexion software (3DxWare) installed. The latest version can be downloaded at 3dconnexion.com/drivers. 4. Familiarize with your SpaceMouse Wireless Open 3Dconnexion Home and launch the Trainer to get help taking the first steps with your SpaceMouse Wireless. 3Dconnexion SpaceMouse Wireless | 3... -
Page 4: Feature Guide
The SpaceMouse Wireless features two additional programmable function buttons, located on its socket. It instantly recognizes the applications you are using, as well as their environments, and automatically assigns the most used commands to the buttons. You can personalize commands assigned to the function buttons using the 3Dconnexion Settings. 3Dconnexion SpaceMouse Wireless | 4... - Page 5 Receiver from your computer, before you can pair it with the Keyboard Pro. Pairing via the 3Dconnexion Keyboard Pro: Access the Windows start menu and launch the 3Dconnexion Pairing tool. Now press Add device and follow the instructions of the 3Dconnexion Pairing tool to connect your SpaceMouse Wireless with your Keyboard Pro.
-
Page 6: 3Dconnexion Settings
This slider sets the overall speed for your device. In other words, it changes the amount of force or torque that needs to be applied to the SpaceMouse cap to move an object, scene, or image. If multiple 3Dconnexion devices are connected, you can select the desired product to configure by clicking on the flyout button at the top left of the panel. -
Page 7: Advanced Settings
Use the slider to set the speed for each of the 6-Dimensions-of-Freedom individually. To reverse the direction of a movement, check the Reverse box for that movement. Application Specific Advanced Settings Some applications feature additional SpaceMouse settings. For those applications you have additional options available in the Advanced Settings Panel: 3Dconnexion SpaceMouse Wireless | 7... - Page 8 Show on Motion will visualize the Rotation Center only during movement. Hide will disable the Rotation Center visualization. Other Options The applications below feature special options. More information can be found in the 3Dconnexion FAQ: Autodesk 3ds Max, Autodesk Maya, Solid Edge, SOLIDWORKS 3Dconnexion SpaceMouse Wireless | 8...
-
Page 9: Buttons
Buttons The Buttons panel within 3Dconnexion Settings allows you to assign commands, macros or, radial menus. The name of the active application is displayed at the top of the panel. Any setting change is relevant to this application only. A note about Environment sensitivity: Some applications feature environment sensitive key mapping. In those applications, you can have different key assignments depending on the currently active environment. -
Page 10: Assigning Commands Using The Flyout Window
This opens the macro editor where you can assign a name for your macro and a sequence of keystrokes in the corresponding fields. Clicking on Save will automatically assign the new macro to the button from where you opened the panel. 3Dconnexion SpaceMouse Wireless | 10... -
Page 11: Creating Radial Menus
This brings up the radial menu editor where you can assign a name and commands to the different sections. Your new radial menu will be automatically assigned to the key from where you opened the panel. 3Dconnexion SpaceMouse Wireless | 11... -
Page 12: 3Dconnexion Home
3Dconnexion Home Once you have successfully installed the latest 3Dconnexion driver, 3Dconnexion Home gives you access to various 3Dconnexion apps: Trainer: Learn how to quickly use the 3Dconnexion SpaceMouse. Manuals: Here you can find the manuals for all 3Dconnexion products. -
Page 13: Technical Specifications
More information Package Contents 3Dconnexion SpaceMouse Wireless Carry case 3Dconnexion Universal Receiver 3Dconnexion Cable USB-A / USB-Micro (1.5m) Certifications and Registrations CE, FCC (Class B), BSMI, KCC, WEEE, WHQL More information Warranty 2-years limited hardware warranty Support 3dconnexion.com/support...
