Summary of Contents for 3DConnexion 3DX-700119

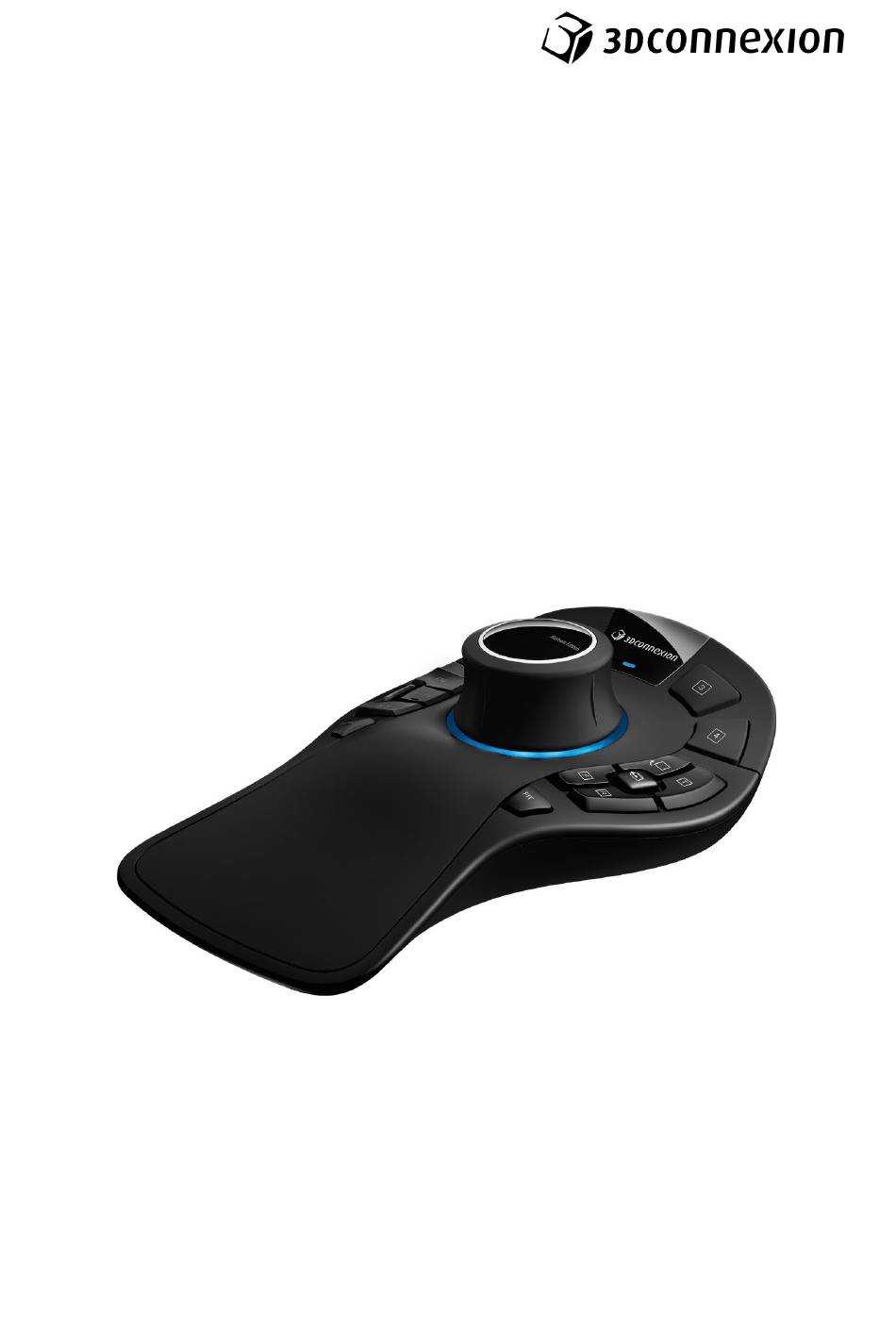

- Page 1 Manual SpaceMouse Pro Wireless ® Bluetooth Edition Driver Version: 3DxWare 10.8.15 and higher...
- Page 2 QuickStart Guide ........................ 3 Desktop Setup ....................................3 Hand Position ....................................3 Installation ......................................3 Feature Guide ........................4 3Dconnexion SpaceMouse Pro Wireless ............................. 4 3Dconnexion Settings ......................7 Advanced Settings ..................................... 8 Application Specific Advanced Settings .............................. 8 Buttons ......................................10 Assigning Quick Macros to buttons ..............................
- Page 3 Make sure you have the latest 3Dconnexion software (3DxWare) installed. The latest version can be downloaded at 3dconnexion.com/drivers. 4. Learn how to use your SpaceMouse Pro Wireless Open 3Dconnexion Home and launch the Trainer to get help taking the first steps with your SpaceMouse Pro Wireless. 3Dconnexion SpaceMouse Pro Wireless | 3...
- Page 4 Pro Wireless. Menu Button The Menu Button allows for fast and easy customization of your 3Dconnexion devices. Pressing it will take you directly to the 3Dconnexion Settings. Select the device you want to configure in the flyout window and customize it.
- Page 5 The SpaceMouse Pro Wireless offers an On-Screen Display (OSD) that shows you the current assignment of the 3Dconnexion buttons. To display the OSD of your SpaceMouse Pro Wireless, press and hold any of the 3Dconnexion Buttons. It will be displayed as long as you keep the button pressed. This function can be disabled in the 3Dconnexion Settings.
- Page 6 Pairing via the 3Dconnexion Keyboard Pro: Access the Windows start menu and launch the 3Dconnexion Pairing tool. Now press Add device and follow the instructions of the 3Dconnexion Pairing tool to connect your SpaceMouse Pro Wireless with your Keyboard Pro.
- Page 7 This slider sets the overall speed for your device. In other words, it changes the amount of force or torque that needs to be applied to the SpaceMouse cap to move an object, scene, or image. If multiple 3Dconnexion devices are connected, you can select the desired product to configure by clicking on the flyout button at the top left of the panel.
- Page 8 Use the slider to set the speed for each of the 6-Dimensions-of-Freedom individually. To reverse the direction of a movement, check the Reverse box for that movement. Application Specific Advanced Settings Some applications feature additional SpaceMouse settings. For those applications you have additional options available in the Advanced Settings Panel: 3Dconnexion SpaceMouse Pro Wireless | 8...
- Page 9 Show on Motion will visualize the Rotation Center only during movement. Hide will disable the Rotation Center visualization. Other Options The following applications feature special options: Autodesk 3ds Max, Autodesk Maya, Solid Edge, SOLIDWORKS. More information can be found in the 3Dconnexion FAQ. 3Dconnexion SpaceMouse Pro Wireless | 9...
- Page 10 Any setting change is relevant to this application only. Press and hold a 3Dconnexion Button to get the button assignment for the current app displayed on the OSD. To disable this function, check Disable On-Screen Display.
- Page 11 To create a new macro or radial menu, first click on the > arrow on the right of the key field, then expand the Macro/Radial Menu category and click on New Macro/New Radial Menu. 3Dconnexion SpaceMouse Pro Wireless | 11...
- Page 12 The sequence of your macro is editable by dragging the single steps into the right order or deleting steps that are not needed. When you are done editing your macro, click save to automatically assign the new macro to the button from where you opened the panel. 3Dconnexion SpaceMouse Pro Wireless | 12...
- Page 13 When creating a new radial menu as a second step you have the option to choose between a four and an eight-section layout. Assign commands or macros to the different sections and save your radial menu. Your new radial menu will be automatically assigned to the button from where you opened the panel. 3Dconnexion SpaceMouse Pro Wireless | 13...
- Page 14 3Dconnexion Home Once you have successfully installed the latest 3Dconnexion driver, 3Dconnexion Home gives you access to various 3Dconnexion apps: Trainer: Learn how to quickly use the 3Dconnexion SpaceMouse. Manual: Here you can find the manuals for all 3Dconnexion products.
- Page 15 Supported Operating Systems Microsoft Windows, macOS More information Supported Software More information Package Contents 3Dconnexion SpaceMouse Pro Wireless Bluetooth Edition Carry case 3Dconnexion Universal Receiver 3Dconnexion Cable USB-A / USB-C (1.5m) Part Numbers Packaging unit number (on packaging):...
- Page 16 CE, UKCA, EAC, FCC, IC, MIC, KC, RCM, BSMI, NCC, WEEE, RoHS-EU, RoHS-CN More information Warranty 3-years limited hardware warranty Radio Frequency Information Frequency band(s): 2404 - 2477 MHz Maximum radio-frequency power: 0DBM Battery Warning More information Support 3dconnexion.com/support 3Dconnexion SpaceMouse Pro Wireless | 16 © 3Dconnexion ®...
