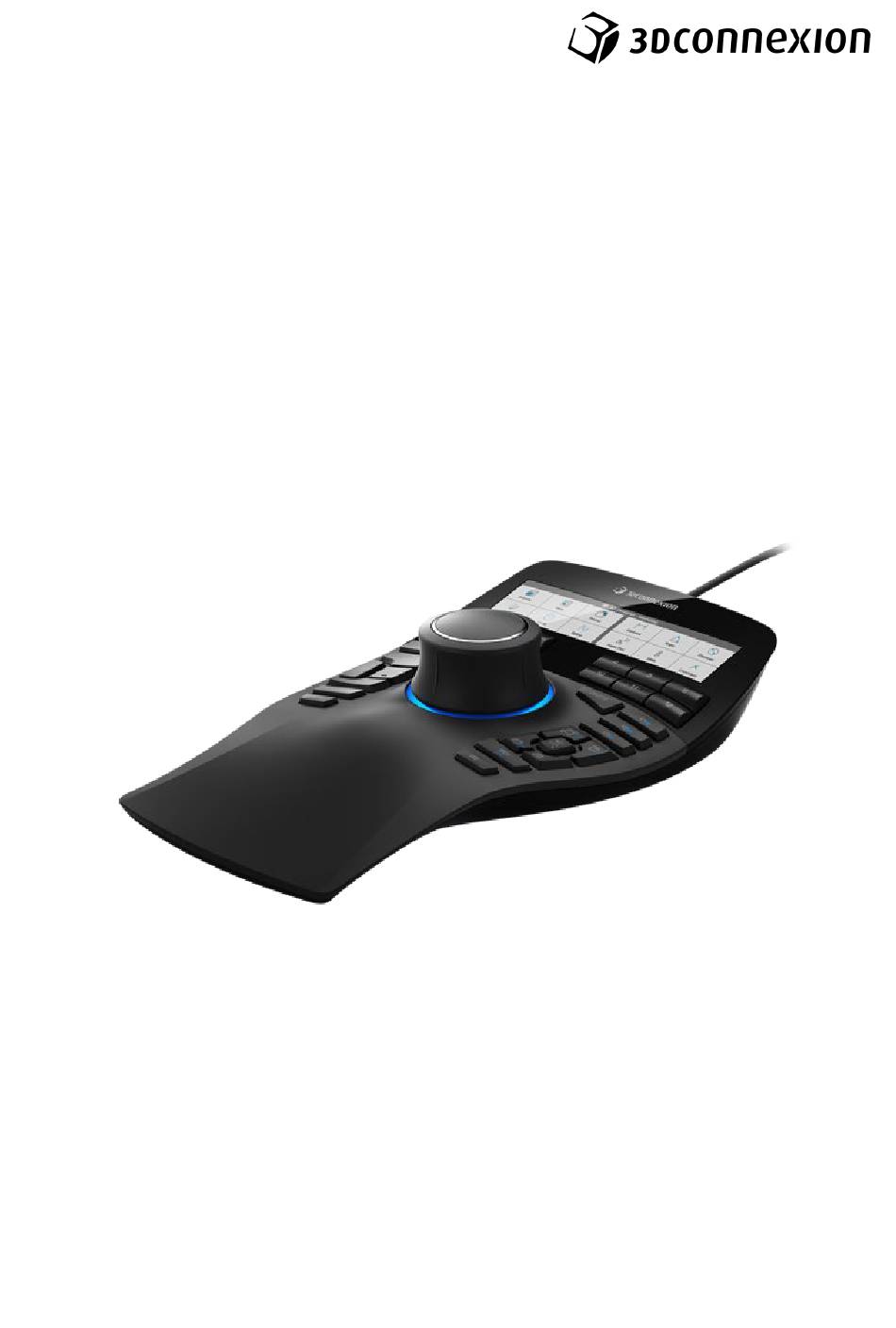

- Page 1 Manual 3Dconnexion SpaceMouse Enterprise ® Driver Version: 3DxWare 10.8.8 and higher...
-
Page 2: Table Of Contents
QuickStart Guide ..........................3 Desktop Setup ....................................3 Hand Position ....................................3 Installation ......................................3 Feature Guide ............................. 4 3Dconnexion SpaceMouse Enterprise ..............................4 3Dconnexion Settings .......................... 6 Advanced Settings ..................................... 7 Application Specific Advanced Settings .............................. 7 Buttons ......................................9 Assigning Quick Macros to buttons .............................. -
Page 3: Quickstart Guide
Desktop Setup Place the SpaceMouse Enterprise on the opposite side of the keyboard to your standard mouse. One hand engages the 3D mouse to position your model: rotating, panning and zooming. The other hand uses the standard mouse to select, create and edit. -
Page 4: Feature Guide
Enterprise. Menu Button The Menu Button allows for fast and easy customization of your 3Dconnexion devices. Pressing it will take you directly to the 3Dconnexion Settings. Select the device you want to configure in the flyout window and customize it. - Page 5 In addition to the LCD, the SpaceMouse Enterprise also offers an On-Screen Display (OSD). To display the OSD of your SpaceMouse Enterprise, press and hold any of the 3Dconnexion Buttons. It will be displayed as long as you keep the button pressed.
-
Page 6: 3Dconnexion Settings
This slider sets the overall speed for your device. In other words, it changes the amount of force or torque that needs to be applied to the SpaceMouse cap to move an object, scene, or image. If multiple 3Dconnexion devices are connected, you can select the desired product to configure by clicking on the flyout button at the top left of the panel. -
Page 7: Advanced Settings
Use the slider to set the speed for each of the 6-Dimensions-of-Freedom individually. To reverse the direction of a movement, check the Reverse box for that movement. Application Specific Advanced Settings Some applications feature additional SpaceMouse settings. For those applications you have additional options available in the Advanced Settings Panel: 3Dconnexion SpaceMouse Enterprise | 7... - Page 8 Show on Motion will visualize the Rotation Center only during movement. Hide will disable the Rotation Center visualization. Other Options The applications below feature special options. More information can be found in the 3Dconnexion FAQ: Autodesk 3ds Max, Autodesk Maya, Solid Edge, SOLIDWORKS 3Dconnexion SpaceMouse Enterprise | 8...
-
Page 9: Buttons
Any setting change is relevant to this application only. Press and hold a 3Dconnexion Button to get the button assignment for the current app displayed on the OSD. To disable this function, check Disable On-Screen Display. -
Page 10: Assigning Commands Using The Flyout Window
This opens the macro editor where you can assign a name for your macro and a sequence of keystrokes in the corresponding fields. Clicking on Save will automatically assign the new macro to the button from where you opened the panel. 3Dconnexion SpaceMouse Enterprise | 10... -
Page 11: Creating Radial Menus
This brings up the radial menu editor where you can assign a name and commands to the different sections. Your new radial menu will be automatically assigned to the key from where you opened the panel. 3Dconnexion SpaceMouse Enterprise | 11... -
Page 12: 3Dconnexion Home
3Dconnexion Home Once you have successfully installed the latest 3Dconnexion driver, 3Dconnexion Home gives you access to various 3Dconnexion apps: Trainer: Learn how to quickly use the 3Dconnexion SpaceMouse. Manual: Here you can find the manuals for all 3Dconnexion products. -
Page 13: Technical Specifications
Height: 58 mm / 2.3’’ Weight: 800 g / 1.76 lb / 28.22 oz Supported Operating Systems Microsoft Windows, macOS More information Package Contents 3Dconnexion SpaceMouse Enterprise Part Numbers Packaging unit number: 3DX-700056 Part number: 3DX-600051 3Dconnexion SpaceMouse Enterprise | 13... -
Page 14: Safety, Compliance And Warranty Information
Clarita-Bernhard-Straße 18 81249 Munich Germany Certifications and Registrations CE, UKCA, EAC, FCC, KC, RCM, BSMI, WEEE, RoHS-EU, RoHS-CN More information Warranty 3+1-years limited hardware warranty (one additional year with product registration) More information Support 3dconnexion.com/support 3Dconnexion SpaceMouse Enterprise | 14...
