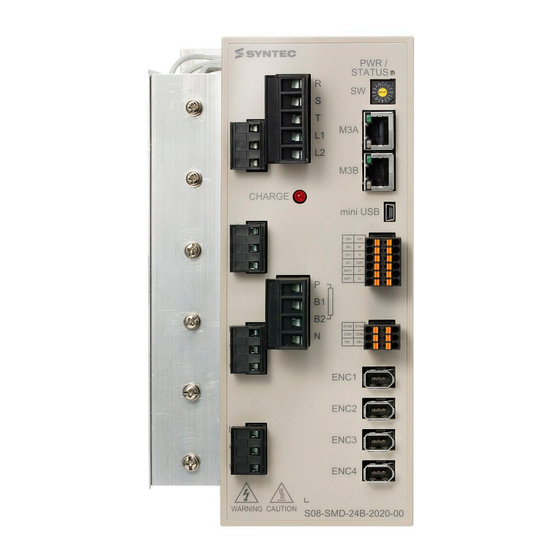

Hardware Manual of SMD-30/30/30/30-XS
匯出日期：2024-12-23
修改日期：2022-03-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMD-30/30/30/30-XS and is the answer not in the manual?

Questions and answers

Related Manuals for Syntec SMD-30/30/30/30-XS

Summary of Contents for Syntec SMD-30/30/30/30-XS

  • Page 1 Hardware Manual of SMD-30/30/30/30-XS 匯出日期：2024-12-23 修改日期：2022-03-30...

  • Page 2: Table Of Contents

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS Revision Table Document Content •...
  • Page 3 伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS  – 3...

  • Page 4: Preface

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 1 Preface       Thank you for your continued support of our products. Our servo team is forever committed to the research and development of new products;...

  • Page 5: Application

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 2 Application This manual is applicable to SMD-30/30/30/30-XS...

  • Page 6: Hardware Specification

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 3 Hardware Specification 3.1 Description Each drive undergoes strict quality inspection and anti-collision packaging before leaving the factory.

  • Page 7: Appearance

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 3.2 Appearance SMD-30/30/30/30-XS Item Module...
  • Page 8 伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS Item Module Description STO Signal Port...

  • Page 9: Dimension

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 3.3 Dimension SMD-30/30/30/30-XS   Hardware Specification – 9...

  • Page 10: Specification

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 3.4 Specification Syntec Drive SMD-30/30/30/30-XS...
  • Page 11 伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS Cooling Fan cooling Method Environment Temperature 0℃...

  • Page 12: Transportation And Installation

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 4 Transportation and Installation 4.1 Transportation The entire body of the drive must be held during transportation.
  • Page 13 伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS • Do not drop or impact the drive.

  • Page 14: Wiring And Signal

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 5 Wiring and Signal 5.1 Wiring Diagram SMD-30/30/30/30-XS ※Recommended encoder wiring: 22AWG×2C+24AWG×2P, 90% coverage...
  • Page 15 伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS • Before powering on, check if the U, V, W, and G terminals are correctly wired to the motor. An incorrect UVW sequence may lead to rotation in the reverse direction or even motor malfunction;...

  • Page 16: Connector And Terminal Definition

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS 1. Operation Status and Power indicator.

  • Page 17: Regenerator Selection

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS Type Wattage Wire Diameter 850W~7.5kW...

  • Page 18: Detailed Selection Guide For Regeneration Resistors

    伺服產品/Servo Products                              –                              Hardware Manual of SMD-30/30/30/30-XS Resistor Type Wirewound  Ripple  Aaluminum-Housed...
  • Page 19                              –                              Hardware Manual of SMD-30/30/30/30-XS ( Rpm). And Ec is the energy that the DC bus capacitor can absorb, Ec = C*(V...
