Ricoh SP 5200S, SP 5210SR, SP 5210SF Manual

Information for This Machine

This chapter describes information for this machine.

Introduction

Disclaimer
Contents of this manual are subject to change without prior notice.
In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Notes
The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufacturer with your office products.
For good copy quality, the manufacturer recommends that you use genuine toner from the manufacturer. Some illustrations in this manual might be slightly different from the machine.

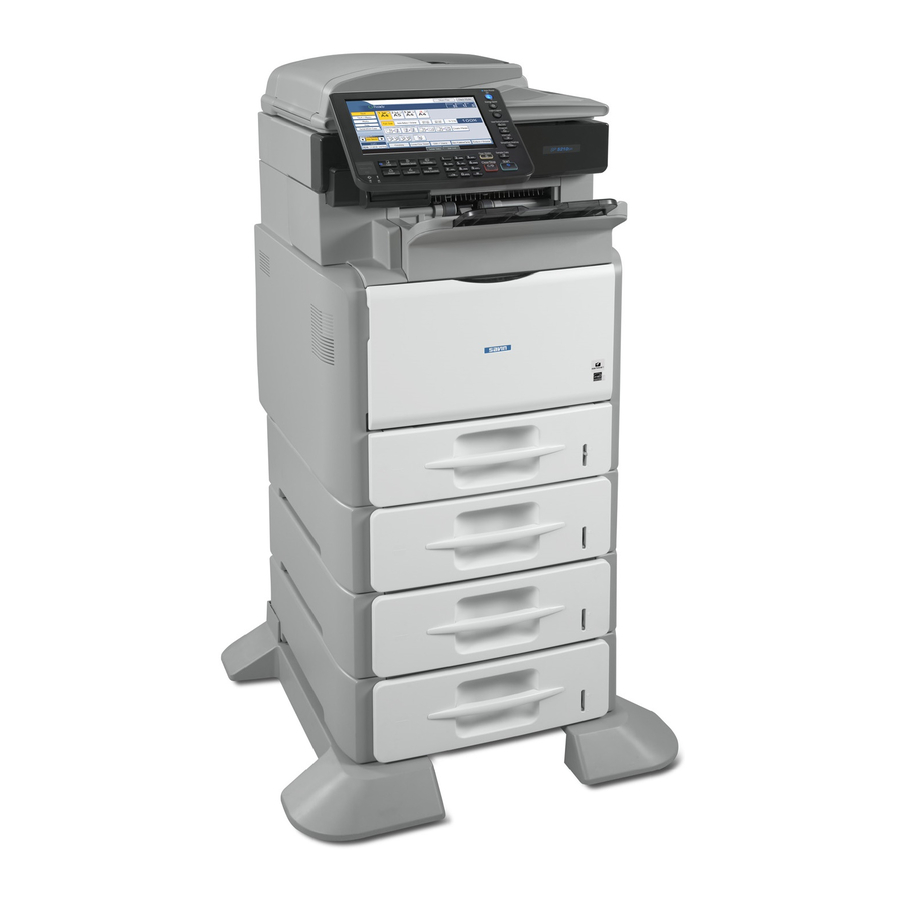

Machine Types

Check the type of your machine before reading this manual.

• Type1: SP 5200S/Aficio SP 5200S
• Type2: SP 5210SF/Aficio SP 5210SF
• Type3: SP 5210SR/Aficio SP 5210SR

Certain types might not be available in some countries. For details, please contact your local dealer.
Certain options might not be available in some countries. For details, please contact your local dealer. Depending on which country you are in, certain units may be optional. For details, please contact your local dealer.

Safety Information for This Machine

This chapter describes safety information for this machine.

Safety Information

When using this machine, the following safety precautions should always be followed.

Safety During Operation
In this manual, the following important symbols are used:

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

Safety Precautions to Be Followed

This section explains safety precautions that should always be followed when using this machine.

Environments where the machine can be used
This section explains safety precautions about environments where the machine can be used.

• Do not use flammable sprays or solvents in the vicinity of this machine. Doing so could result in fire or electric shock.

• Do not place vases, plant pots, cups, toiletries, medicines, small metal objects, or containers holding water or any other liquids, on or close to this machine. Fire or electric shock could result from spillage or if such objects or substances fall inside this machine.

• Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur.

• Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.

• Do not place heavy objects on the machine. Doing so can cause the machine to topple over, possibly resulting in injury.

• Make sure the room where you are using the machine is well ventilated and spacious. Good ventilation is especially important when the machine is used heavily.

• Keep the machine away from salt-bearing air and corrosive gases. Also, do not install the machine in places where chemical reactions are likely (laboratories, etc.), as doing so will cause the machine to malfunction.

• Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal components.

• Machine sound levels exceeding LWAd > 63 dB (A) are not suitable for desk work environments, so place the machine in another room.

• Keep the machine in an area that is within optimum environmental conditions. Operating the machine in an environment that is outside the recommended ranges of humidity and temperature can cause an electrical fire hazard. Keep the area around the socket free of dust. Accumulated dust can become an electrical fire hazard.

Handling power cords and power plugs
This section explains safety precautions about handling power cords and power plugs.

• Do not use any power sources other than those that match the specifications shown. Doing so could result in fire or electric shock.

• Do not use any frequencies other than those that match the specifications shown. Doing so could result in fire or electric shock.

• Do not use multi-socket adaptors. Doing so could result in fire or electric shock.

• Do not use extension cords. Doing so could result in fire or electric shock.

• Do not use power cords that are damaged, broken, or modified. Also, do not use power cords that have been trapped under heavy objects, pulled hard, or bent severely. Doing so could result in fire or electric shock.

• Touching the prongs of the power cable's plug with anything metallic constitutes a fire and electric shock hazard.

• The supplied power cord is for use with this machine only. Do not use it with other appliances. Doing so could result in fire or electric shock.

• It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock.

• Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug becomes frayed or otherwise damaged.

• If the power cord is damaged (exposure of the core, disconnection, etc.), contact your service representative to change a new one. Operating the machine with a damaged power cord may cause an electric shock or fire.

• Be sure to push the plug of the power cord fully into the wall outlet. Partially inserted plugs create an unstable connection that can result in unsafe buildup of heat.

• If this machine is not going to be used for several days or longer at a time, disconnect its power cord from the wall outlet.

• When disconnecting the power cord from the wall outlet, always pull the plug, not the cord. Pulling the cord can damage the power cord. Use of damaged power cords could result in fire or electric shock.

• Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around the prongs at least once a year. Allowing dust to build up on the plug constitutes a fire hazard.

• When performing maintenance on the machine, always disconnect the power cord from the wall outlet.

Handling the main machine
This section explains safety precautions about handling the main machine.

• Be sure to locate the machine as close as possible to a wall outlet. This will allow easy disconnection of the power cord in the event of an emergency.

• If the machine emits smoke or odours, or if it behaves unusually, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

• If metal objects, or water or other fluids fall inside this machine, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

• Do not touch this machine if a lightning strike occurs in the immediate vicinity. Doing so could result in electric shock.

• Keep the polythene materials (bags, etc.) supplied with this machine away from babies and small children at all times. Suffocation can result if polythene materials are brought into contact with the mouth or nose.

• If the machine topples, or if a cover or other part gets broken, you must turn the power switch to off and disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

• Unplug the power cord from the wall outlet before you move the machine. While moving the machine, take care that the power cord is not damaged under the machine. Failing to take these precautions could result in fire or electric shock.

• After you move the machine, use the caster fixture to fix it in place. Otherwise the machine might move or come down to cause an injury.

• Before installing or removing options, always disconnect the power cord plugs from the wall outlet and allow time for the main unit to fully cool. Failing to take these precautions could result in burns.

• Do not look into the lamp. It can damage your eyes.

• Protect the machine from dampness or wet weather, such as rain and snow.

• For environmental reasons, do not dispose of the machine or expended supply waste at household waste collection points. Disposal can take place at an authorized dealer.

• Wait at least one hour after power off before replacing parts. Not allowing the machine to cool may result in burns.

• Type 1 weighs approximately 45 kg (99.2 lb.), type 2 weighs approximately 47 kg (103.7lb.), and type 3 weighs approximately 52 kg (114.7 lb.). When moving the machine, use the inset grips on both sides, and lift slowly. The machine will break or cause injury if dropped.

• When moving the machine after use, do not take out the print cartridge to prevent toner spill inside the machine.

• Do not connect the Ethernet port of the machine to a network that may supply excess voltage, such as a telephone line. Doing so may result in fire or electric shock.

Handling the machine's interior
This section explains safety precautions about handling the machine's interior.

• Do not remove any covers or screws other than those explicitly mentioned in this manual. Inside this machine are high voltage components that are an electric shock hazard and laser components that could cause blindness. Contact your sales or service representative if any of the machine's internal components require maintenance, adjustment, or repair.
• Do not attempt to disassemble or modify this machine. Doing so risks burns and electric shock. Note again that exposure to the laser components inside this machine risks blindness.

• Be sure to turn off the power switch and wait for about 15 minutes before cleaning the registration roller. Not waiting for the machine to cool down can result in a burn.

• Some of this machine's internal components get very hot. For this reason, take care when removing misfed paper. Not doing so could result in burns.

• The inside of the machine could be very hot. Do not touch the parts with a label indicating the"hot surface". Otherwise, an injury might occur.

• When loading paper, take care not to trap or injure your fingers.

• During operation, rollers for transporting the paper and originals revolve. A safety device has been installed so that the machine can be operated safely. But take care not to touch the machine during operation. Otherwise, an injury might occur.

• If the machine's interior is not cleaned regularly, dust will accumulate. Fire and breakdown can result from heavy accumulation of dust inside this machine. Contact your sales or service representative for details about and charges for cleaning the machine's interior.

• The fusing section of this machine might be very hot. Caution should be taken when removing missed paper.

• Lifting the paper feed unit carelessly or dropping it may cause injury.

• Do not pull out the paper tray forcefully. If you do, the tray might fall and cause an injury.

Handling the machine's supplies
This section explains safety precautions about handling the machine's supplies.

• Do not incinerate toner (new or used) or toner containers. Doing so risks burns. Toner will ignite on contact with naked flame.

• Do not store toner (new or used) or toner containers anywhere near naked flames. Doing so risks fire and burns. Toner will ignite on contact with naked flame.

• Do not incinerate spilled toner or used toner. Toner dust might ignite when exposed to an open flame.

• Keep the polythene materials (bags, gloves, etc.) supplied with this machine away from babies and small children at all times. Suffocation can result if polythene materials are brought into contact with the mouth or nose.

• Do not crush or squeeze toner containers. Doing so can cause toner spillage, possibly resulting in dirtying of skin, clothing, and floor, and accidental ingestion.

• Store toner (new or used), toner containers, and components that have been in contact with toner out of reach of children.

• If toner or used toner is inhaled, gargle with plenty of water and move into a fresh air environment. Consult a doctor if necessary.

• If toner or used toner gets into your eyes, flush immediately with large amounts of water. Consult a doctor if necessary.

• If toner or used toner is swallowed, dilute by drinking a large amount of water. Consult a doctor if necessary.

• When removing jammed paper or replacing toner, avoid getting toner (new or used) on your clothing. If toner comes into contact with your clothing, wash the stained area with cold water. Hot water will set the toner into the fabric and make removing the stain impossible.

• When removing jammed paper or replacing toner, avoid getting toner (new or used) on your skin. If toner comes into contact with your skin, wash the affected area thoroughly with soap and water.

• Do not attempt to print on stapled sheets, aluminum foil, carbon paper, or any kind of conductive paper. Doing so risks fire.

• Our products are engineered to meet the highest standards of quality and functionality. When purchasing expendable supplies, we recommend using only those specified by an authorized dealer.

• Keep SD memory cards out of reach of children. If a child swallows an SD memory card, consult a doctor immediately.

Safety Labels of This Machine

This section explains the machine's safety information labels.

Positions of WARNING and CAUTION labels on Types 1 and 2
This machine has labels for WARNING and CAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

Type 1 weighs approximately 45 kg (99.2 lb.) and type 2 weighs approximately 47 kg (103.7 lb.). When moving the machine, use the inset grips on both sides. At least four people are needed to lift the machine.

Do not incinerate spilled toner or used toner. Toner dust is flammable and might ignite when exposed to an open flame.
Disposal should take place at an authorized dealer or an appropriate collection site.
Keep toner (used or unused) and toner containers out of reach of children.

Do not put your hands inside the machine. The inside of this machine becomes very hot. Do not touch parts with this label (indicating a hot surface).

The inside of this machine becomes very hot. Do not touch parts with this label (indicating a hot surface).

The inside of this machine becomes very hot. Do not touch parts with this label (indicating a hot surface).

Positions of WARNING and CAUTION labels on Type 3
This machine has labels for WARNING and CAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

Type 3 weighs approximately 52 kg (114.7 lb.). When moving the machine, use the inset grips on both sides. At least four people are needed to lift the machine.

Do not incinerate spilled toner or used toner. Toner dust is flammable and might ignite when exposed to an open flame.
Disposal should take place at an authorized dealer or an appropriate collection site.
Keep toner (used or unused) and toner containers out of reach of children.

Keep your hands clear of the finisher when removing the staple cartridge. You might trap your fingers if you do not.

Do not put your hands inside the machine. The inside of this machine becomes very hot. Do not touch parts with this label (indicating a hot surface).

The inside of this machine becomes very hot. Do not touch parts with this label (indicating a hot surface).

The inside of this machine becomes very hot. Do not touch parts with this label (indicating a hot surface).

Power Switch Symbols

The meanings of the symbols for the switches on this machine are as follows:

• : POWER ON
• : STANDBY
