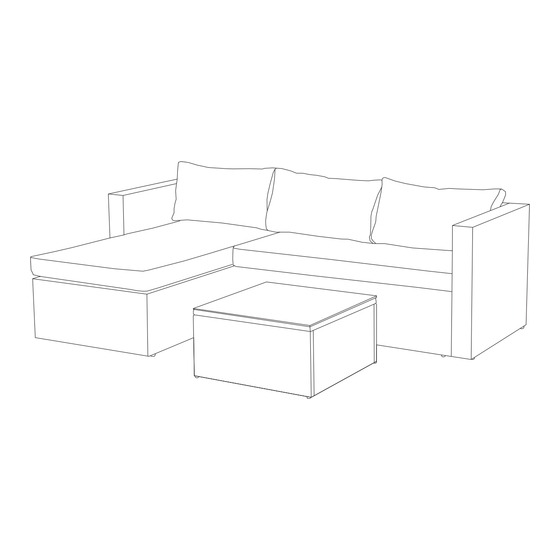

Sectional Set
Model No. 499-4099-6
Assembly Instructions
NEED HELP? GIVE US A CALL!
WE'RE HERE FOR YOU.
TOLL-FREE:
1-877-483-6759
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.
Production number: XXXXXX
Advertisement
Related Manuals for for Living 499-4099-6
Summary of Contents for for Living 499-4099-6
- Page 1 Sectional Set Model No. 499-4099-6 Assembly Instructions NEED HELP? GIVE US A CALL! WE’RE HERE FOR YOU. TOLL-FREE: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production number: XXXXXX...
- Page 2 For LIVING is a great place to start. Uncomplicate your life with timeless style and reliable quality that delivers everyday solutions for your home. Let us know how our products work for you. Rate and review at...
- Page 3 Table of Contents Important Safety Instructions Technical Data Parts List Troubleshooting Caring for Your Item Before You Begin Assembly Warranty Step-by-step Guide Warning! Please use your furniture correctly and safely. lmproper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information.
- Page 4 Parts List Item Description Thumbnail Quantity Arm 2 P00140042102 P00150018502 Loveseat Back Loveseat Seat Board P00160032102 P00140042202 Arm 1 Lounge Back P00150018602 Lounge Seat Board P00160032202 P00170015002 Back Cushion P00180024402 Loveseat Cushion P00180024502 Lounge Cushion P00240010301 Coffee table panel 1 Coffee table panel 2 P00240010401 P00370005001...
- Page 5 Parts List Item Description Thumbnail Quantity Glass P00210062901 Adjustable Foot H990030037 (Pre-assembled) Buckle P00220050501 (Pre-assembled) Sectional Set...
- Page 6 Place packing materials back in the box. Do not dispose of packaging materials until assembly is complete. Read Each Step Carefully ® Make sure you understand each step. For any questions, contact the For LIVING customer service centre at 1-877-483-6759 (toll free). Sectional Set...
- Page 7 Step-by-step Guide Note: There are 2 assembly methods for this product. RIGHT FACING LEFT FACING Sectional Set...
- Page 8 Step-by-step Guide Step 1: Before installation, take off the plastic cap on the latch. Step 2: Buckle instructions: open the buckles, then rotate the triangle hook to a suitable position that allows the buckle to lock to the hook base tightly. Step 1 Step 2 Sectional Set...
- Page 9 Step-by-step Guide To unlock the buckles: Open the buckles, then open the triangle hook. Sectional Set...
- Page 10 Step-by-step Guide (Left Facing) Step 1 Insert latches on loveseat back (B) to arm 2 (A), then lock the buckle tightly. Sectional Set...
- Page 11 Step-by-step Guide (Left Facing) Step 2 Insert latches on loveseat back (B) to lounge seat board (B1), then lock the buckle tightly. Sectional Set...
- Page 12 Step-by-step Guide (Left Facing) Step 3 Insert latches on arm (A0) to lounge back (B1), then lock the buckle tightly. Sectional Set...
- Page 13 Step-by-step Guide (Left Facing) Step 4 Flip the sofa over, insert the latches on loveseat seat board (C) to arm 2 (A) and loveseat back (B), then lock the buckles tightly. Sectional Set...
- Page 14 Step-by-step Guide (Left Facing) Step 5 Insert the latches on lounge seat board (C1) to loveseat seat board (C) and lounge back (B1) Insert latches on arm (A0) to lounge seat board (C1), then lock the buckles tightly. Ensure all of the buckles are attached correctly.
- Page 15 Step-by-step Guide (Left Facing) Step 6 Place the back cushion (K), loveseat cushion (L) and lounge cushion (L1) on the sofa. Sectional Set...
- Page 16 Step-by-step Guide (Right Facing) Step 7 Insert latches on lounge back (B1) to arm (A), then lock the buckles tightly. Sectional Set...
- Page 17 Step-by-step Guide (Right Facing) Step 8 Insert latches on loveseat back (B) to arm (A), then lock the buckles tightly. Sectional Set...
- Page 18 Step-by-step Guide (Right Facing) Step 9 Insert latches on arm (A0) to loveseat back (B), then lock the buckles tightly. Sectional Set...
- Page 19 Step-by-step Guide (Right Facing) Step 10 Flip the sofa over, insert the latches on louge seat board (C1) to arm (A) and lounge back (B1), then lock the buckles tightly. Sectional Set...
- Page 20 Step-by-step Guide (Right Facing) Step 11 Insert the latches on loveseat seat board (C) to lounge seat board (C1) and loveseat back (B) Insert latches on arm (A0) to loveseat seat board (C), then lock the buckle tightly. Sectional Set...
- Page 21 Step-by-step Guide (Right Facing) Step 12 Place the back cushion (K), loveseat cushion (L) and lounge cushion (L1) on the sofa. Sectional Set...
- Page 22 Step-by-step Guide Step 13 Insert latches on panel 1 (A1) to panel 2 (B2), then lock the buckles tightly. Sectional Set...
- Page 23 Step-by-step Guide Step 14 Carefully place glass (D1) with top panel (C2) on the top. Sectional Set...
- Page 24 Technical Data Coffee Table: 60 x 60 x 32 cm (23 5/8 x 23 5/8 x 12 5/8") Dimensions Loveseat: 131 x 70 x 62 cm (51 9/16 x 27 9/16 x 24 3/8") Chaise Lounge Chair: 80 x 140 x 62 cm (31 1/2 x 55 1/8 x 24 3/8") Product Weight 37 kg 81 lb 9 oz...
- Page 25 Troubleshooting Need help? 1-877-483-6759 Give us a call! We’re here for you. Toll-free: Before returning your If you have questions regarding your product product to store or require warranty assistance, please call our customer service helpline. Notice: The following steps are only for after-sale service if the parts are damaged. Step 1 Replace foot pad: Remove the old foot pad in a counter-clockwise direction,...
- Page 26 Caring For Your Item We recommend the use of furniture covers when not in use. The cushion may be spot cleaned on the surface only; do not clean in washing machine. Clean and dry before storing in a dry, sheltered area. Clean the chair frame with mild soap and water.
- Page 27 This product is not guaranteed against wear or breakage due to misuse and/or abuse. Model No. 499-4099-6 Made in China Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
