Roland V-Drums TD-6V Service Notes

Roland V-Drums TD-6V Service Notes

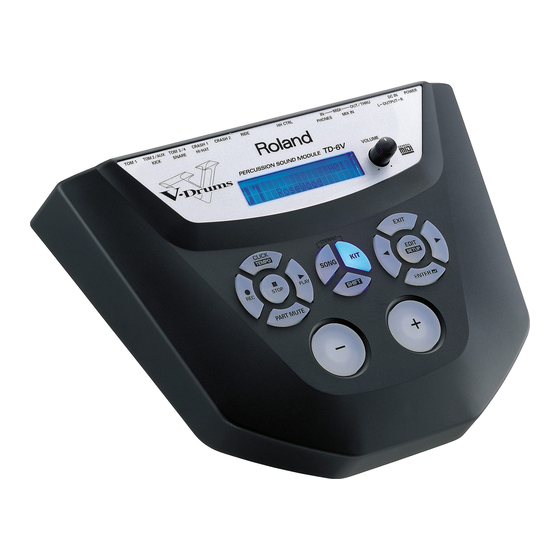

Percussion sound module
Hide thumbs Also See for V-Drums TD-6V:

Advertisement

Feb.2004

TABLE OF CONTENTS

SPECIFICATIONS.............................................................2
LOCATION OF CONTROLS ..........................................4
LOCATION OF CONTROLS PARTS LIST ...................5
EXPLODED VIEW ............................................................6
EXPLODED VIEW PARTS LIST .....................................7
PARTS LIST........................................................................8
CHECKING THE VERSION NUMBER.......................10
USERS DATA SAVE AND LOAD................................10
TEST MODE.....................................................................11
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of ROLAND CORPORATION.
RESTORING THE FACTORY SETTINGS ...................14
BLOCK DIAGRAM.........................................................16
CIRCUIT BOARD (MAIN) ............................................18
CIRCUIT DIAGRAM(MAIN)........................................20
CIRCUIT BOARD (PANEL) ..........................................30
CIRCUIT DIAGRAM(PANEL)......................................32
ERROR MESSAGES ........................................................36
PROCEDURE OF REPLACING THE LCD .................38
17058200E0
SERVICE NOTES
Issued by RJA
Printed in Japan (0500) (TP)
TD-6V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Drums TD-6V and is the answer not in the manual?

Questions and answers

Summary of Contents for Roland V-Drums TD-6V

  • Page 1: Table Of Contents

    USERS DATA SAVE AND LOAD........10 PROCEDURE OF REPLACING THE LCD ....38 TEST MODE..............11 Copyright © 2004 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. 17058200E0...
  • Page 2: Specifications

    Feb.2004 SPECIFICATIONS TD-6V: Percussion Sound Module (Conforms to General MIDI System) • Accessories • Maximum Polyphony Owner’s Manual English (#C5100014) 64 Voices Owner’s Manual Japanese (#C5100013) AC Adaptor ACI-120C (#00905767) • Instruments ACI-230C (#01018312) Drum Instruments: 1,024 ACB-230E (#01458278) Backing Instruments: 262 ACB-240A (#12449549) Screws M5x8 x4pcs.
  • Page 3 TD-6V...
  • Page 4: Location Of Controls

    Feb.2004 LOCATION OF CONTROLS fig.panel...
  • Page 5: Location Of Controls Parts List

    TD-6V LOCATION OF CONTROLS PARTS LIST [Parts] PART CODE CATEGORY PART NAME DISCRIPTION Q’TY 02453145 DISPLAY LCD UNIT RCM2072M-A C6300070 CASING TOP PANEL 22480260 KNOB,BUTTON P R-KNOB MF BLK/LCG 02670445 POTENTIOMETER 12M/M ROTARY POT. EVJY15FB6A14 C6600023 SWITCH RUBBER SWITCH 02341712 JACK,EXT TERMINAL 6.5MM JACK HTJ-064-10I...
  • Page 6: Exploded View

    Feb.2004 EXPLODED VIEW fig.bunkai...
  • Page 7: Exploded View Parts List

    TD-6V EXPLODED VIEW PARTS LIST [Parts] PART CODE CATEGORY PART NAME DISCRIPTION Q’TY C7100031 MISCELLANEOUS INSULATING SHEET PANEL 01675890 MISCELLANEOUS FOOT C6200058 CASING BOTTOM COVER 12499175 KNOB,BUTTON G S-BUTTON S1H BLK (JSPUE0011A) C4800003 PCB ASSY MAIN BOARD ASSY C6400011 MISCELLANEOUS SHIELD SHEET PANEL 22365714 MISCELLANEOUS...
  • Page 8: Parts List

    Feb.2004 PARTS LIST fig.part1e CONSIDERATION ON PARTS ORDRING SAFETY PRECAUTIONS: When ordering any parts listed in the parts list, please specify the following items in the order sheet. The parts marked have PART NUMBER DESCRIPTION MODEL NUMBER safety-related characteristics. Use 22575241 Sharp Key C-20/50...
  • Page 9 TD-6V PACKING C5000023 ADAPTOR PAD C5000022 LOWER PAD C5000021 UPPER PAD MISCELLANEOUS 22365714 CORD HOOK 01675890 FOOT C7100031 INSULATING SHEET PANEL C7100032 INSULATING SHEET MAIN 02567234 LITHIUM BATTERY CR2032 40016589 NYLON RIVET NRP-335 C6400012 SHIELD SHEET MAIN C6400011 SHIELD SHEET PANEL ACCESSORIES(STANDARD) C5100013 OWNER’S MANUAL SET...
  • Page 10: Checking The Version Number

    Feb.2004 CHECKING THE VERSION Bulk load NUMBER Use a MIDI cable to connect the TD-6V’s MIDI IN connector to the MIDI OUT connector of the external sequencer. When receiving the TD-6V data stored in the MIDI instrument or PC, use Turn the power on while holding down [KIT], [<], and [ENTER] button.
  • Page 11: Test Mode

    TD-6V TEST MODE 6V...” If turn on the power without connecting the hi-hat pedal or press the pedal before the display indicates “WELCOME TO TD-6V...,” the HI-HAT Pedal Test will produce a result of NG. fig.setsuzoku If you press a different switch, or if you press the switches in the wrong order, Stereo headphones you will not enter test mode.
  • Page 12 Feb.2004 If each item is ‘OK’, “o” is displayed. fig.test07 And you proceed to the next test item automatically. fig.test02 4.Switch/LED When you press the panel switches individually, make sure that the name of the switch is displayed, and that the corresponding sound is heard.
  • Page 13 TD-6V Maximum contrast Check items . Strike Head (1--5, 7, 9--11) . Operate the Rim Switch (2--5, 7, 9--11) fig.test12 fig.test18 Holding down [DEC/-] button, and make sure that the LCD contrast changes smoothly. Holding down [DEC/-] and press [INC/+] button magnifies the values being changed.
  • Page 14: Restoring The Factory Settings

    Feb.2004 10.Sound Test This ends test mode. Turn off the power. Make sure that no sound is heard. RESTORING THE FACTORY fig.test23 SETTINGS This restores the pad and instrument settings, song data, and other information stored in the TD-6V to the original factory settings. Press [ENTER] button, and make sure that a sine wave is output from both L-side and R-side of the OUTPUT and the PHONES.
  • Page 15: System Software Update Procedure

    TD-6V SYSTEM SOFTWARE UPDATE PROCEDURE Required items • TD-6V Update Disk SET (P/No.17041438) • SMF-compatible sequencer(ex.:XP-50/60/80, MC-50/80 etc) Procedure Connect the SMF player’s MIDI OUT connector to the TD-6V’s MIDI IN connector. Turn the power on while holding down [EDIT]+[STOP] button, and you will enter Update Mode.
  • Page 16: Block Diagram

    Feb.2004 TD-6V BLOCK DIAGRAM fig.block KICK MIX IN SNARE IC21F PHONES IC21D HIHAT TD-6V PANEL BOARD IC41A OUTPUT L(MONO) TOM2/AUX RUB BER VOLUM E 20x2 OUTPUT TOM3/4 IC41B IC21E TOM1 TD-6V MAIN BOARD JK13 IC27 IC21C CRASH1 SH2GA IC21B IC29 CRASH2 IC21A RIDE...
  • Page 17: Circuit Board (Main)

    Feb.2004 CIRCUIT BOARD (MAIN) fig.main-comp View from components side...
  • Page 18 TD-6V fig.main-foil View from foil side...
  • Page 19: Circuit Diagram(Main)

    Feb.2004 TD-6V CIRCUIT DIAGRAM (MAIN 1/5) fig.main1-c XWAITTG CPU Section A[0..13] D[0..15] XWRL XCSTG XINTTG 470k Section 470k 470k TXDFZ RXDFZ 10/16 10/16 XRSTFZ R210 IL-S-8P-S2T2-EF C310 0.1 C311 0.1 C312 0.1 I/O8 C313 0.1 C314 0.1 I/O7 C315 0.1 I/O6 C316 0.1 I/O5...
  • Page 20 Feb.2004 TD-6V CIRCUIT DIAGRAM (MAIN 2/5) fig.main2-c WD[0..15] TG Section DA43 C338 MA142WK D 3. 3 C339 D 3. 3 WA14 WA14 C340 TA48M033F C341 WA15 WA15 C342 D 3. 3 C343 WA16 WA16 C348 C349 C350 0.1 C344 C347 WA17 WA17 C351...
  • Page 21 Feb.2004 TD-6V CIRCUIT DIAGRAM (MAIN 3/5) fig.main3-c Trigger Section MA147 R247 R248 5.6k 'HTOM1 'HHCTRL HHCTRL 'RTOM1 C369 0.01 JK13 HTJ-064-10D C255 C256 TOM1 1000p 1000p DA12 DA35 MA147 MA147 390k 390k 'HTOM2 'HAUX HKICK HTOM2 RA28 C260 100k DA13 DA34 RA29 HTJ-064-10D...
  • Page 22 Feb.2004 TD-6V CIRCUIT DIAGRAM (MAIN 4/5) fig.main4-c Analog Section IC26 AN78L05M I/F Section C142 MIXIN_L MIXIN_R C145 N1608ZA601T01 R121 R119 C148 R120 C261 C147 C149 100/16 SEND_L R123 IC27A UPC4570G SEND_R TG Section C155 MUTE 10/16 C157 SDOC SI/LSI LOUT LRCK LR/WDCK ROUT...
  • Page 23 Feb.2004 TD-6V CIRCUIT DIAGRAM (MAIN 5/5) fig.main5-c C370 All Other Trigger I/F Section DA42 Sections Section MA142WK R164 D+5V XRESET IC31 SW1A NJM7805FA SDKLA10200 IC40 FBR07HA850TB-00 SS5819 TC7S08F 'RSNARE 'HSNARE 'HHIHAT HTJ-020-05AZ C200 C203 'RHIHAT C198 C199 C201 C202 1000/16 1000/16 'HKICK IC32...
  • Page 24: Circuit Board (Panel)

    Feb.2004 CIRCUIT BOARD (PANEL) fig.panel-comp View from components side...
  • Page 25 TD-6V fig.panel-foil View from foil side...
  • Page 26: Circuit Diagram(Panel)

    Feb.2004 TD-6V CIRCUIT DIAGRAM (PANEL 1/2) fig.panel1-c PANEL & JACK Section 'RSNARE DGND 'HSNARE 'HHIHAT SW1A SW2A 'RHIHAT 'HKICK To MAIN CLICK EXIT RIGHT BOARD DGND_LCD MA142WA MA142WA MA142WA MA142WA (I/F Section) SW5A SW7A 10/16 PART MUTE STOP/TOP EDIT ENTER SW9A SW10A SW11A...
  • Page 27 Feb.2004 TD-6V CIRCUIT DIAGRAM (PANEL 2/2) fig.panel2-c ANALOG & BACK LIGHT LED Section A D P MA142WK IC2A 10/16 UPC4570G DGND_LED YKB21-5290 1000p To MAIN MIXIN_L MIX IN BOARD MIXIN_R MUTE DA10 IC2B 10/16 UPC4570G MA142WA (I/F Section) SEND_L 1000p SEND_R 14FE-ST-VK-N 5.6k...
  • Page 28: Error Messages

    The internal backup battery of the TD-6V (a battery that maintains data in the fig.er01 user memory) has run down. Contact your dealer or a nearby Roland service center to have the battery replaced. Messages and Error Messages Related System and Battery Error Messages...
  • Page 29 TD-6V Song Lock ON! Messages and Error Messages Related fig.er10 to MIDI MIDI Offline! fig.er15 Song Lock is on for this song; it cannot be edited or recorded. Set Song Lock to “OFF” (SONG/COMMON/Song Lock). Empty Song! fig.er11 Something has caused a break in communication with the external MIDI device.
  • Page 30: Procedure Of Replacing The Lcd

    Feb.2004 Apply the ALUMINUM TAPE (#40565923) in order to reflect the light. Data Recieving... Please, Wait. Apply ALUMINUM TAPE folded twice along with LCD HOLDER. fig.er20 fig.lcd3 Bulk data is being received. Do not turn off the power. PROCEDURE OF REPLACING THE LCD When you replaced the LCD, be sure to perform followings: Apply the ACETATE TAPE (#40122612) so that these parts are covered...
