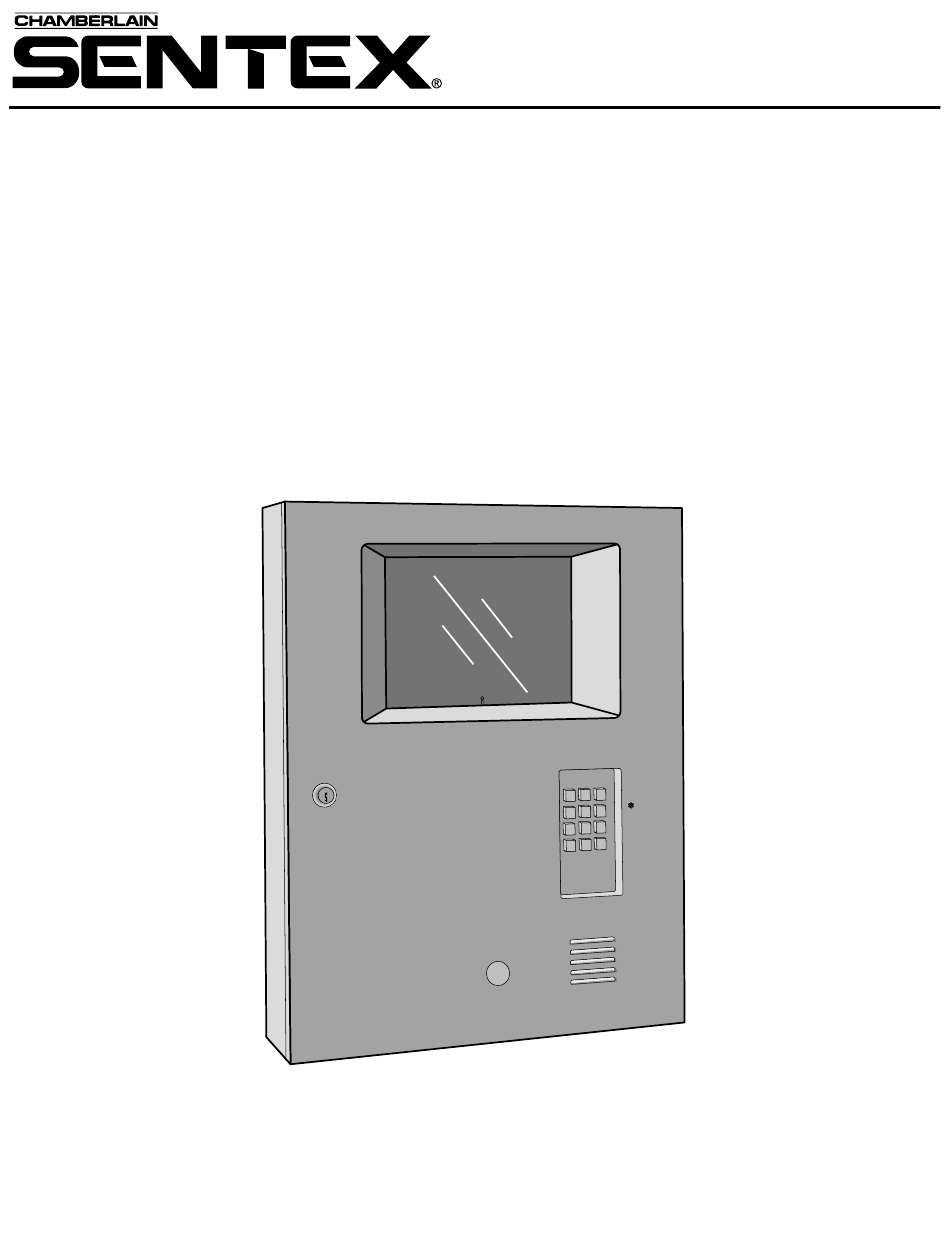

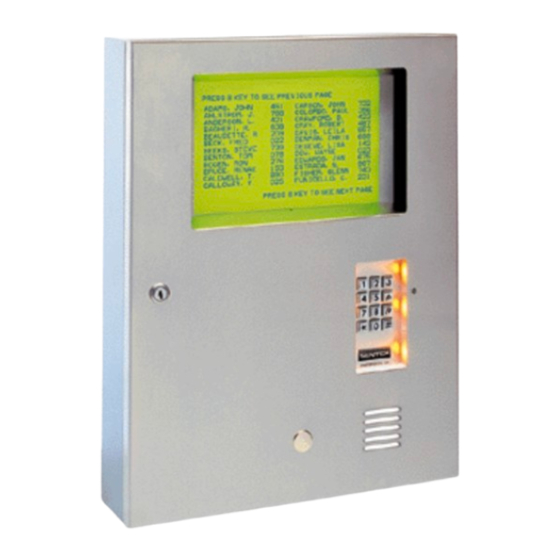

Installation Instructions
I I N N F F I I N N I I T T Y Y T T E E L L E E P P H H O O N N E E
E E N N T T R R Y Y S S Y Y S S T T E E M M S S
for all
(Except those with multi-link firmware)
Software Rev. 2.0 and up
3
2
1
6
5
4
9
8
7
#
0
*
The Chamberlain Group
845 Larch Ave.
Elmhurst, IL 60125-1196
www.chamberlain.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SENTEX INFINITY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chamberlain SENTEX INFINITY

Summary of Contents for Chamberlain SENTEX INFINITY

  • Page 1 The Chamberlain Group ® 845 Larch Ave. Elmhurst, IL 60125-1196 www.chamberlain.com Installation Instructions for all I I N N F F I I N N I I T T Y Y T T E E L L E E P P H H O O N N E E...
  • Page 2 T A B L E O F C O N T E N T S INTRODUCTION ADJUSTMENTS ....... . .16-17 Important Notes .
  • Page 3 I N T R O D U C T I O N INSTALLATION GUIDELINES The sections that follow contain detailed procedures for each step MOUNT THE UNIT AT THE CORRECT HEIGHT. Mount the unit required to install the access control system. In addition, the according to local, state, or national regulations (i.e., the following installation guidelines will help ensure your installation Americans with Disabilities Act).
  • Page 4 Plastic Standoff 1. Unlock the cabinet. NOTE: Most Chamberlain cabinet locks are commonly keyed. However, the lock can be easily replaced. If you wish to have the lock on your system individually keyed, contact a locksmith.
  • Page 5 W I R I N G TELEPHONE INTERFACE BOARD CONNECTIONS NOTE: To avoid potential damage to the board, remove power to the unit BEFORE connecting or disconnecting the phone line. 1. Connect a 2-conductor, 18 to 22 AWG cable to TELCO LINE on the telephone interface board (Figure 2 or 3). 2.
  • Page 6 NOTE: Magnetic locks and DC powered strikes produce potentially • Dry Contact Closures (most gate operators): Connect one wire damaging voltage spikes. Chamberlain strongly recommends to the NO terminal and the other to COMMON. installing an IN4001 diode across the magnetic lock coil with the cathode (the banded end) connected to the positive side of the •...
  • Page 7 NOTE: Magnetic locks and DC powered strikes produce • Dry Contact Closures (most gate operators): Connect one wire potentially damaging voltage spikes. Chamberlain strongly to the NO terminal and the other to COMMON. recommends installing an IN4001 diode across the magnetic •...
  • Page 8 W I R I N G OPTIONAL CLOSED CIRCUIT TELEVISION Figure 4 CONNECTIONS (CCTV) CCTV Board 1. Connect a 2-conductor 10 to 18 AWG cable to TB1 on the right WIRING lower corner of the CCTV Power Supply Board (Figure 4). TERMINAL BLOCKS 2.
  • Page 9 W I R I N G POWER ON MAIN PROCESSOR BOARD • The power monitor consists of two red LEDs in areas DS5 and 3. If either the “hi” or “lo” LEDs light, the voltage is either too high DS6 (marked “hi” and “lo”) and one green LED in area DS7 or too low, and the power connections, wiring, and transformer (marked “in”).
  • Page 10 A D D I T I O N A L F E A T U R E S DOOR POSITION SENSING The system can monitor the position of two doors and take action if the door is pried open or held open for more than a minute after the relay deactivates.
  • Page 11 DB25 PIN # Centronics parallel printer cable. 3-Conductor, Shielded Cable (30 Feet Max. Length) When an Okidata 184 is ordered from Chamberlain, it will be an RS232 serial printer. It is supplied with a DB25 (25-pin data connector) and cabling. INFINITY...
  • Page 12 A D D I T I O N A L F E A T U R E S CONNECT AN EXTERNAL MODEM The system can communicate with a remote terminal via RS232 serial port 1 and modems. An internal 2400 baud modem is standard in all except the “B”...
  • Page 13 A D D I T I O N A L F E A T U R E S CONNECT REMOTE KEYPADS/KEYPAD LIGHTS The system may have up to two remote keypads attached. Keypads require a 7-conductor, 20-24 AWG, shielded cable. •...
  • Page 14 A D D I T I O N A L F E A T U R E S CONNECT CARD READERS WIEGAND READER CONNECTIONS If you have card readers as part of your system, they connect to READER WIRE CONDUCTS MAIN BOARD TB4 TB4 for door one and/or TB6 for door 2 (this can also be the exit COLOR...
  • Page 15 • Each unit must have a unique programming access code (password). Chamberlain recommends hooking up no more than two units to the same telephone line. Whenever one unit is using the line, the other units will receive busy signals. If several visitors attempt calls at the same time, most of the units will have to wait until the line is free.
  • Page 16 A D J U S T M E N T S All adjustments must be made in the following order (referring to the illustrations on page 17): SIDE TONE ADJUSTMENT MIC. SENSITIVITY The microphone’s sensitivity may be adjusted at MIC SENS To adjust the side tone, the phone line must be connected to the (Figure 7 or 8).
  • Page 17 A D J U S T M E N T S Figure 7 Figure 8 TELEPHONE INTERFACE BOARD (SN1100329) TELEPHONE INTERFACE BOARD (SN1110429) Panel Speaker J1 Panel Speaker J1 Line Off Hook Line Click Click Ring Ring Handset Handset Click Click Level Detect...
  • Page 18 T E S T I N G When connections have been completed, test the system’s TELEPHONE ENTRY functionality and adjust the unit, starting with the side tone (see Test the telephone entry function as follows: page 16). The test sequence depends on the series system and 1.
  • Page 19 T E S T I N G POSTAL LOCK/REQUEST FOR ACCESS/ DOOR POSITION MONITORING Test these features by shorting across the appropriate terminal block pins, then check to make sure the associated relays activate and deactivate properly. Once your wiring is in place, test the functions again. BUILT-IN MODEM Call the system using a Hayes-compatible modem hooked to a terminal (or PC using terminal emulation software).
  • Page 20 TYPE OF SERVICE guarantee that interference will not occur in a particular Your Chamberlain system is designed for standard-device installation. If this equipment does cause harmful interference to telephone lines. They should not be used on coin service or party radio or television reception, which can be determined by turning lines.
  • Page 21 D O C R E Q U I R E M E N T S REQUIREMENTS NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.
  • Page 22 O P E R A T O R N O T E S...
  • Page 23 O P E R A T O R N O T E S...
  • Page 24 © 2008, The Chamberlain Group, Inc. SN6001566F All Rights Reserved...
