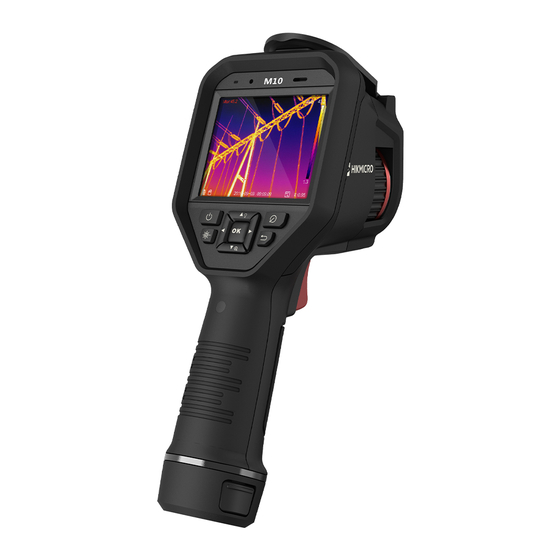

Hikmicro M Series User Manual

Handheld thermography camera
Hide thumbs Also See for M Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Handheld Thermography Camera
M Series User Manual
Contact Us

Advertisement

Table of Contents
loading

Related Manuals for Hikmicro M Series

Summary of Contents for Hikmicro M Series

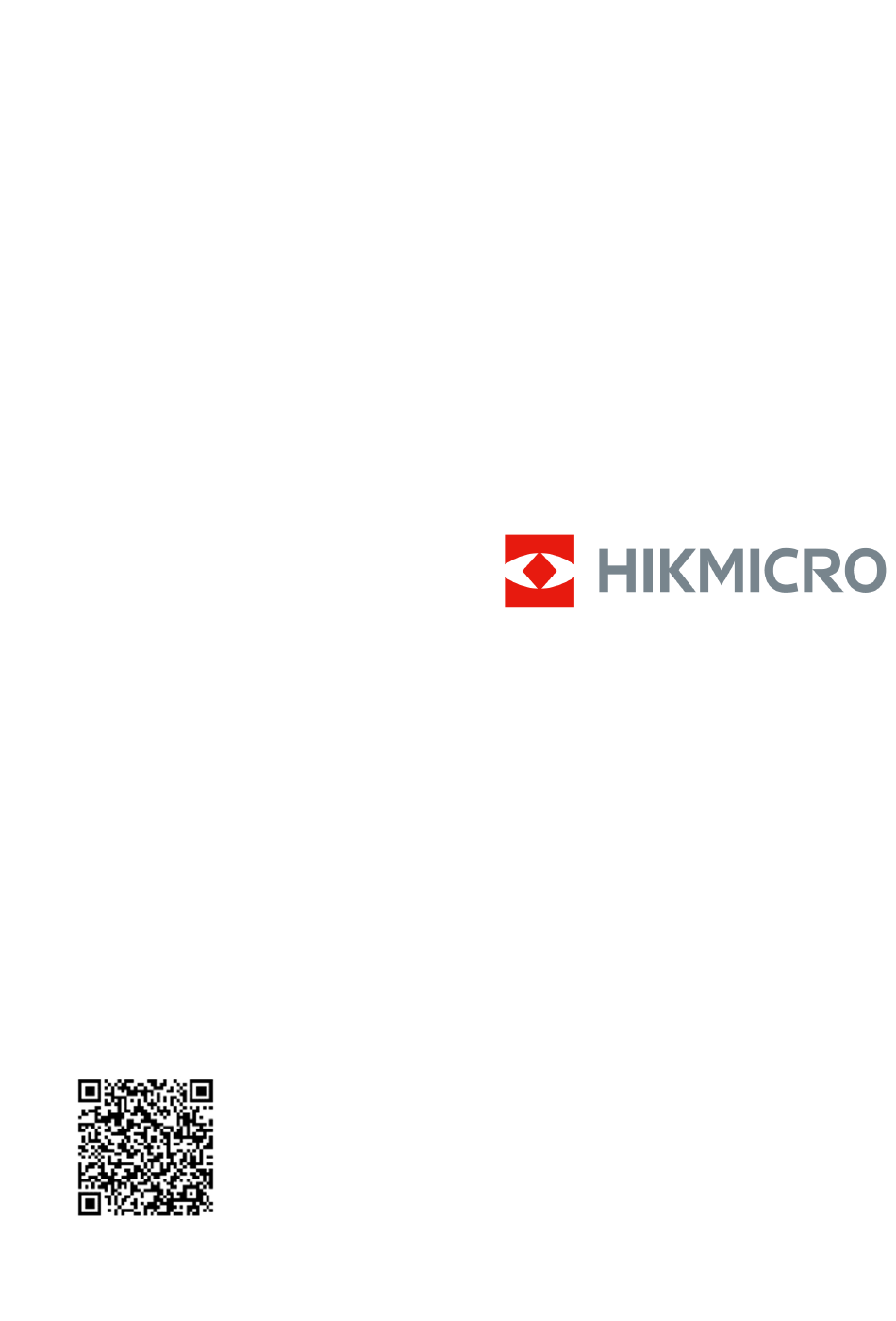

  • Page 1 Handheld Thermography Camera M Series User Manual Contact Us...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKMICRO BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Handheld Thermography Camera M Series User Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 4 Handheld Thermography Camera M Series User Manual Regulatory Information Note These clauses apply only to the products bearing the corresponding mark or information. FCC Compliance Statement Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5 Handheld Thermography Camera M Series User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU, the RoHS Directive 2011/65/EU This product and - if applicable - the supplied accessories too are marked with "UKCA" and comply therefore with the following directives: Radio Equipment...
  • Page 6 Handheld Thermography Camera M Series User Manual 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 Handheld Thermography Camera M Series User Manual *For M30 Series, please pay attention to the ce matériel est conforme aux limites de dose following notes when the device is operating d'exposition aux rayonnements, CNR-102 in 5 GHz: énoncée dans un autre environnement.
  • Page 8 Handheld Thermography Camera M Series User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 9 Handheld Thermography Camera M Series User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations Use of the product must be in strict compliance with the local electrical safety regulations.
  • Page 10 ● Technical Support The https://www.hikmicrotech.com/en/contact-us/ portal will help you as a HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc. Emergency If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the ●...
  • Page 11 Handheld Thermography Camera M Series User Manual Laser Light Supplement Warning Warning: The laser radiation emitted from the device can cause eye injuries, burning of skin or inflammable substances. Prevent eyes from direct laser. Before enabling the Light Supplement function, make sure no human or inflammable substances are in front of the laser lens. The wave length is 650 nm, and the power is less than 1 mW.

  • Page 12: Table Of Contents

    Handheld Thermography Camera M Series User Manual Contents Chapter 1 Overview ........................1 1.1 Device Description ......................... 1 1.2 Main Function ........................1 1.3 Appearance ..........................2 Chapter 2 Preparation ........................ 5 2.1 Charge Device ........................5 2.1.1 Charge Device via Charging Base .................. 5 2.1.2 Charge Device via Cable Interface .................
  • Page 13 Handheld Thermography Camera M Series User Manual 4.2 Set Image Measurement ...................... 20 4.3 Set Measurement Tool ......................21 4.3.1 Measure by Custom Spot .................... 21 4.3.2 Measure by Line ......................22 4.3.3 Measure by Rectangle ....................23 4.3.4 Measure by Circle ....................... 24 4.4 Temperature Alarm ......................
  • Page 14 Handheld Thermography Camera M Series User Manual 12.1 View Device Information ....................41 12.2 Set Date and Time ......................41 12.3 Upgrade Device ........................41 12.4 Restore Device ........................41 12.5 Initialize Memory Card ....................... 42 12.6 About Calibration ....................... 42 Chapter 13 Appendix ........................

  • Page 15: Chapter 1 Overview

    Client Software Connection Mobile Phone: Use HIKMICRO Viewer to view live image, capture snapshots, and record videos ● on your phone. You can also, analyze pictures offline, generate and share a report via the app.

  • Page 16: Appearance

    Handheld Thermography Camera M Series User Manual Bluetooth Device can be connected to headset via Bluetooth, and you can hear the voice in the recording or capture. Digital Zoom Device supports digital zoom from 1.0× to 8.0×. LED Light LED light supplement makes the device a torch in required scenarios.
  • Page 17 Handheld Thermography Camera M Series User Manual Note The warning sign is inside the lens cover. Table 1-1 Interface Description Component Function Laser Button Hold the button to turn on laser, and release the button to turn off laser. Navigation...
  • Page 18 Handheld Thermography Camera M Series User Manual Caution The laser radiation emitted from the device can cause eye injuries, burning of skin or inflammable substances. Before enabling the light supplement function, make sure no human or inflammable substances are in front of the laser lens.

  • Page 19: Chapter 2 Preparation

    Handheld Thermography Camera M Series User Manual Chapter 2 Preparation 2.1 Charge Device Caution The built-in cell battery that powers the real time clock (RTC) of the device may drain during longtime transportation or storage. It is recommended to recharge the RTC battery for the well- functioning of the device clock.

  • Page 20: Charge Device Via Cable Interface

    Handheld Thermography Camera M Series User Manual Figure 2-2 Charge Battery 4. When the battery is fully charged, draw the battery from the charging base. 5. Align the ribbed piece on battery with the notch of the device, and insert battery into the device.

  • Page 21: Set Auto Power-Off Duration

    Handheld Thermography Camera M Series User Manual Power On Remove the lens cover, and hold for over three seconds to turn on the device. You can observe the target when the interface of the device is stable. Note It may take at least 30 s until the device is ready for using when you power on it.

  • Page 22: Menu Description

    Handheld Thermography Camera M Series User Manual Figure 2-4 Touch-screen Control Button control Press the navigation buttons to set parameters and configurations. Figure 2-5 Button Control Press , and to select parameters. ● Press to enter the submenu. ● Press to return to the previous menu.
  • Page 23 Handheld Thermography Camera M Series User Manual Table 2-1 Live View Interface Description Descriptions Status bar, where device working status, such as, battery and connections, are displayed. Palette bar and display temperature range. The upper and lower values of the palette bar represent the max.
  • Page 24 Handheld Thermography Camera M Series User Manual Figure 2-6 Main Menu Swipe-down Menu In live view interface, swiping on screen from upper to lower to call the swipe-down menu. With this menu, you can turn on/off device function, change display theme, and adjust screen brightness.
  • Page 25 Handheld Thermography Camera M Series User Manual Descriptions Switch themes, day and night are supported. Adjust screen brightness.

  • Page 26: Chapter 3 Display Settings

    Handheld Thermography Camera M Series User Manual Chapter 3 Display Settings Note Your device will periodically perform a self-calibration to optimize image quality and measurement accuracy. In this process the image will pause briefly and you'll hear a "click" as a shutter moves in front of the detector.

  • Page 27: Set Display Mode

    Handheld Thermography Camera M Series User Manual 3.3 Set Display Mode You can set the thermal/optical view of the device. Thermal, Fusion, PIP, Visual, and Blending are selectable. Steps 1. Select from the main menu. Note In live view, tap the display mode shortcut key on the right to switch display modes quickly.

  • Page 28: Set Alarm Mode Palettes

    Handheld Thermography Camera M Series User Manual 2. Tap on the icons to select a palette type. White Hot The hot part is light-colored in view. Black Hot The hot part is black-colored in view. Rainbow The target displays multiple colors, it is suitable for scene without obvious temperature difference.

  • Page 29: Set Focus Mode Palettes

    Handheld Thermography Camera M Series User Manual Table 3-1 Icon Description Icon Alarm Mode Description Above Alarm Set the alarm temperature, and the targets with the temperature higher than the set value are displayed in red. Below Alarm Set the alarm temperature, and targets with the temperature lower than the set value are displayed in blue.

  • Page 30: Adjust Display Temperature Range

    Handheld Thermography Camera M Series User Manual Table 3-2 Icon Description Icon Palettes Mode Description Above Focus Set the temperature threshold, and the targets with the temperature higher than the set value are displayed with fusion palettes. Below Focus Set the temperature threshold, and targets with the temperature lower than the set value are displayed with fusion palettes.
  • Page 31 Handheld Thermography Camera M Series User Manual Figure 3-2 Level Only Adjustment You can adjust the temperature range in this mode by the following steps: a. Tap on an interest area of the screen. A circle is displayed around the area, and the temperature range readjusts to show as many details of the area as possible, according to the selected area.

  • Page 32: Adjust Digital Zoom

    Handheld Thermography Camera M Series User Manual a. Tap on an interest area of the screen. A circle is displayed around the area, and the temperature range readjusts to show as many details of the area as possible. b. Press...

  • Page 33: Chapter 4 Temperature Measurement

    Handheld Thermography Camera M Series User Manual Chapter 4 Temperature Measurement The thermography (temperature measurement) function provides the real-time temperature of the scene and display it on the left of your screen. The thermography function is turned on by default.

  • Page 34: Set Unit

    Handheld Thermography Camera M Series User Manual 4.1.1 Set Unit Go to Settings → Device Settings → Unit to set the temperature unit and distance unit. 4.2 Set Image Measurement Device measures the temperature of the whole scene and can be manged to display the center, hot, and cold spot in the scene.

  • Page 35: Set Measurement Tool

    Handheld Thermography Camera M Series User Manual 4.3 Set Measurement Tool You can set temperature measurement parameters to improve the accuracy of temperature measurement. Before You Start Set parameters such as Humidity and Reflection Temperature. For detailed explanations, see Set Measurement Parameters .

  • Page 36: Measure By Line

    Handheld Thermography Camera M Series User Manual Distance Set the distance between the target and the device. Temp. Tap to display or hide the temperature measurement result. 5. Press Note If the tool-specific emissivity and distance are set, the measurement is conducted based on the parameters.

  • Page 37: Measure By Rectangle

    Handheld Thermography Camera M Series User Manual Emissivity Refer to Common Material Emissivity Reference to set the emissivity of your target. Distance Set the distance between the target and the device. Max./Min./Average Temperature Tap to enable the temperature types to display. The max. temperature, min. temperature, and average temperature of the line can be displayed on the left of the screen.

  • Page 38: Measure By Circle

    Handheld Thermography Camera M Series User Manual 6. Press to save the settings. Note If the tool-specific emissivity and distance are set, the measurement is conducted based on the parameters. Otherwise, the parameters set from Settings → Measurement Settings are used for measurements.

  • Page 39: Temperature Alarm

    Handheld Thermography Camera M Series User Manual Note If the tool-specific emissivity and distance are set, the measurement is conducted based on the parameters. Otherwise, the parameters set from Settings → Measurement Settings are used for measurements. 7. Repeat the above steps to set other rectangle tools.

  • Page 40: Clear All Measurements

    Handheld Thermography Camera M Series User Manual Audible Warning: The device beeps when target temperature exceeds the alarm threshold. ● Flashing Alarm: The flash light flashes when target temperature exceeds the alarm ● threshold. Alarm Capture: The device captures radiometric images when target temperature exceeds ●...

  • Page 41: Chapter 5 Picture And Video

    Handheld Thermography Camera M Series User Manual Chapter 5 Picture and Video Insert memory card into the device, and then you can record videos, capture images, and mark and save important data. Note Device does not support capturing or recording when the menu is shown.
  • Page 42 Handheld Thermography Camera M Series User Manual Figure 5-1 Editing Image Before Saving Table 5-1 Editing Options Descriptions Text Note Select text note and enter the editing page. Tap on screen to input content and press to save. Voice Note a.

  • Page 43: Record Video

    Handheld Thermography Camera M Series User Manual Objective Settings Go to Settings → Capture Settings → Filename Header to set filename header. View clear thermal Go to Settings → Capture Settings . image on high Enable SuperIR before capturing. Resolution of captured images with resolution screen.

  • Page 44: View And Manage Local Files

    Handheld Thermography Camera M Series User Manual Recorded videos are saved in .mp4 format. These video clips can be played on local device, and any player that support this format (HIKMICRO Analyzer does not support playing this video format.). 2. In the live view interface, hold the trigger to start recording.

  • Page 45: Manage Files

    Radiometric File Name.rv File of this format can not be played on your device. Video Use HIKMICRO Analyzer to play and analyze the files. Note This file type is not supported by certain models of this series. 4. Moving or deleting several files.

  • Page 46: Edit Images

    Handheld Thermography Camera M Series User Manual 1) In an album, tap in the upper right corner of the screen. 2) Press to select a file and press . If you want to select all files, tap in the upper right corner.

  • Page 47: Export Files

    Handheld Thermography Camera M Series User Manual Description Show basic information of the file, example the saving time, resolution of the file. Editing thermal parameters of the image. a. Press or tap on the to call the main menu. b. Modify the image display mode, measurement parameters and tools, palettes, and level &...
  • Page 48 Handheld Thermography Camera M Series User Manual What to do next You can import the captured snapshots to HIKMICRO Analyzer for further data analysis. See the User Manual of HIKMICRO Analyzer (embedded in the client software, Help → User Manual ) for the operation guide.

  • Page 49: Chapter 6 Thermal View Mobile Client Connection

    Handheld Thermography Camera M Series User Manual Chapter 6 Thermal View Mobile Client Connection The device supports both Wi-Fi connection and hotspot. Connect the device to HIKMICRO Viewer, and you can control the device via mobile client. 6.1 Connect via Wi-Fi Before You Start Download and install HIKMICRO Viewer on your phone.

  • Page 50: Chapter 7 Connect Device To Wi-Fi

    Handheld Thermography Camera M Series User Manual Chapter 7 Connect Device to Wi-Fi Steps 1. Go to Settings → Connections → WLAN . 2. Tap to enable Wi-Fi, and the searched Wi-Fi will be listed. Figure 7-1 Wi-Fi List 3. Select Wi-Fi to connect to and a soft keyboard is displayed.

  • Page 51: Chapter 8 Set Device Hotspot

    Handheld Thermography Camera M Series User Manual Chapter 8 Set Device Hotspot With the device hotspot, other equipment with Wi-Fi function can join the device for data transmission. Steps 1. Go to Settings → Connections → Hotspot . 2. Tap to enable hotspot function.

  • Page 52: Chapter 9 Pair Bluetooth Devices

    Handheld Thermography Camera M Series User Manual Chapter 9 Pair Bluetooth Devices Pair your camera with an external bluetooth device to play the audio recorded together with the videos and the images. Steps 1. Select from the main menu. 2. Go to Settings → Connections → Bluetooth .

  • Page 53: Chapter 10 Cast Device Screen To Pc

    Handheld Thermography Camera M Series User Manual Chapter 10 Cast Device Screen to PC The device supports casting screen to PC by UVC protocol-based client software or player. You can connect the device to your PC via a type-C cable, and cast the real-time live view of the device to your PC.

  • Page 54: Chapter 11 Light Settings

    Handheld Thermography Camera M Series User Manual Chapter 11 Light Settings 11.1 Set LED Light Press in live view to turn on/off the LED light. Or tap in the swipe-down menu to quickly turn on/off LED light. 11.2 Set Laser In the live view interface, hold to enable/disable the laser light.

  • Page 55: Chapter 12 Maintenance

    Handheld Thermography Camera M Series User Manual Chapter 12 Maintenance 12.1 View Device Information Go to Settings → Device Settings → Device Information to view the device information. 12.2 Set Date and Time Steps 1. Go to Settings → Device Settings → Time and Date .

  • Page 56: Initialize Memory Card

    Handheld Thermography Camera M Series User Manual 12.5 Initialize Memory Card When a memory card is use on the handheld thermal camera for the first time, it needs to be initialized first. Go to Settings → Device Settings → Device Initialization to initialize the memory card.

  • Page 57: Chapter 13 Appendix

    Handheld Thermography Camera M Series User Manual Chapter 13 Appendix 13.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 Printed Circuit Board 0.91 Concrete 0.95 Ceramic 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Pitch 0.96 Brick 0.95 Sand 0.90 Soil 0.92...

  • Page 58: Device Command

    Handheld Thermography Camera M Series User Manual 13.3 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 13.4 Device Communication Matrix Scan the following QR code to get device communication matrix.
  • Page 59 Facebook: HIKMICRO Thermography LinkedIn: HIKMICRO Instagram: hikmicro_thermography YouTube: HIKMICRO Thermography E-mail: support@hikmicrotech.com Website: www.hikmicrotech.com UD32375B...

This manual is also suitable for:

M30 seriesM10 series
