THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

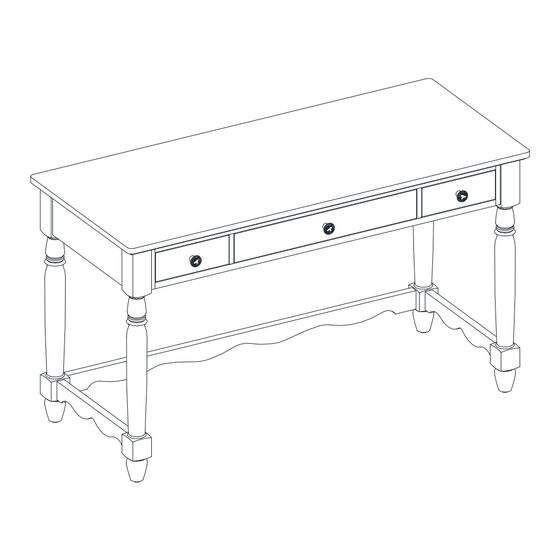

Writing Desk
Stock # PWS336158813041
# PWS336158813042
ADULT ASSEMBLY REQUIRED
1-866-942-5362
www.whalenstyle.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2023-03-07
LOT NUMBER:
DATE PURCHASED:
Rev. 0001-A
/
/
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pioneer Woman PWS336158813041
Summary of Contents for Pioneer Woman PWS336158813041
- Page 1 LOT NUMBER: DATE PURCHASED: Writing Desk Stock # PWS336158813041 # PWS336158813042 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and...
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Writing Desk MODEL: PWS3361588130041 / PWS336158813042 MAXIMUM LOAD 90.7 kg / 200 lb MAXIMUM LOAD 4.5 kg / 10 lb MAXIMUM LOAD 6.8 kg / 15 lb...
- Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Desk Top (Qty. 1) B- Left Side Frame (Qty. 1) C-Right Side Frame (Qty. 1) D- Bottom Stretcher (Qty. 1) (1) 1/4”...
- Page 4 Assembly Instructions Drawer removal Release lever 1. Unpack the unit and confirm that you have all the hardware and required parts listed. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Position the Desk Top (A) upside down on a level and protective surface. 3.
- Page 5 Assembly Instructions The slant holes face upward ③ x 8 ② x 8 ① x 8 DO NOT fully tighten the bolts or screws initially until all the bolts or screws are ready to assemble. To avoid causing damages to the thread, DO NOT over-tighten the bolts or screws. 4.
- Page 6 Assembly Instructions ④ x 2 7. Insert and screw two 50 mm Screws (4) into the slant holes on the Bottom Stretchers (D). Tighten the screws with a Phillips screwdriver (not provided).
- Page 7 Assembly Instructions Floor leveler Ball bearling cart FRONT Ball bearling cart FRONT Drawer installation Ask for assistance to lift the assembled unit upright. 9. To place the drawers back, simply push the ball bearing cart all the way to the end of the slides (in both sides) and align the slide runners on the drawer with the slide tracks on the unit and push it carefully inside until it stops NOTE: If the drawer does not go in smoothly, please take it out and repeat the step...
- Page 8 Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ...
- Page 9 NÚMERO de LOTE:__________ FECHA de COMPRA: Escritorio Serie # PWS336158813041 # PWS336158813042 ENSAMBLE REQUERIDO POR ADULTO Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne esté producto a la tienda donde lo compro. Por favor llame a nuestro departamento de ayuda al cliente teniendo su instructivo y lista de partes para proveer el modelo, nombre de parte o el número de fábrica:...
- Page 10 M Á X I M O P E S O R E C O M E N D A D O FABRICANTE: Whalen Furniture Manufacturing CATALOGO: Escritorio MODELO: PWS3361588130041 / PWS336158813042 CARGA MÁXIMA 90.7 kg / 200 lb CARGA MÁXIMA 4.5 kg / 10 lb CARGA MÁXIMA 6.8 kg / 15 lb ESTA UNIDAD DEBE UTILIZARSE CON LOS PESOS MÁXIMOS INDICADOS.
- Page 11 Lista de partes y material de ferretería Por favor lea completamente las instrucciones y verifique que estén todas las partes y partes de ferretería antes de iniciar el ensamblado. A- Tapa del escritorio (Cant. 1) B- Marco izquierdo (Cant. 1) C-Marco derecho (Cant.
- Page 12 Instructivo de ensamble Para remover los cajones Palanca de liberación 1. Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes requeridas. Ensamblar la unidad en un piso alfombrado o en el cartón vacío para evitar rasguños. 2.
- Page 13 Instructivo de ensamble Los agujeros inclinados apuntan hacia arriba ③ x 8 ② x 8 ① x 8 NO apriete los pernos hasta que todos los pernos estén listos para el ensamble. Para evitar daños a la rosca. NO sobre apriete los pernos. 4.
- Page 14 Instructivo de ensamble ④ x 2 7. Insertar y atornillar 2 pernos de 50 mm (4) en los agujeros inclinados en los soportes inferiores (D). Apretar los pernos con el desarmador estrella (no provisto).
- Page 15 Instructivo de ensamble Nivelador de piso Carrito de baleros FRENTE FRENTE Carrito de baleros Instalación del cajón 8. Pedir asistencia para poner la unidad ensamblada en posición vertical. 9. Para poner los cajones de vuelta, empujar el carrito de baleros todo el camino al final de las correderas (en ambos lados), y luego alinear los complementos de corredera en los cajones con los carriles de corredera en la unidad.
- Page 16 Mantenimiento y Cuidados Use una toalla suave y limpia para evitar daños y rayaduras. Uso de cera para pulir muebles no es necesario. Si desea usar cera, pruébela en un área que no sea visible para revisar su funcionamiento. ...
