Installation Instructions
E
Anti-Tip Device
E1

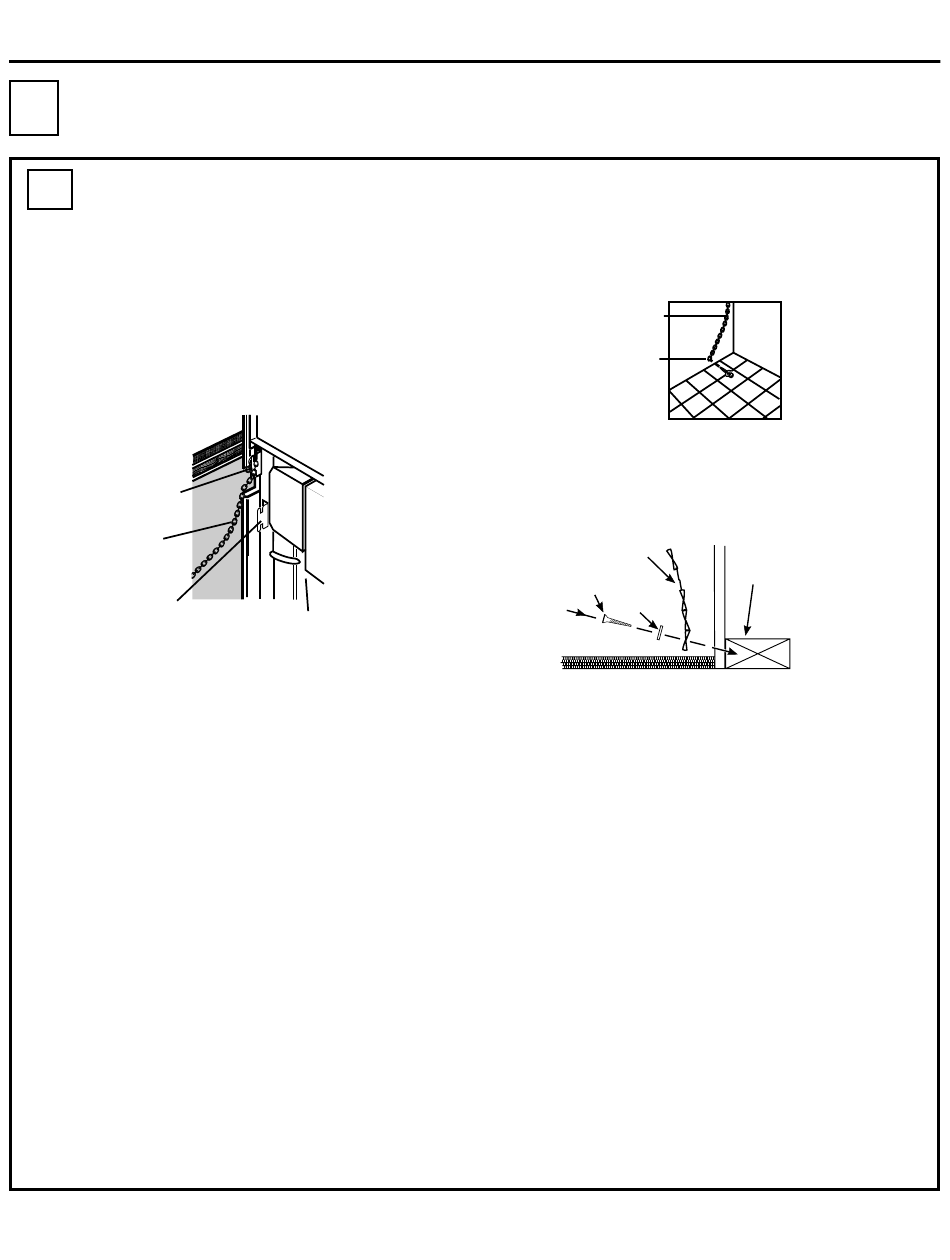

Installing the Anti-Tip
Device
Before placing range in the counter, check
the factory location of the stability device on
the back of the range. This location should
work for most installations. For convenience,
you can hook the stability chain in the upper
set of holes. Make sure there is no structural
interference when using the upper set
of holes.
Bracket
Optional
Location
Chain
Bracket
Factory
Location
The upper set of holes are intended for use
with an optional backsplash kit. If a
backsplash kit is being used, the stability
bracket can be relocated and put on the same
time as the optional backsplash kit. If the
backsplash is not being used, make sure that
there are no countertop structural supports
that will interfere with the stability bracket
when located in the upper set of holes.
1. Decide on a location that has no electrical
wiring or plumbing.
Chain
Washer
and Screw
2. With the long screw provided, anchor the
chain to the floor or wall.
CHAIN
LONG
SCREW
WASHER
3. Make sure the screw is going into the
wall plate or stud at the base of the wall
at least 3/4".
4. Attach the stability chain so that it lines up
with the bracket on the back of the range.
5. Tug the chain to make sure it is securely
fastened.
6. Take the packaging tape and temporarily
attach the loose end of the chain to the rear
of the countertop.
7. Slide the range into the counter, leaving
enough space behind to attach the chain
to the bracket.
8. Slip the nearest link of the chain onto the
bracket. Pull to make sure it is as snug
as possible.
9. Slide the range all the way back. It is normal
to have some slack in the chain, but it should
not be excessive.
9
WALL
PLATE
