Installation Instructions
D

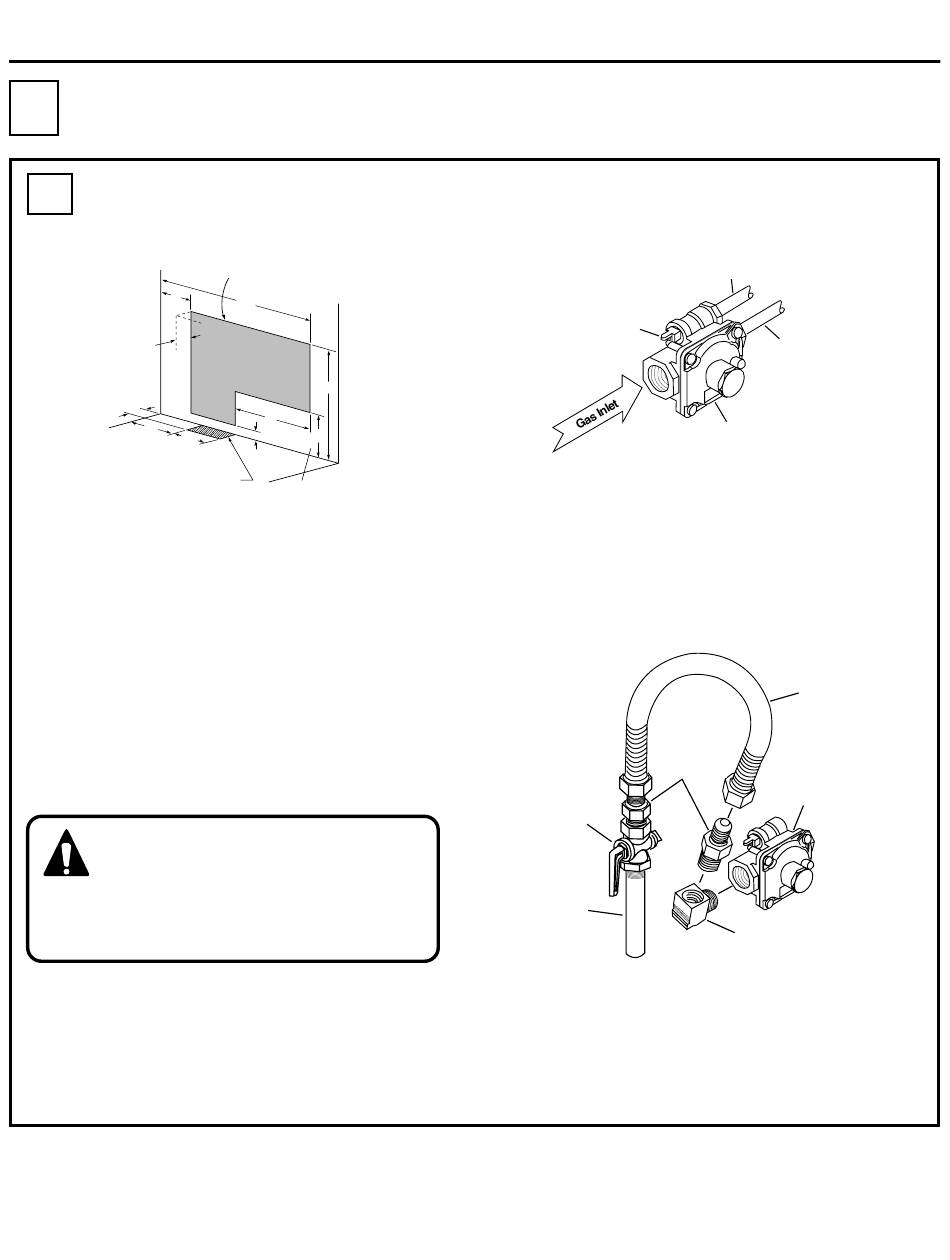

Gas Connections
D1 Making the Connections
Recommended area for 120V outlet on rear
Recommended area for 120V outlet on rear
wall and aea for through the wall connection
wall and area for through the wall connection
of pipe stub and shut-off valve
of pipe stub and shut-off valve
5"
2 1/2"
2 1/2"
7"
5 1/2"
Recommended area for
through the floor connection
of pipe stub and shut-off valve
1. Install a manual shut-off valve in the gas
supply line in an easily accessible
location.
2. Know how and where to shut off the gas
supply to the range.
3. Shut off gas supply before removing an
old range. Leave it off until hookup of new
range is finished.
4. Because solid pipe restricts moving the
range, we recommend use of a C.S.A.
certified metal appliance connector.
NEVER REUSE AN OLD CONNECTOR WHEN
INSTALLING A NEW RANGE.
WARNING: Never reuse old flexible
connectors. The use of old flexible
connectors can cause gas leaks
and personal injury. Always use
new flexible connectors when installing
a gas appliance.
25"
18"
12 1/2"
7"
1 1/2"
Anti-Tip location
5. Before making gas connections, make
sure that the oven shut-off lever (visible at
the back of range) is in the open position.
Shut-Off Lever
Shown in the
Open Position
6. Install 1/2" flare union adaptor to the 1/2"
NPT elbow on pressure regulator.
7. Connect flexible appliance connector to
flare union.
8. Move range into approximate position and
connect flexible connector to gas supply
line with proper flare union adaptor.
Shut-Off
Valve
Gas Supply
Line
9. To prevent gas leaks, put a pipe joint
sealant on all male threads.
10. When you are finished making
connections, be sure that all range knobs
are turned to OFF before you open the
main gas supply valve.
8
Gas Supply
to Oven
Gas Supply to
Top Burner
Pressure Regulator
Pressure Regulator
as Seen from Front
as see from Front of
of Range
Range
Flex
Connector
Flair Unions
Flare Unions
Pressure
Regulator
90˚ Street Elbow
