Installation Instructions
F
Cooktop Burners
F1

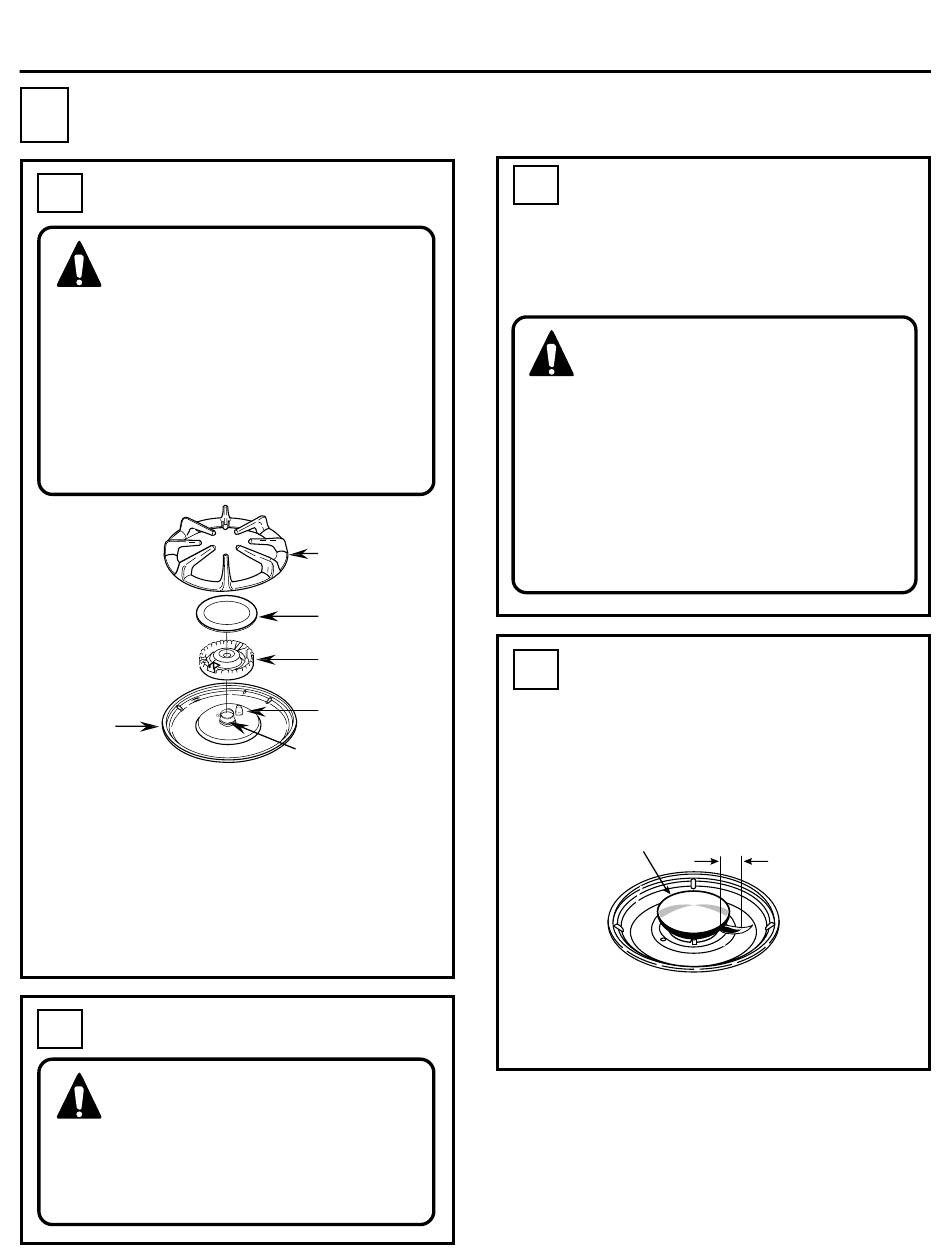

Assembling The Burners
CAUTION: The electrode of the
spark igniter is exposed and the
mixer bowl may have sharp edges.
When cleaning the burner bowl,
be careful not to snag the electrode of
the spark igniter with a cleaning cloth.
Damage to the igniter could occur.
Be careful not to turn on any cooktop
controls while cleaning burner bowls.
A slight electrical shock might result,
which could cause you to knock over
hot cookware.
Burner
Bowl
1. Place the Burner Head onto the Burner
Bowl. Align the opening of the Burner
Head with the location of the Spark Igniter.
2. Place the Burner Cap onto the Burner Head.
3. Place the grate over the burner assembly
and burner bowl. The indentations of the
bowl should match the location pins on
the bottom of the grate.
F2
Check for Leaks
WARNING: Turn the gas supply
on and use a liquid leak detector
(soap solution) at all joints and
connections to check for leaks.
Do not use an open flame to look for
leaks. Be sure all leaks are stopped
before lighting burners.
Burner Grate
Burner Cap
Burner Head
Spark Igniter
Mixer Tube
(Chimney)
10
F3
Pressure Test Information
The maximum allowable pressure for the
regulator is 14" W.C. The minimum pressure
needed to check the regulator setting is 7"
W.C. for natural gas.
The range and its individual shut-off
valve must be disconnected from
the gas supply piping system during
any pressure testing of the gas
supply system at test pressures of more
than 1/2 psig (pounds per square inch
gauge).
The range must be isolated from the gas
supply piping system by closing its
individual shut-off valve during any pressure
testing of the gas supply system at test
pressures equal to or less than 1/2" psig.
F4 About the Cooktop Burners
Turn each burner on. Flames should be blue
in color with no trace of yellow. The burner
flames should not flutter or blow away from
the burner. The inner cone of the flame
should be between 1/2" and 3/4" long.
Cooktop
Burner
Foreign particles in the gas line may cause
an orange flame at first, but this will soon
disappear.
1/2 to 3/4"
1/2" to 3/4"
