Installation Instructions
B

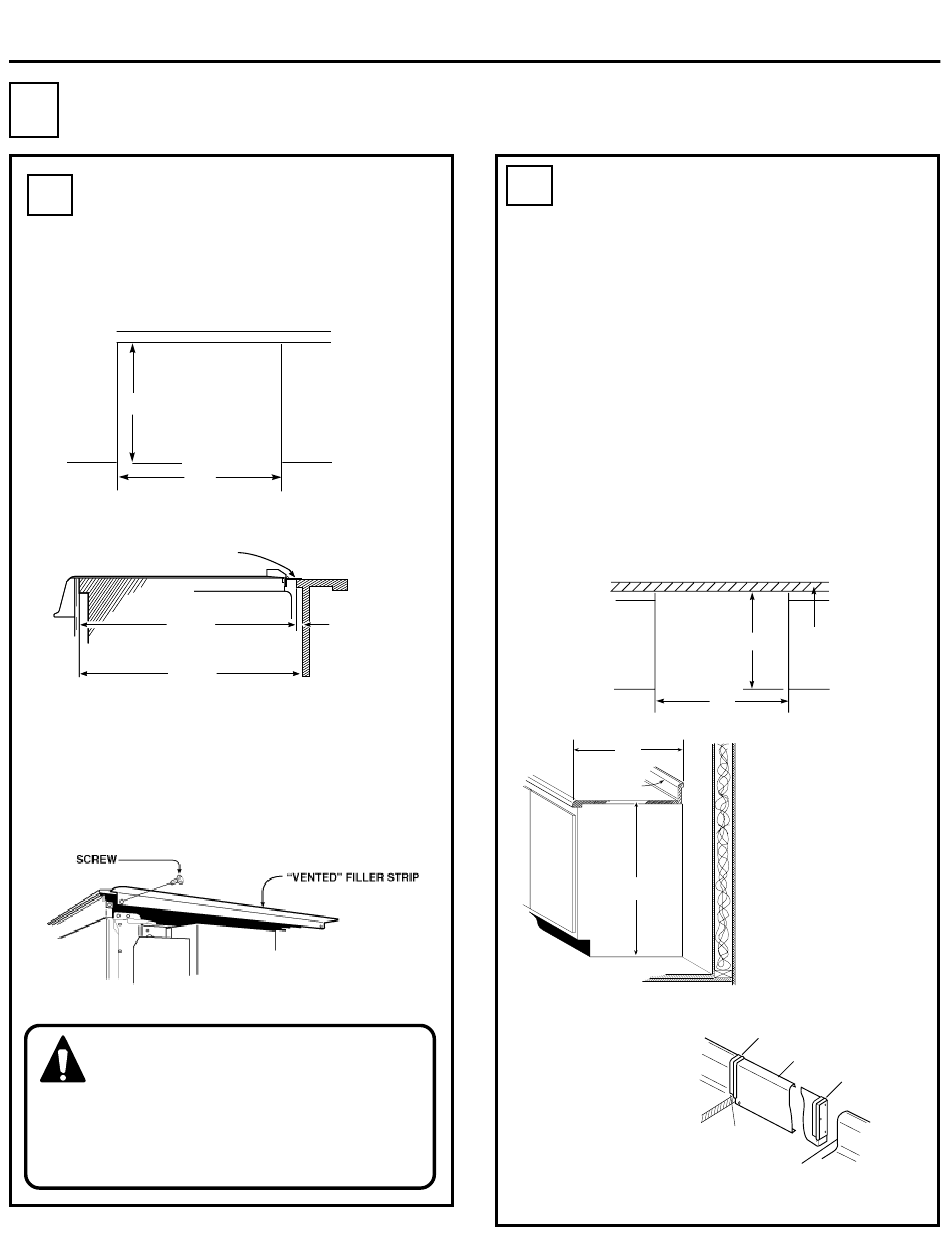

Preparing the Counter
Island Installation
B4
with Rear Filler Strip
If your countertop does not have a
post-formed backsplash, your choice
may be to use the rear filler strip kit.
24 1/2"
30"
Vented Rear
Filler Strip
24 1/2"
Front of Countertop
to Rear of Cutout
25"
From Front of Countertop
to Inside Wall of Cabinet
Use the screws provided to attach the filler
strip to the back of the range.
IMPORTANT: For proper operation
of your self-cleaning gas range,
you must provide the correct
cutout depth as shown. DO NOT let
the countertop or other materials fill the
space between the back edge of the cooktop
and the back of the required cutout.
1/2" Max
Filler Strip
Overlap at
Rear of Cutout
6
cont.
Standard 25" Countertop with
B5
a Post-Formed Backsplash
If your countertop has a post-formed
backsplash, your choice may be to use the
4" backguard kit. Your choice may be:
Kit No. JXS31/ 80501 (White)
Kit No. JXS32/ 22555 (Brushed Chrome)
Kit No. JXS33/ 80508 (Bisque)
Kit No. JXS34/ 80509 (Black)
You may order either of these kits from your
Service Center. The backguard kit will attach
to the back of the range and fill in the space
between the back of the range and wall.
When using the backsplash kit, the post-
formed backsplash of the countertop must
be cut.
(Top view of counter cutout)
25"
Post-Formed
Backsplash
35 7/8" Min.
38" Max.
(End Caps Overlap Counter Backsplash)
Trim End Cap
Rear Wall
25"
30"
Backguard
(Preassembled)
to fit
Post-Formed Counter
Backsplash Ends
