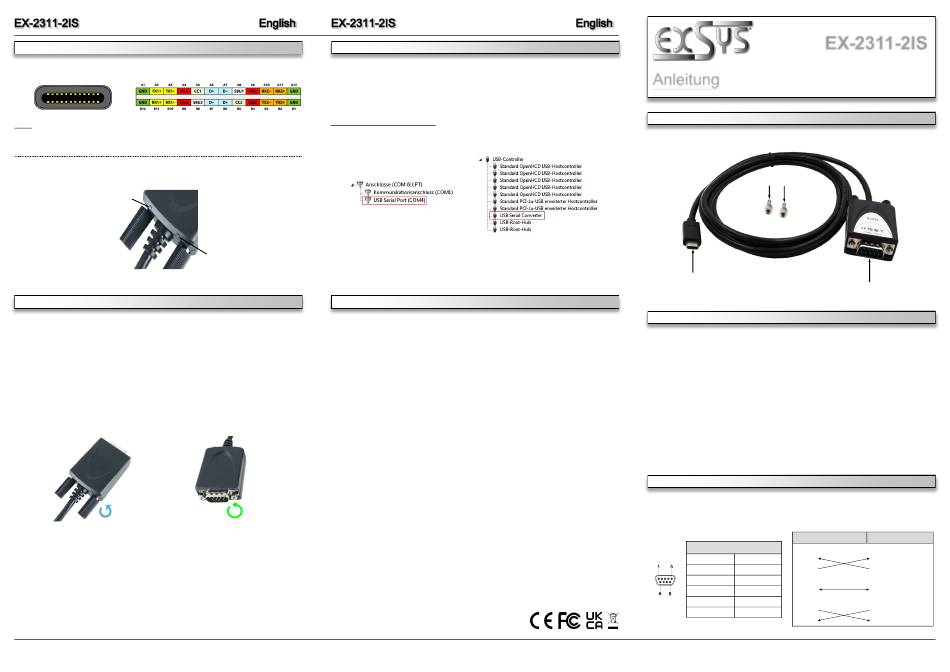

Exsys EX-2311-2IS Manual

CONNECTORS & STATUS LED'S
USB 2.0 C-Plug:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on
both sides.
Status LED's:
RXD
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-2311-2IS. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-2311-2IS USB to the USB C-Port at the your PC.
2. If you would like to screw the serial cable to the 9 Pin connector of the EX-2311-2IS, then
unscrew the screws (see Picture 1) and screw the supplied hexagon nuts into the holes on
the EX-2311-2IS (see Picture 2). Now you can attach the serial cable to the EX-2311-2IS.
Remove the Screws Insert the Hexagon Nuts
Picture 1
3. When you are ready you can start your PC and continue with the point „Driver Installation".
5
DRIVER INSTALLATION
After the hardware installation, the operating system will recognize the device automatically and
install the drivers. If the driver should not be installed automatically, please download the driver
from our homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your
operating system and install the driver. Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
TXD
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Picture 2
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
EX-2311-2IS
Anleitung Anleitung
Vers. 1.0, 21.12.22 Vers. 1.2 / 22.08.24
AUFBAU
2x Sechskantmuttern
USB 2.0 C-Stecker
zum Anschluss an PC
S1: 9 Pin Stecker Seriell RS-232
BESCHREIBUNG & TECHNISCHE DATEN
Das USB-C zu RS-232 Kabel EX-2311-2IS stellt eine serielle RS-232 High Performance UART
16C550 Schnittstelle mit 15KV Überspannungsschutz & 4KV Isolation zur Verfügung. Es wurde
entwickelt um serielle Geräte am USB 1.1 bis 3.2 Gen 2 Bus eines PCs, Servers oder einer
Workstation anzuschließen. Durch die einfache Installation am USB-Port muss der Rechner
nicht geöffnet werden und der Konverter kann bei laufendem Betrieb installiert werden. Die
Rändelschrauben können durch die beiden mitgelieferten Muttern ersetzt werden, wenn das
anzuschließende Kabel über Schrauben verfügt.
Kompatibilität: USB 1.1, 2.0, 3.0, 3.1, 3.2
Betriebssysteme: Win 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ 11/ Server 20xx/ Linux/ MAC
Anschlüsse: 1x USB 2.0 C-Stecker, 1x 9 Pin Stecker Seriell RS-232
Lieferumfang: EX-2311-2IS, 2x Sechkantmutter, Anleitung
ANSCHLÜSSE & STATUS LED'S
RS-232 Anschlussbelegung:
DB 9M Verdrahtung RS-232
DB9 (EX-2311-2IS)
9 Pin Stecker Seriell RS-232 1 —
Pin Signal Pin Signal 2 RXD
3 TXD
1 - 6 -
4 —
2 RXD 7 RTS
5 GND
3 TXD 8 CTS
6 —
4 - 9 RI
7 RTS
5 GND
8 CTS
1
RS-232 (Endgerät)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
