Exsys EX-1322 Manual

CONNECTORS
RS-232 Assignments:
DB 9M RS-232 Cable Wiring
DB9 (EX-132x)
Serial 9 Pin D-SUB Connector 1 DCD
2 RXD
Pin Signal Pin Signal
3 TXD
1 DCD 6 DSR
4 DTR
2 RXD 7 RTS
5 GND
3 TXD 8 CTS
6 DSR
4 DTR 9 RI
7 RTS
5 GND
8 CTS
USB A-Connector:
USB 2.0 A-Connector
Pin Signal Pin
1 VCC 3
2 DATA- 4
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1322 / EX-1324. Please refer your computers reference manual whenever in
doubt.
1. Connect the EX-1322 / EX-1324 USB to the USB A-Port at the your PC.
2. When you are ready you can start your PC and continue with the point Driver Installation.
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please insert the Driver CD into your
CD-Rom drive (e.g. Drive D:) and open the folder „USB_to_IO/FTDI". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
RS-232 (Device)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
If you see this or a similar information the device is installed correctly.
Signal
CLEANING
DATA+
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
GND
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
STRUTTURA
USB TYPE-A
USB TYPE-A
Montaggio a parete o su guida
Din
DESCRIZIONE & DATI TECNICI

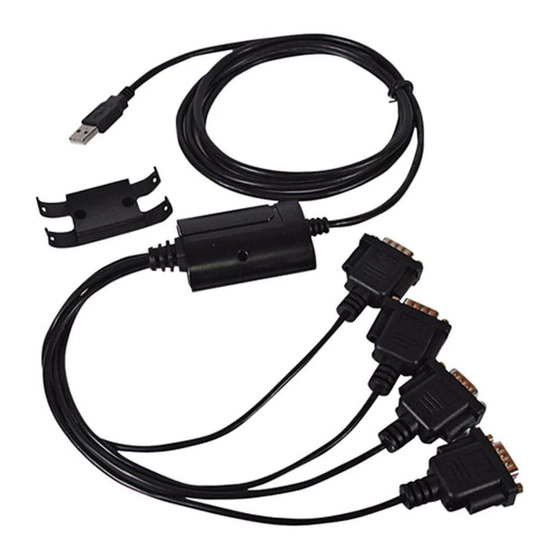

L'EX-1322 o EX-1324 è un cavo Convertitore da USB 2.0 a due o quattro interfacce RS-232 con
porte FIFO 16C550 per il collegamento di dispositivi periferici seriali RS-232 ad alta velocità (ad
es. modem, plotter, ecc.). L'EX -1322 / EX-1324 è compatibile con Hot Plug & Play. Non sono
necessari ponticelli o impostazioni per impostare gli indirizzi I/O e gli interrupt.
eseguiti automaticamente dal BIOS del sistema e durante l'installazione del sistema operativo.
L'EX-1322 / EX-1324 è inoltre dotato di una staffa per il fissaggio a parete o su guida di
supporto.
Compatibilità:
Sistema Operativo:
Attacco:
Confezione:
Certificati:
6
Manuale
Vers. 1.1 / 29.09.16
EX-1322
al PC
LED
acceso
EX-1324
al PC
LED
acceso
Le viti non sono incluse
USB 2.0
WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Mac OS/ Linux
2x o 4x 9 Pin D-SUB, 1x USB A-Stecker
EX-1322 oppure EX-1324, Driver su CD, Manuale , montaggio a
parete o su guida Din
CE / FCC / RoHS / WEEE DE97424562
1
EX-1322
EX-1324
RS-232
Porta 1
RS-232
Porta 2
RS-232
Porta 1
RS-232
Porta2
RS-232
Porta 3
RS-232
Porta 4
Vengono
