ASROCK Rack SPC741D8-2L2T/BCM Quick Installation Manual

*15G065273000AK*
P/N: 15G065273000AK V1.0
Quick Installation Guide
SPC741D8-2L2T/BCM | SPC741D-2T/BCM
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

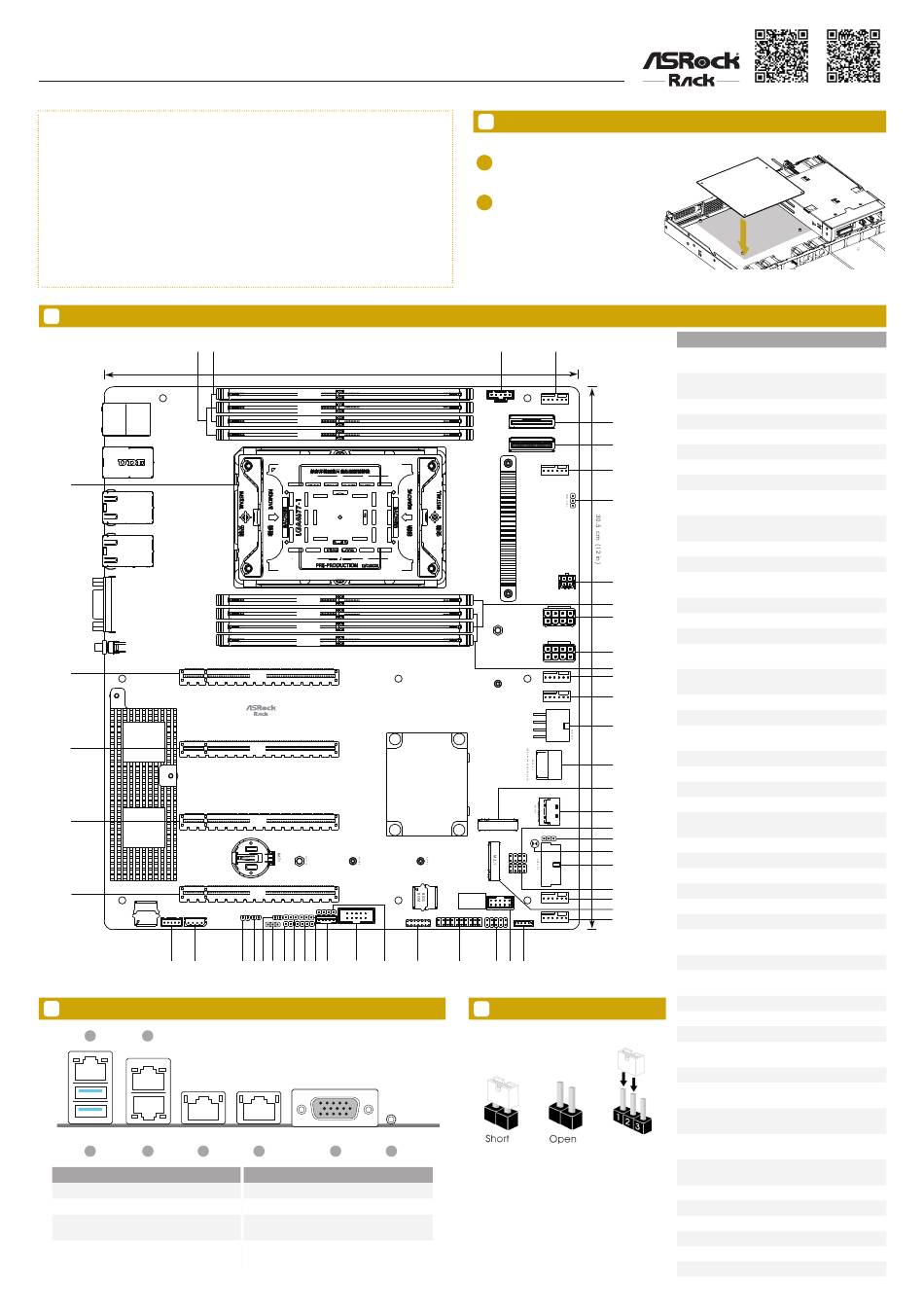

2 Motherboard Layout
1 2
USB 3.2
Gen1 Ports
IPMI_LAN
T:USB3_2
B:USB3_1
(SPC741D8-2L2T/BCM only)
LAN_3_4
50
LAN1
LAN2
VGA1
UID1
49
SPC741D8-2L2T/BCM
Broadcom
57416
48
47
ASPEED
AST2600
46
BMC
BMC_SMB_1 IPMB_1
ROM
45 44
3 I/O Panel
2 4
1 3 5
No. Description
1 USB 3.2 Gen1 Ports (USB3_1_2)
2 LAN RJ-45 Port (IPMI_LAN)
1G LAN RJ-45 Port (LAN3)
3
(SPC741D8-2L2T/BCM only)
1G LAN RJ-45 Port (LAN4)
4
(SPC741D8-2L2T/BCM only)
26.7 cm (10.5 in)
DDR5_D1
DDR5_C1
DDR5_B1
DDR5_A1
CPU0
DDR5_E1
DDR5_F1
DDR5_G1
DDR5_H1
PCIE7
SPC741D8-2T/BCM
PCIE5
PCIE3
PCIE1
FRONT_LED_LAN34
FLASH_SEC BIOS_SWAP PASSWORD
_OVERRIDE1 _OVERRIDE1 _CLEAR1 PECI1 TR1
ME_RECOVERY1
CPU1_HSBP1
COM1
NMI_BTN1 SPEAK1
43 42 41 40 39 38 37 36 35 34 33
6 7
No. Description
5 10G LAN RJ-45 Port (LAN1)
6 10G LAN RJ-45 Port (LAN2)
7 VGA Port (VGA1)
8 UID Switch (UID1)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
3 4
PSU_SMB1
FAN1
MCIO1
MCIO2
FAN2
ATX4PIN1
NUT110_2
ATX12V1
ATX12V2
NUT80_2
FAN3
FAN4
Intel C741
M2_2
MINISAS_1
CLRMOS1
SATA0_SGPIO
SATA1_SGPIO
USB_2_3
Dr. Debug
FAN5
AUX_PANEL1 PANEL1
TPM_BIOS_PH1
RAID_1
FAN6
32 31 30 29 28
4 Jumper Settings
8
W hen the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1 and
pin2 are "Short" when a jumper cap is placed on these
2 pins.
www.asrockrack.com SPC741D8-2L2T/BCM
No. Description
2 x 288-pin DDR5 DIMM Slots
1
(DDR5_A1, DDR5_C1)
2 x 288-pin DDR5 DIMM Slots
2
(DDR5_B1, DDR5_D1)
3 PSU SMBus Header (PSU_SMB1)
4 System Fan Connector (FAN1)
5
5 Mini Cool Edge IO x8 Connector (MCIO1)
6
6 Mini Cool Edge IO x8 Connector (MCIO2)
7 System Fan Connector (FAN2)
7
8 PWM Configuration Header (PWM_CFG1)
Micro-Fit ATX 4Pin Power Connector
8
9
(ATX4PIN1)
2 x 288-pin DDR5 DIMM Slots
10
(DDR5_E1, DDR5_G1)
11 ATX 12V Power Connector (ATX12V1)
12 ATX 12V Power Connector (ATX12V2)
2 x 288-pin DDR5 DIMM Slots
9
13
(DDR5_F1, DDR5_H1)
10
14 System Fan Connector (FAN3)
11
15 System Fan Connector (FAN4)
16 ATX 12V Power Connector (ATX12V3)
SATA3 Connectors
12
17
(SATA3_1)(Upper), (SATA3_0)(Lower)
13
M-key M.2 Socket (M2_2)
14
18
(Type 22110/2280)
15
19 Mini Cool Edge IO x4 Connector (MCIO3)
20 SATA SGPIO Connector (SATA0_SGPIO)
16
MiniSAS HD SATA/PCIE Selection Jumper
21
(MINISAS_1)
22 Clear CMOS Pad (CLRMOS1)
17
23 USB 3.2 Gen1 Header (USB3_3_4)
18
24 SATA SGPIO Connector (SATA1_SGPIO)
25 System Fan Connector (FAN5)
19
M-key M.2 Socket (M2_1)
26
20
(Type 22110/2280/2242)
21
27 System Fan Connector (FAN6)
22
28 Virtual RAID On CPU Header (RAID_1)
23
29 USB 2.0 Header (USB_2_3)
24
30 System Panel Header (PANEL1)
25
31 Auxiliary Panel Header (AUX_PANEL1)
26
27
32 SPI TPM Header (TPM_BIOS_PH1)
Front LAN LED Connector
33
(FRONT_LED_LAN34)
34 Serial Port Header (COM1)
Backplane PCI Express Hot-Plug Connector
35
(CPU1_HSBP1)
36 Thermal Sensor Header (TR1)
37 Speaker Header (SPEAK1)
38 CPU PECI Mode Jumper (PECI1)
Non Maskable Interrupt Button
39
(NMI_BTN1)
40 ME Recovery Jumper (ME_RECOVERY1)
Password Reset Jumper
41
(PASSWORD_CLEAR1)
BIOS Swap Override Jumper
42
(BIOS_SWAP_OVERRIDE1)
Flash Override Jumper
43
(FLASH_SEC_OVERRIDE1)
Intelligent Platform Management Bus
44
Header (IPMB_1)
45 BMC SMBus Header (BMC_SMB_1)
46 PCI Express 5.0 x16 Slot (PCIE1)
47 PCI Express 5.0 x16 Slot (PCIE3)
48 PCI Express 5.0 x16 Slot (PCIE5)
49 PCI Express 5.0 x16 Slot (PCIE7)
50 LGA 4677 CPU Socket (CPU0)
SPC741D8-2T/BCM
(SPC741D8-2T/BCM only)
