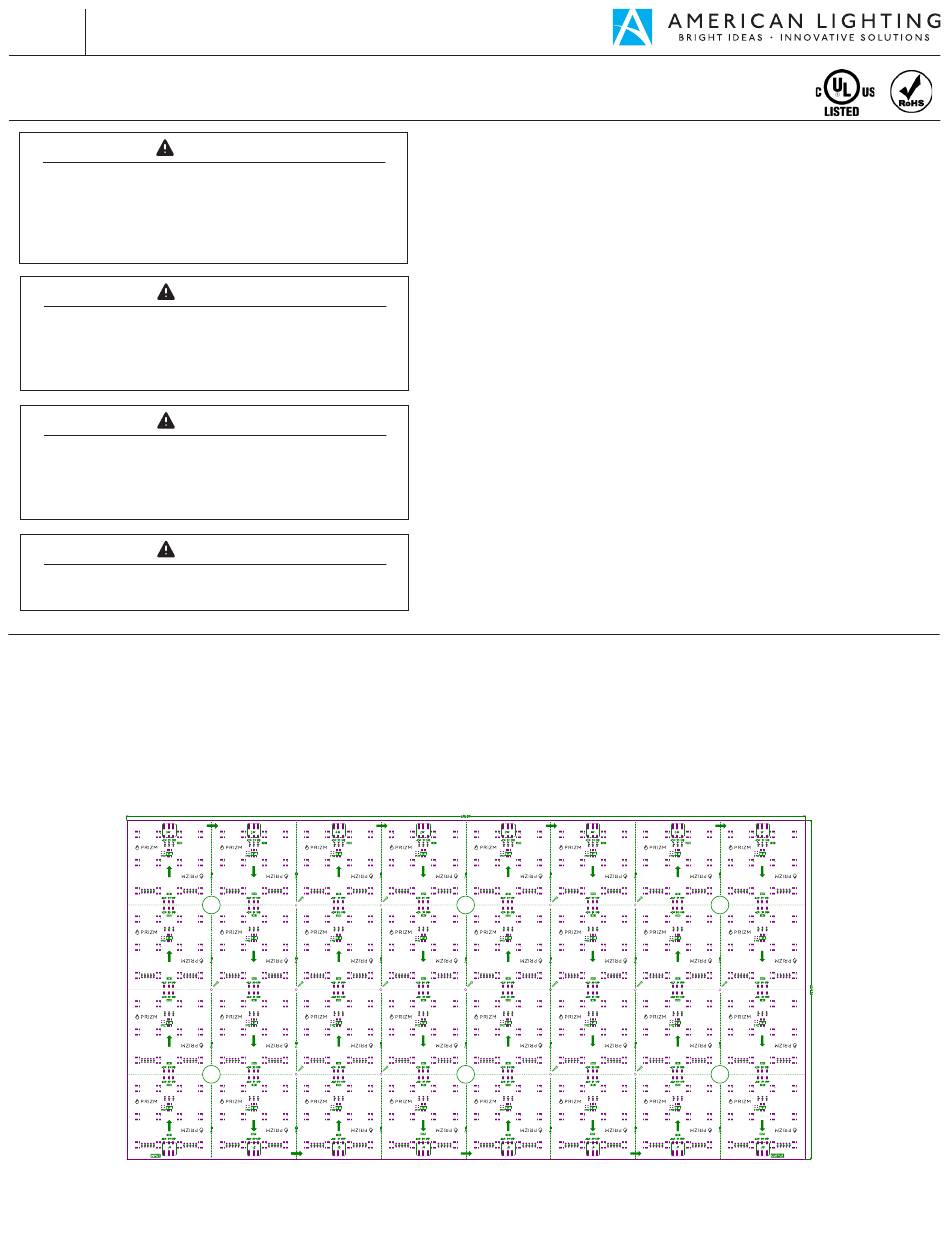

American Lighting TRULUX CANVAS CNVS-PXLRGBW-12x24 Series Installation Instructions

24V TRULUX
INSTALLATION INSTRUCTIONS
CNVS-PXLRGBW-12x24 Series
WARNING
These products may represent a possible shock or fire
hazard if improperly installed or attached in any way.
Products should be installed in accordance with these
instructions, current electrical codes, and/or the current
National Electric Code (NEC).
WARNING
Use only with 24V DC drivers with a wattage capacity that
can handle the total load. Factory warranty will be void if
used with a non-recommended power supply, transformer
or driver.
WARNING
To reduce the risk of fire, electric shock or injury to
persons, make sure that the electrical power to the
system is disconnected at the source prior to installation
or any servicing.
WARNING
Never fold Trulux® or bend past the minimum bending
radius of 1" whether lighted or unlighted.
LAYOUT CONSIDERATIONS
Series
CNVS-PXLRGBW Series
On-Board Wire Connector: 5A/24V/suitable for AWG 22-18 cable
PRODUCT INFORMATION
RGBW IP54 LED sheets include (1) 3ft 18AWG 3pin wire with Wago splice connector for power connection, (4) 12" pieces of 18AWG 3pin wire,
(16) attached wire connectors, and (6) attached bumpers. 2" 18AWG 'I' connectors are available, sold separately. PIXEL RGBW LED sheet will
require the use of an SPI control system (not included).
©2023 American Lighting, Inc. REV2350 www.AmericanLighting.com
CANVAS
®
LED SHEET - PIXEL RGBW (IP54)
Wattage
60W/sheet (1.875W/section) 3" x 3"
SAFETY INFORMATION
• Read all installation instructions before beginning; if not qualified, do not
attempt installation. Contact a qualified electrician.
• To reduce the risk of fire, electric shock, or injury to persons, pay close
attention to this manual and stay within its guidelines when using this
product. Save these instructions for future use.
• Do not cover this product with paper surface coverings, fabrics,
streamers, or other similar combustible materials.
• Do not operate while coiled.
• This IP54 rated LED sheet is suitable for indoor use in dry and damp
locations, but not for direct contact with water or moisture Do not
submerge flexible light in liquids, or use the product in the vicinity of
standing water or other liquids, or where water can accumulate.
• Do not route cords or LED sheet light through walls, ceilings, doors,
windows, or any similar part of the building structure.
• Secure LED sheet light using only the adhesive provided on the LED
Sheet and/or screws utilized at the designated screw hole locations.
• Do not secure this product or its cord with staples, nails, or like means
that may damage the outer jacket or cord insulation.
• Do not use if there is any damage to the LED sheet light, diodes or
power cord insulation; inspect periodically.
• Do not install on gates or doors, or where subject to continuous flexing.
• Do not install in airtight tanks or enclosures of any kind.
• Size your 24V DC driver (sold separately) appropriately for your run
distance. Be sure not to load a driver to 100% as this will reduce its
efficiency; a 90% maximum load is recommended.
• The maximum recommended wattage per run from the same power
supply is 240W. Each LED sheet is rated at 60W.
Cut Increment Maximum run
240W
Page 1 of 2 11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633
LED Sheet Size Pixels
12"h x 24"w 32/128 RGBW CH
