American Lighting Spektrum+ SPKPL-PVLSF-24-24 Series Installation Instructions

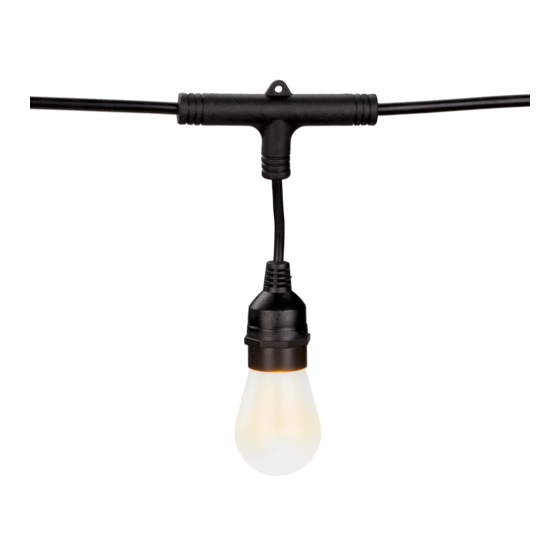

Spektrum+ Pavilion Light String
120V AC
INSTALLATION INSTRUCTIONS
SPKPL-PVLSF-24-24-XX
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING
These products may represent a possible shock or fire haz-
ard if improperly installed or attached in any way. Products
should be installed in accordance with these instructions,
current electrical codes, and/or the current National Electric
Code (NEC) and/or Canada Electrical Code. (CEC).
WARNING
Disconnect supply power at the source prior to installation,
lamping, re-lamping, moving or servicing in any way .
WARNING
DO NOT OPERATE LIGHT STRING WITH ANY UN-LAMPED
SOCKETS! Make sure each socket has a lamp securely
fastened before connecting to a power source.
WARNING
Lamps are no replaceable. If a lamp is missing or broken, so
not use product.
WARNING:
When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric
shock, and personal injury, including the following:
READ ALL INSTRUCTIONS
• Use only two-wire outdoor extension cords that have two-prong plugs and receptacles that accept the light string's plug.
• Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the circuit(s) or outlet(s) to be used for the wet location portable light
string luminaire. Receptacles are available having built-in GFCI protection and are able to be used for this measure of safety.
• Use only with an extension cord for outdoor use such as an extension cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW,
STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW, or SJTOOW.
SAVE THESE INSTRUCTIONS
SUSPENDING LIGHT STRINGS:
L ight sockets must be suspended so that bulbs are facing down only. DO NOT MOUNT THE LIGHT STRINGS WITH SOCKETS FACING UPWARD!
1. Light string must be securely attached to a support structure at each end of each span. The maximum unsupported span distance for 48' Cord
& Plug Light String is 20 feet (10 sockets).
2. Secure light string to supporting hardware (eyebolts, brackets, etc., not provided) using cable ties (not included). See Figure 1.
3. Cover the unused female receptacle at the last light string with electrical tape to preclude the entrance of water.
4. For spans exceeding 20 feet, use properly rated cable support system and cable ties (neither are provided with the light string) and follow local
codes for suspended structures and loads. See www.americanlighting.com for steel cable support systems, if needed.

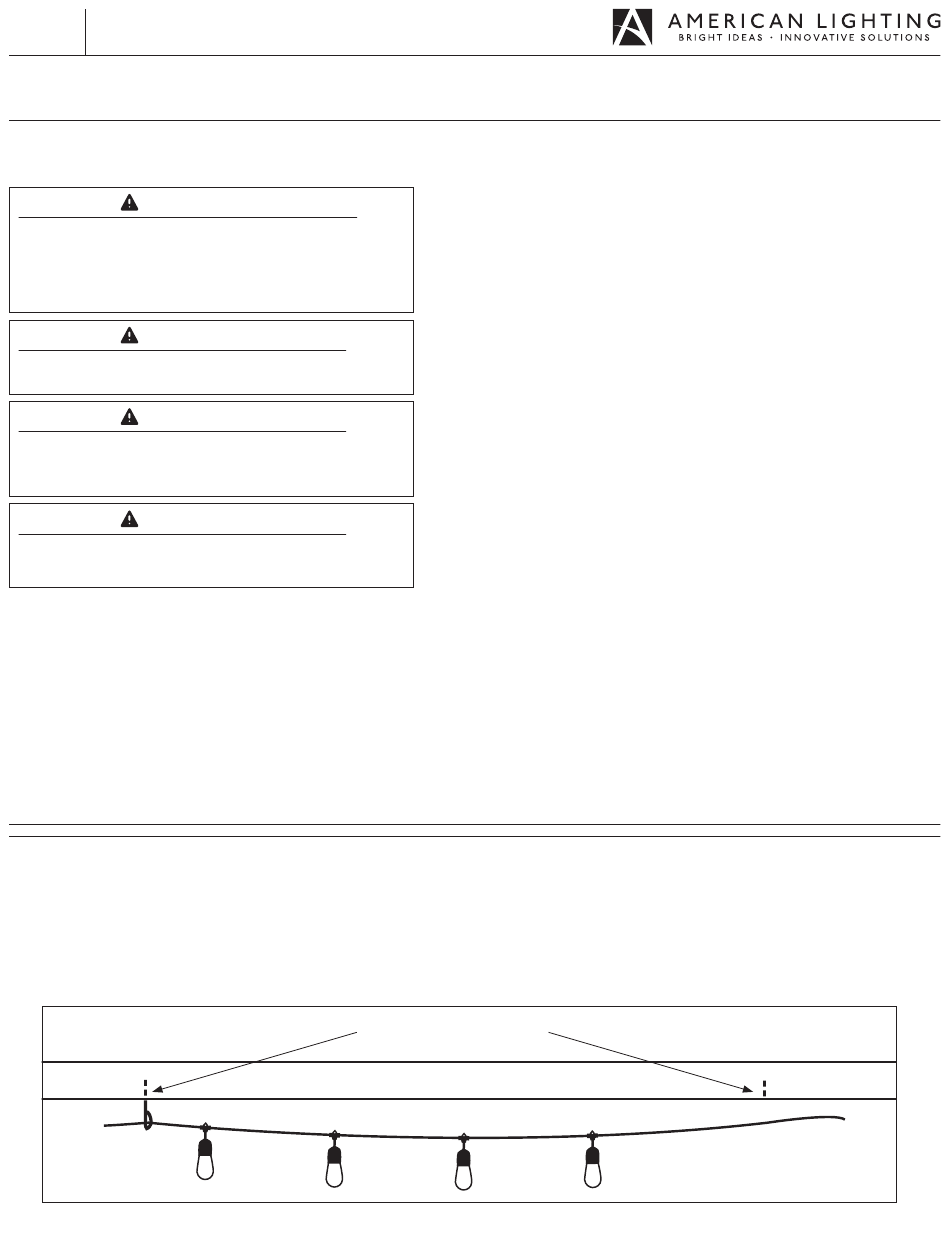

FIGURE 1
©2024 American Lighting, Inc. REV2445 www.AmericanLighting.com
before beginning.
for future use.
SAVE THESE INSTRUCTIONS
Supporting hardware
SAFETY INFORMATION
• To reduce the risk of fire, electric shock, or injury to persons, pay close
attention to this manual and stay within its guidelines when using this product.
• Keep combustible material clear of lamps (bulbs). DO NOT allow bulbs or sockets
to come into contact with walls, ceiling, fabrics associated with shades, blinds, or
other materials. Lamped sockets should hang freely in a downward direction with
a minimum of 3" space from the nearest object. DO NOT cluster the lamps.
• Suitable for wet location use. DO NOT submerge in water.
• Not intended for installation inside ceiling, soffits, cabinets or other enclosed spaces.
• Avoid damage to the insulation during installation. DO NOT pierce or otherwise
compromise wire's or socket's outer covering, jacket or sheathing.
• This is an electric product-not a toy! To avoid risk of fire, burns, personal
injury and electric shock it should not be played with or placed where small
children can reach it.
• Do not use this product for other than its intended use.
• Do not hang ornaments or other objects from cord, wire, or light string.
• Do not close doors or windows on the product or extension cords as this
may damage the wire insulation.
• Maximum interconnected units is 2. Do not connector more than 2 units.
IMPORTANT:
The maximum distance to the receptacle is determined by
the length of the cord provided and the appropriate extension cord if used.
(sold separately)
Structural support
Page 1 of 2 11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633
