American Lighting PRIZM PZM-DMX-RGBW-30CH Installation Instructions

12V 30Ch. DMX RGBW Controller
INSTALLATION INSTRUCTIONS
PZM-DMX-RGBW-30CH
WARNING
These products may represent a possible shock or
fire hazard if improperly installed or attached in any
way. Products should be installed in accordance with
these instructions, current electrical codes, and/or the
current National Electric Code (NEC).

USING PZM-DMX-RGBW-30CH FOR COLOR CONTROL:

If you are wanting DMX mixing level sliders; and/or you want to program and instantly recall preset colors, then the DMX-RGBW-30CH should
be used as your color lighting controller. Note: DMX-RGBW-30CH must be located in a dry location. It includes a 12V DC wall adapter and 7ft
power cord which requires a 120V outlet.
For wired DMX control, connect an XLR3 cable to the "DMX OUT" port on back of unit. Turn power switch to "On" option. See Figure 2.
Unit has a built-in backup battery that charges when unit is plugged in and activates automatically when needed.

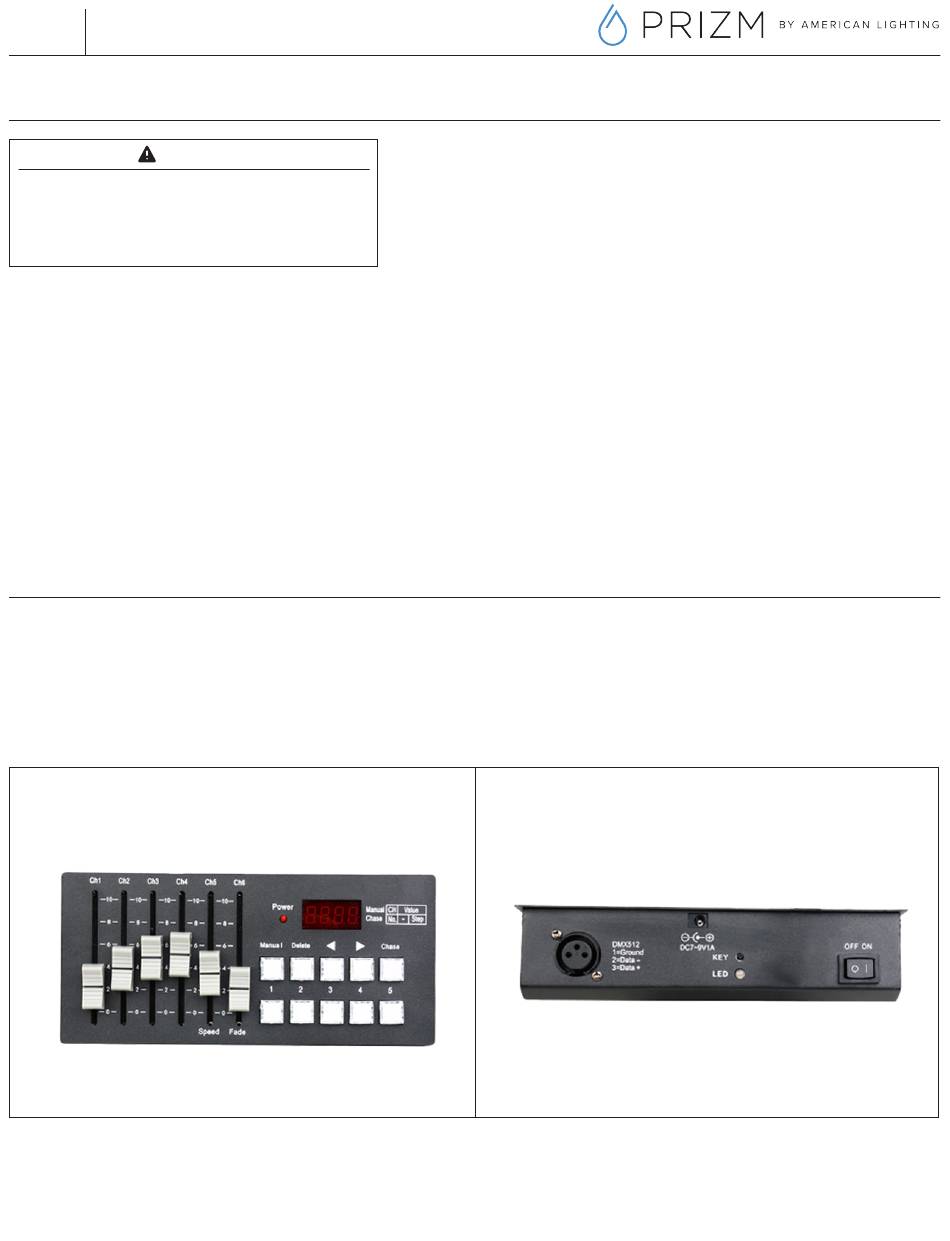

FIGURE 1
©2023 American Lighting, Inc. REV2324 www.AmericanLighting.com
Front View

SAFETY INFORMATION

• Read all instructions before beginning. Save these instructions for future use.
• To reduce the risk of fire, electric shock, or injury to persons, pay close attention to this
manual. Stay within its guidelines when using this product.
• All units must be unplugged before installing or servicing in any way.
• Do not route cords or units through walls, doors, windows, or any similar part of a
building structure.
• Do not use if there is any damage to the unit and/or the power cord's insulation. Inspect
periodically.
• The unit is rated for dry locations only.
• Do not let the unit stand in water or liquid, nor locate where water can accumulate.
• Secure units with mounting hardware appropriate for the mounting surface. Do not
secure unit or its power cord with staples, nails, or like materials that may damage
insulation.
• Do not attempt to open or service this unit. None of its parts are serviceable by the user.
• Do not exceed the maximum run of 32 interconnected fixtures. American Lighting
recommends no more than 30 fixtures per run. For any project that requires more than
thirty fixtures, please consult factory for suggestions.
• Do not cut the plug off or alter it in any way.
• This controller includes a 12V DC wall adapter and 7ft power cord which requires a
120V outlet
• Provide a grounded receptacle for use with unit. If using outdoors, outlet(s) must also be
GFCI and weatherproof.
FIGURE 2
Page 1 of 2
Back View
