American Lighting SPKPL-RGBTW-4MKIT Installation Instructions

24V SPEKTRUM+ RGBTW (IP54) KIT
INSTALLATION INSTRUCTIONS
SPKPL-RGBTW-4MKIT
WARNING
These products may represent a possible shock or fire
hazard if improperly installed or attached in any way.
Products should be installed in accordance with these
instructions, current electrical codes, and/or the current
National Electric Code (NEC).
WARNING
Use only included 24V DC driver. Factory warranty will
be void if used with a non-recommended power supply,
transformer, or driver.
WARNING
To reduce the risk of fire, electric shock or injury to
persons, make sure that the electrical power to the
system is disconnected at the source prior to installation
or any servicing.
WARNING
Never fold Trulux® tape light or bend past the minimum
bending radius of 1" whether lighted or unlighted.

KIT CONTENTS:

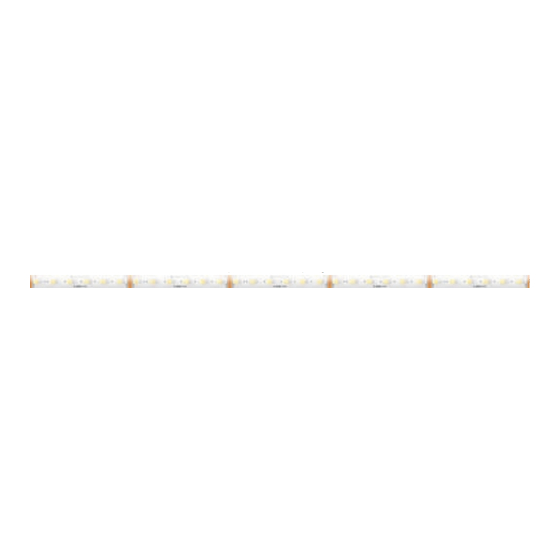

(1) 13.1ft (4m) Reel of RGBTW IP54 (unjacketed) tape light
(1) 1.5A/CH In-line Spektrum+ LED Controller/Receiver
(1) SPKPL-CTRL-W-RGBTW Handheld Spektrum+ Remote Control
(1) 24V DC Plug-in Power Supply (3A)

LAYOUT CONSIDERATIONS:

Pay close attention to the following tape light maximum run lengths. Use only the 24V DC power supply provided.
Tape Light Series Wattage
SPTL-RGBTW Series 7W/ft
INSTALLING TAPE LIGHT (See Figure 1):
Disconnect power from source prior to attempting installation. Make all connections and mount in place prior to providing power to system. Tape Light includes a 3M
adhesive backing: Allow adhesive to cure 24 hours prior to first use. This product is designed to be mounted to a smooth, clean, non-moving surface.
1. Determine the placement of tape light and whether there will be cuts, splices, or jumpers needed. Make any cuts, splices, or
jumps prior to moving on to Step 2. See CUTTING & LINKING TAPE LIGHT on next page for more information on
cutting and/or linking Tape Light. Consider the placement of the power supply and ensure there is no tension from start of
tape light to power supply.
2. Peel the protective backing from the tape light and press the tape light into place. For best results, once the VHB protective sheet is removed, the tape should not
be repositioned, removed, or re-used.
3. Connect the mating DC plugs from the start of the tape light reel to the LED controller/receiver.
4. Connect the mating DC plugs from the LED controller/receiver to the DC power supply.
5. Plug DC power supply into standard 120V wall socket.
Note: To reset to factory default setting, disconnect & reconnect LED Controller/Receiver from 24V DC Plug-in Power Supply to power ON then OFF x 3 times in
succession. The light will pulse when it has been reset and is ready to be paired to the app. See Spektrum+ App Guide for pairing instructions.

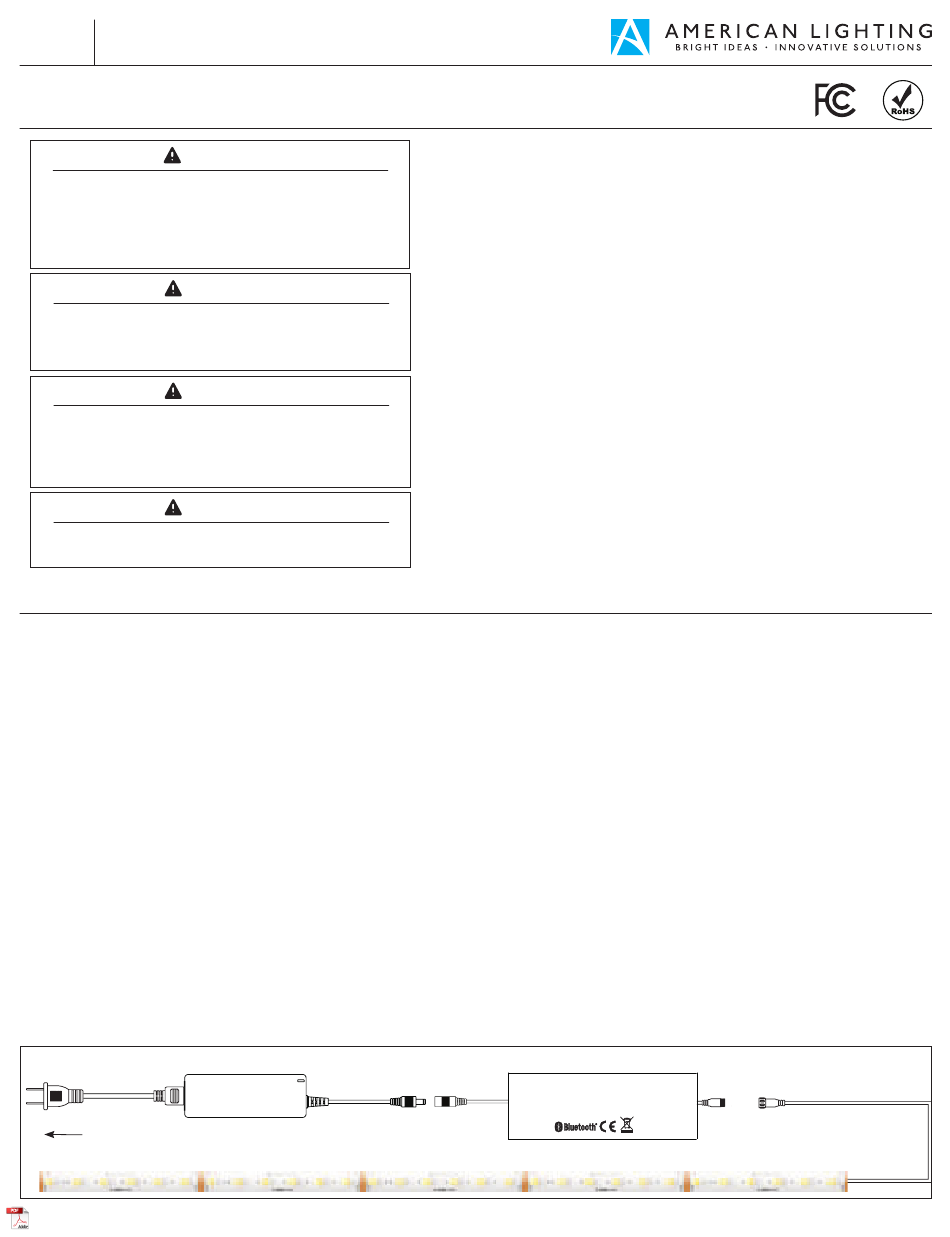

FIGURE 1
24V DC Plug-In Power Supply
To 120V
©2021 American Lighting, Inc. REV2124 www.AmericanLighting.com

SAFETY INFORMATION

• Read all installation instructions before beginning; if not qualified, do not attempt
installation. Contact a qualified electrician.
• To reduce the risk of fire, electric shock, or injury to persons, pay close attention to this
manual and stay within its guidelines when using this product. Save these instructions
for future use.
• Do not cover this product as the covering may cause product to overheat, melt, or
ignite.
• Do not operate tape light while on the reel, nor while it is tightly coiled.
• This IP54 rated tape light is cULus Listed and suitable for indoor use in dry and damp
locations, but not for direct contact with water or moisture.
• Do not submerge flexible light in liquids nor use the product in the vicinity of standing
water or other liquids, or where water can accumulate.
• Do not route the cord or tape light through walls, ceilings, doors, windows, or any
similar part of the building structure.
• Secure tape light using only the attached adhesive strip.
• Do not secure this product or its cord with staples, nails, or like means that may
damage the outer jacket or cord insulation.
• Do not use if there is any damage to the tape light, LED diodes, or power cord
insulation; inspect periodically.
• Do not install on gates or doors, or where subject to continuous flexing.
• Do not install in tanks or enclosures of any kinds.
• This kit includes a 24V DC plug-in power supply (3A) that is cULus Listed for dry
location use. Use only the power supply provided. This power supply allows for a
maximum of 13.1 feet of tape light. Do not exceed 13.1 feet of tape light in any single run.
• The remote controller included utilizes Bluetooth® wireless technology.
• WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN!
Batteries are not a toy!
swallowed, it could cause severe injury or death in just 2 hours due to chemical burns
and potential perforation of the esophagus. If you suspect your child has swallowed or
inserted a button battery, immediately seek urgent medical assistance.
used batteries immediately and safely. Only replace with the same battery type.
secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if
compartment is not secure.
Reel Length Cuttability
13.1 feet (4m) Every 3.94"
Spektrum RGBTW Tape Light Kit
Page 1 of 4
• The handheld remote control included utilizes a 3V CR2025 battery; If
• Do not dispose of batteries in fire as they may explode or leak. Please dispose of
• Examine devices and make sure the battery compartment is correctly
(1) 15ft Reel of 6PIN 20AWG wire
(3) Tape-to-Tape HD connectors
(3) Tape-to-Wire HD connectors
Tape Light Kit Maximum Run
13.1 feet (4m)
LED Controller/Receiver
Bluetoot h h LED Bluetoot LED C Controller ontroller
Input Input V Voltage:DC oltage:DC 12-24V 12-24V
DC DC
Output C Current:5x1.5A Output urrent:5x1.5A m max. ax.
INPUT INPUT
Max Output Max Output P Power:72-144W ower:72-144W
11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633
Pre-Attached Connection
Black:LED + + Black:LED
Red:R- Red:R-
G G reen:G- reen:G-
Yellow:B- Ye llow:B-
Orange:WW - - Orange:WW
White:CW - - White:CW
