STEP 1: Remove the contents from the box and carefully plan all steps using the installation diagram,
and by reviewing the steps below.
STEP 2: Position the Zenith pH Controller box as indicated in the installation diagram, ensuring it is NOT
too close to other equipment or power outlets, but close enough to the Zenith Salt and Mineral
Chlorinator power supply so the piggy-back power cord can plug in to its socket outlet.
STEP 3: Attach the Zenith pH Controller to the wall by removing the simple "Click ON – Click OFF" wall
mounting bracket attached to the controller case. Use the wall plugs and screws provided.

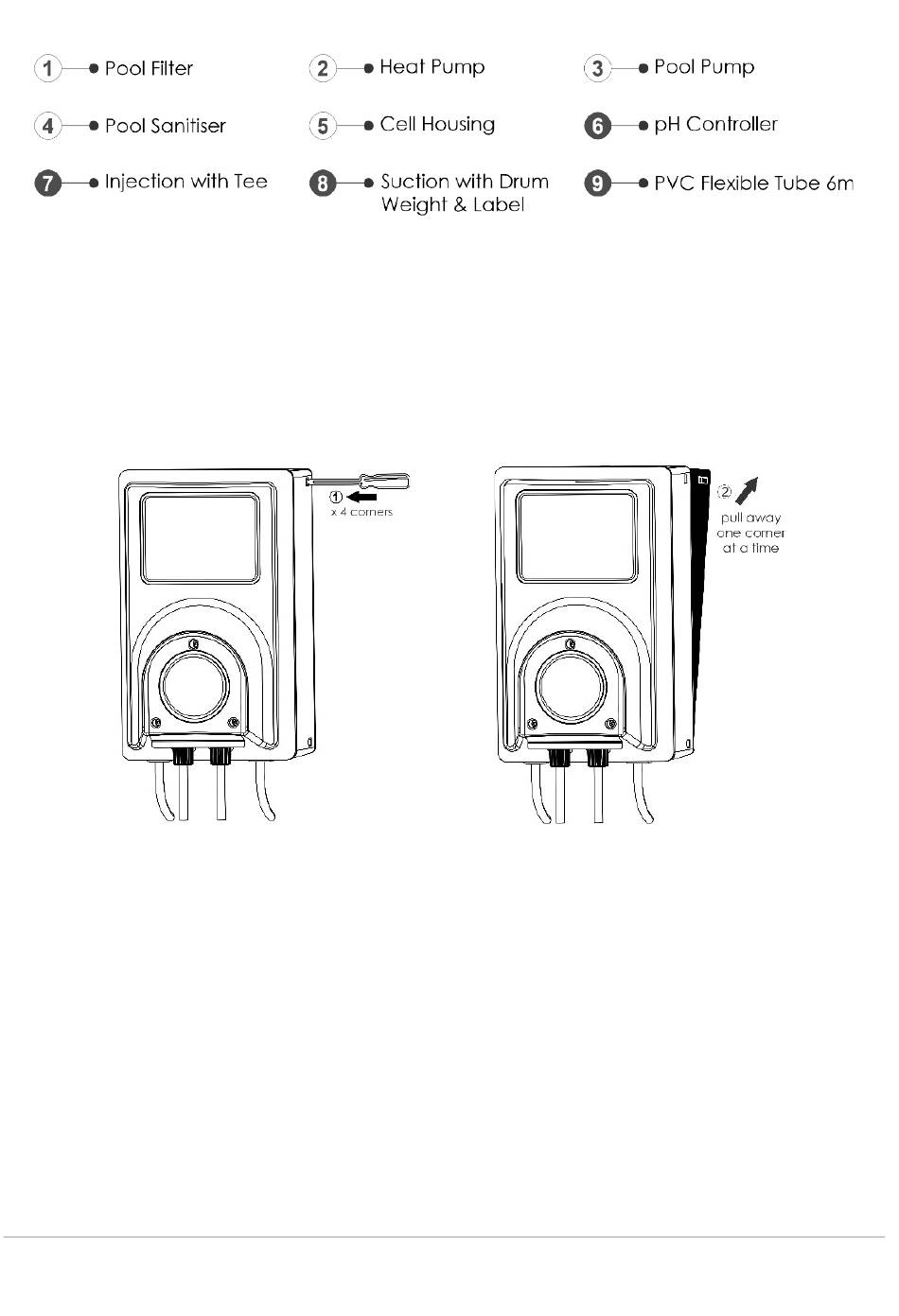

3.1: Press in the wall bracket clips.
3.3: Mount the bracket to the wall
This unique design protects the controller case from any water entry.
STEP 4: Fit the CLEAR faucet tee c/w injection valve to the pool water line, avoiding high pressure areas
(i.e., after the pump, filter, and prior to heat pump). It can be installed prior to the cell housing (or after
if needed).
STEP 5: Cut and connect a length of clear flexible PVC tube that will reach from the outlet at the base
of the peristaltic pump (right side) to the injection valve mounted in the CLEAR faucet tee, using the tube
nut to secure the tube.
STEP 6: Do not cut the other length of clear flexible PVC tube yet. Place the acid drum (with the
required mix) in the required position, in a ventilated area, preferably not near this or other pool
equipment (at least 2 m or more away), as the acid is corrosive and equipment damage will occur.
3.2: Pull the wall bracket away from case.
3.4: CLICK ON the case to the wall bracket
Page 5 of 14
