ASSEMBLY INSTRUCTIONS
SKU: DVS030
Devers
Backless
Seat Height
Product Dimension : 24"x24"x30".H
Cube Size : 34.8"x18.2"x7"
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability.
Please take the time to read and follow the assembly instructions carefully.

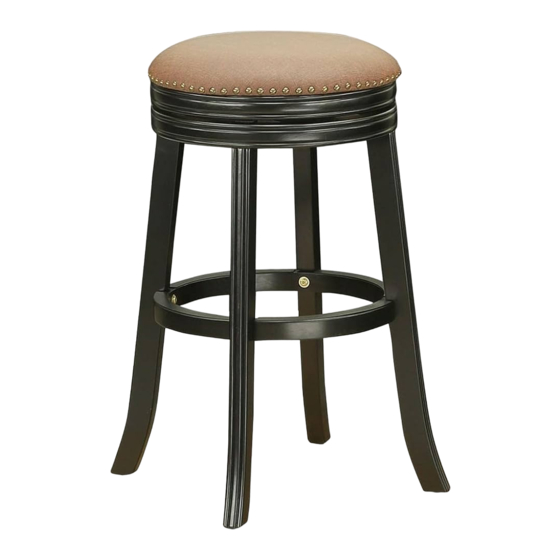

Devers Swivel Backless Barstool 30" Seat Height
PDF created with pdfFactory Pro trial version
NW: 19.8
GW: 23.1 LBS
BEFORE ASSEMBLY
pdffactory.com
175 Southbelt Industrial Dr,
Houston, TX 77047
Email:sales@eastwestfurniture.net
Description :
Swivel
Barstool 30"
LBS
Advertisement
Table of Contents
Related Manuals for East West Furniture DVS030
Summary of Contents for East West Furniture DVS030
- Page 1 ASSEMBLY INSTRUCTIONS SKU: DVS030 175 Southbelt Industrial Dr, Houston, TX 77047 Email:sales@eastwestfurniture.net Description : Devers Swivel Backless Barstool 30” Seat Height Product Dimension : 24”x24”x30”.H Cube Size : 34.8”x18.2”x7” NW: 19.8 GW: 23.1 LBS BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability.
- Page 2 Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware. Compare with the part list to be sure all parts are present. If hardware is missing or you have difficulty assembling this product, please contact us.
- Page 3 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Lock washer Bolt (M8x40) ( F8.5xF13mm) Flat Washer Bolt ( F8.5xF19m) (M6x15) Lock washer...
- Page 4 STEP 2 Attach two legs (D) to Apron with swivel Plate (B) and Footrest (C) by using bolts (1) and washers (2), (3). Tighten with Allen Key (7). Note: DO NOT tighten any of the bolts, until the chair is assembled STEP 3 Attach the other two legs (D) to Apron with swivel Plate (B) and Footrest (C) by using bolts (1) and washers (2) and (3).
- Page 5 CAUTION: Do not put fingers into seat gap. Devers Swivel Backless Barstool 30” Seat Height PDF created with pdfFactory Pro trial version pdffactory.com...
