Deltech PYRAMID Series Instruction Manual page 5

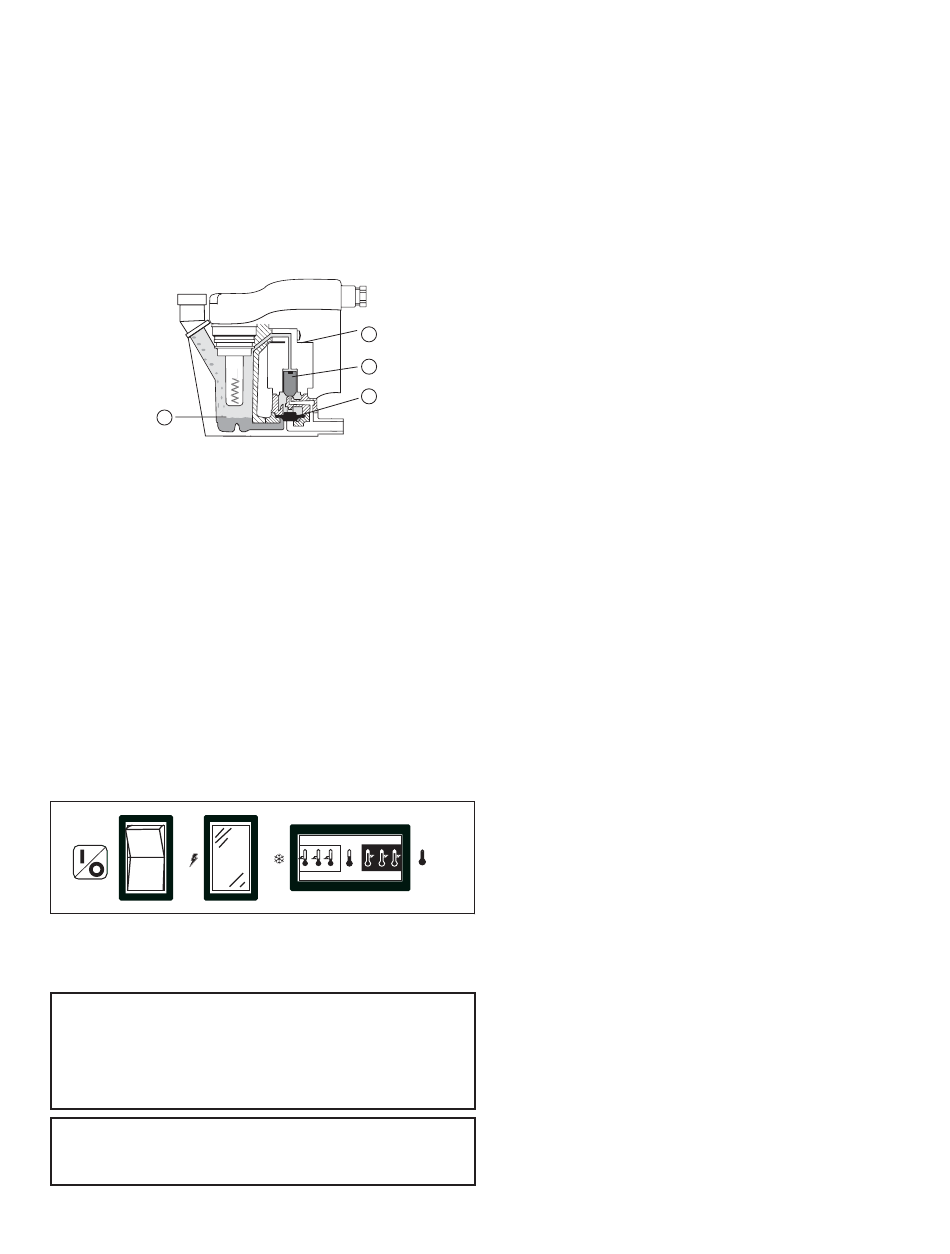

B. Condensate enters the reservoir (1) through the inlet port.
When the condensate level in the reservoir covers the
capacitance sensor, an electronic signal is sent to the solid
state countdown processor. The processor delays the
opening of the solenoid valve for a given period of time.
Once the time has elapsed, the solid state processor
transmits information to energize the coil in the solenoid
valve (2). The magnetic force of the coil causes the
solenoid core (3) to move, closing the pilot air supply line
and opening the pilot air exhaust line. After the pilot air
above the diaphragm (4) is vented, pressure in the reser-
voir opens the discharge port and forces the condensate
through the discharge port and outlet piping.
1
2.0 OPERATION
2.1 Minimum/Maximum operating conditions
A. Maximum inlet air pressure: refer to dryer serial number
tag
B. Minimum inlet air pressure: 30 psig (2.1 kgf/cm
C. Maximum inlet air temperature: 120°F (49°C)
D. Maximum ambient temperature:
Air-cooled models: 110°F (43°C)
Water-cooled models: 130°F (54°C)
E. Minimum ambient temperature: 45°F (7°C)
2.2 Start-up
A. Models 100-150:
Energize compressor by positioning the on/off switch in
the on (I) position. Compressor on light will illuminate.
On/Off Switch Power-On Light
B. Models 200-750:
Energize dryer. Green power on light will illuminate.
IMPORTANT: Energize dryer disconnect switch (provided
by others, see NEC) 24 hours before refrigeration com-
pressor is started! Never use the disconnect switch to
shutdown the dryer for a extended period of time (except
for repair). Failure to follow these instructions may result
in a non-warrantable compressor failure.
NOTE: If there is no power to the control board for a
period of two weeks or more, it may return to the default
mode.
2
3
4
2
)
Dewpoint Indicator (Green)
C. Program Monitor
Press and hold Program Mode button until Main Menu screen
appears. Use the Up and Down arrow buttons to scroll
through the list of submenu choices. Press Enter button to
view the submenu that is displayed. Press ESC to exit the
Main Menu and return to Display mode.
1. Language selection
a. Use the 'Up' and 'Down' arrow buttons to scroll through
the list of languages (choice of 10 available: English,
Deutsch, Francais, Espanol, Italiano, Polski, Dansk,
Dutch, Norsk and Suomi).
b. Press 'Enter' button to select the language that is
displayed.
c. Push 'ESC' at any time to return to the Main Menu.
2. Setting Date & Time
a. Use the 'Up' and 'Down' arrow buttons to set minutes
(00 to 59). Press 'Enter' to accept new value.
b. Use the 'Up' and 'Down' arrow buttons to set hours (00
to 23). Press 'Enter' to accept new value.
c. Use the 'Up' and 'Down' arrow buttons to set year (00
to 99 representing 2000 to 2099). Press 'Enter' to
accept new value.
d. Use the 'Up' and 'Down' arrow buttons to set month
(three letter abbreviation). Press 'Enter' to accept new
value.
e. Use the 'Up' and 'Down' arrow buttons to set day (01 to
maximum for the month and year selected). Press
'Enter' to accept new value.
f. Push 'ESC' at any time to return to the Main Menu.
3. Setting Schedule
a. Use the 'Up' and 'Down' arrow buttons to select desired
"Day of week + on/off". Press 'Enter' to accept new value
b. Use the 'Up' and 'Down' arrow buttons to set hour (00 to
23). Press 'Enter' to accept new value
Note: If the hour setting is 'IGNORE', Press 'Enter' again
to move the cursor under the "Day of week + on/off".
Repeat steps a through b (or c) as needed.
c. Use the Up and Down arrow buttons to set minutes (00,
10, 20, 30, 40, 50; not shown if hour setting is 'IGNORE').
Press 'Enter' to accept new value and return to "Day of
week + on/off". Repeat steps a through c as needed.
d. Push 'ESC' at any time to return to the Main Menu.
NOTE: Scheduler will ignore programmed commands
for 10 minutes after exiting program mode.
4. Hours To Service
a. Use the 'Up' and 'Down' arrow buttons to scroll through
the range of permissible values (0 to 8760) before service
reminder is initiated. Press 'Enter' to accept new value.
(Only hours that refrigeration compressor is operating
are counted).
b. Press 'ESC' at any time to return to the Main Menu.
NOTE: On dryers with air-cooled condensers, regular
condenser cleaning is recommended. Dirtiness of
ambient air at installation site will determine frequency
of service. Typically once a month is recommended.
Dryers contain an integral 3 micron filter. As the filter
element accumulates solid contaminants, differential
5
