PROGRAMMABLE THERMOSTAT
User Guide

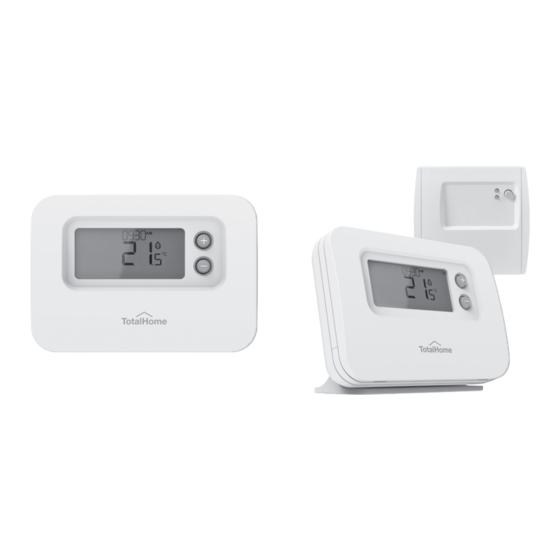

TTHWP, TTHWFP (Room Thermostat / Relay Box)
2
Programming the Schedule
Default Schedule
P1
P2
P3
P4
6:30
8:00
18:00 22:30
21°C
16°C
21°C
16°C
Adjusting the Schedule
1
2
1030
Press MENU
Select PROG then confirm
1
Screen and button overview
1
15
14
3
TUE
Select day then confirm
5
prog
0650
Adjust time then confirm
2
3
4
5
6
7
8
9
1030
13
12
11
4
0640
Select period then confirm
6
0650
Adjust temperature then confirm
1
Programming Menu
2
Settings Menu
3
Alert
4
Room Temperature
5
Current time
6
Heat demand
7
Optimisation
10
8
Low battery
9
Wireless signal (TTHWFP only)
10 Temperature adjust buttons
11 Standby / Confirm button
12 Auto mode / Manual mode / Copy button
13 Menu / Back button
14 Schedule period
15 Day (1 = MON, 2 = TUE, ... 7 = SUN)
Copy Day
1
TUE
Select day then COPY
2
To
Select "TO" day then confirm
1 = MON
2 = TUE
3 = WED
4 = THU
5 = FRI
6 = SAT
7 = SUN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for resideo TotalHome TTHWP
Summary of Contents for resideo TotalHome TTHWP
- Page 1 Screen and button overview Programming Menu Settings Menu PROGRAMMABLE THERMOSTAT Alert User Guide Room Temperature Current time TTHWP, TTHWFP (Room Thermostat / Relay Box) 1030 Heat demand Optimisation Low battery Wireless signal (TTHWFP only) 10 Temperature adjust buttons 11 Standby / Confirm button 12 Auto mode / Manual mode / Copy button 13 Menu / Back button 14 Schedule period...
- Page 2 Repeat steps to set DAY, HOUR and MINUTE year year Technical Support 01183 152 114 Select YEAR then confirm Set YEAR then confirm © 2024 Resideo Technologies, Inc. All rights reserved. This product is manufactured by Resideo Technologies, Inc. and its affiliates.
Need help?
Do you have a question about the TotalHome TTHWP and is the answer not in the manual?
Questions and answers
how can i turn my heating on? the thermostat is showing 'OFF'
If the Resideo TTHWP thermostat shows "OFF" and the heating is not working:
1. Check if the relay box LED is off. If it is, the relay box may have no power.
2. Press the button on the relay box to switch the boiler on. This checks if power is present.
3. If the relay box has power but the thermostat still shows "OFF", it may have lost wireless connection.
4. Move the thermostat to another location to try to restore communication.
5. If the relay box LED is still off or flashing, and heating does not turn on, contact your installer.
