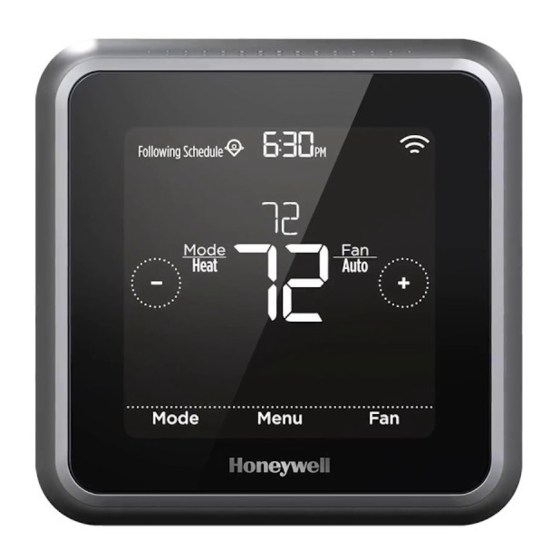

T5+ Smart Thermostat
Programmable Thermostat
RCHT8610WF, RCHT8612WF,
RTH8800WF
Product Data
For more information visit honeywellhome.com
Included in your box
Screws and
anchors
Get the most from T5 Smart Thermostat
Multiple programming options that fit your lifestyle:
1.
Location-Based scheduling – The thermostat uses your smartphone's location to know when you're away, and saves you energy. Through
geofence technology, it senses your return and helps make you comfortable upon arrival. You can always manually change your preset Home
and Away temperature either on the thermostat or on the Honeywell Home app.
2.
Smart scheduling – Use a combination of geofencing and time scheduling to fit your busy, active lifestyle.
3.
Time-Based scheduling – Program your thermostat for one week; each day (each day is a different schedule); Mon-Fri, Sat, Sun; or Mon-Fri,
Sat-Sun. All days with four adjustable periods per day.
4.
No scheduling – Control your comfort manually by adjusting temperature set points only.
Smart Alerts. Push notifications remind you of filter changes and warn you of extreme indoor temperatures.
!
Smart Response. Learns your heating and cooling system to deliver the optimal temperature at the right time.
Auto Change From Heat to Cool. Automatically determine if your home needs heating or cooling to provide maximum comfort.
UWP™
Mounting
System
(UWP)
Menu
Fan
Quick Install
Guide
T5 Smart
Thermostat
M37257C
Advertisement
Table of Contents
Related Manuals for resideo Honeywell Home T5+
Summary of Contents for resideo Honeywell Home T5+
- Page 1 T5+ Smart Thermostat Programmable Thermostat RCHT8610WF, RCHT8612WF, RTH8800WF Product Data Menu For more information visit honeywellhome.com Included in your box Quick Install Guide Screws and anchors UWP™ Mounting T5 Smart System Thermostat (UWP) M37257C Get the most from T5 Smart Thermostat Multiple programming options that fit your lifestyle: Location-Based scheduling –...
-
Page 2: Tools You Will Need
Read and save these instructions. Removing your old thermostat Tools you will need Turn power OFF To protect yourself and your equipment, Turn off the power Smartphone at the breaker box or switch that To install your controls your heating/cooling thermostat and Phillips screwdriver system. - Page 3 Installing your T5 Smart Thermostat Record if you have wires in the Terminal Wire Color following terminals Do not include jumpers as a part of your count. The thermostat does not need jumpers. Write down the color of the wires Check mark the wires that are connected to terminals.
- Page 4 R or Rh If your thermostat does not show wire into START SETUP, please contact R-Terminal. Resideo support. Setup with Honeywell Home App Start Setup with the app Touch START SETUP on thermostat. 14 Connect remaining wires from This wiring is just an example, actual wiring may vary.
-
Page 5: Manual Setup
To see a list of all setup options, go to pages 6-7. Interested in more Resideo products? Visit honeywellhome.com to learn To edit an option value, touch Edit about all available products connected by the Honeywell Home app. -
Page 6: Equipment Setup Options
Equipment Setup Options Note: ISU options available may vary upon the thermostat model and equipment setup. # ISU ISU Name ISU Options (defaults in bold) Notes Schedule Type No Schedule You can change default MO-FR, SA-SU schedule here. To edit periods during days, tempera- MO-SU = Every day the same ture setpoints, or to turn Schedule On/Off, from the home screen, go to MENU/SCHEDULE. - Page 7 # ISU ISU Name ISU Options (defaults in bold) Notes Heat 1 CPH 1 - 12 CPH This ISU is only displayed when Heat Stages is set to 1 stage or more stages. Cycle rate limits (Heating cycle the maximum number of times the system can cycle in a 1 hour period measured at a 50% rate stage 1) load.
-
Page 8: Frequently Asked Questions
Regulatory information FCC REGULATIONS 47 CFR § 15.105 (b) 47 CFR § 15.19 (a)(3) See https://customer.resideo.com/en-US/support/residential/ This device complies with part 15 of the FCC Rules. Operation is codes-and-standards/FCC15105/Pages/default.aspx for subject to the following two conditions: additional FCC information for this product. -
Page 9: Year Limited Warranty
Apple® HomeKit™ Setup Code The T5 Smart supports Apple HomeKit. When prompted by the Honeywell Home app, scan the code on the back cover of the guide included with your T5 Smart thermostat. 2-Year Limited Warranty For Warranty information go to honeywellhome.com CAUTION: ELECTRICAL HAZARD Can cause electrical shock or equipment damage. - Page 12 33-00474-02 M.S. Rev. 01-22 | Printed in United States www.resideo.com © 2022 Resideo Technologies, Inc. All rights reserved. The Honeywell Home trademark is used under license from Honeywell International, Inc. 33-00474-02 This product is manufactured by Resideo Technologies, Inc. and its affiliates.
