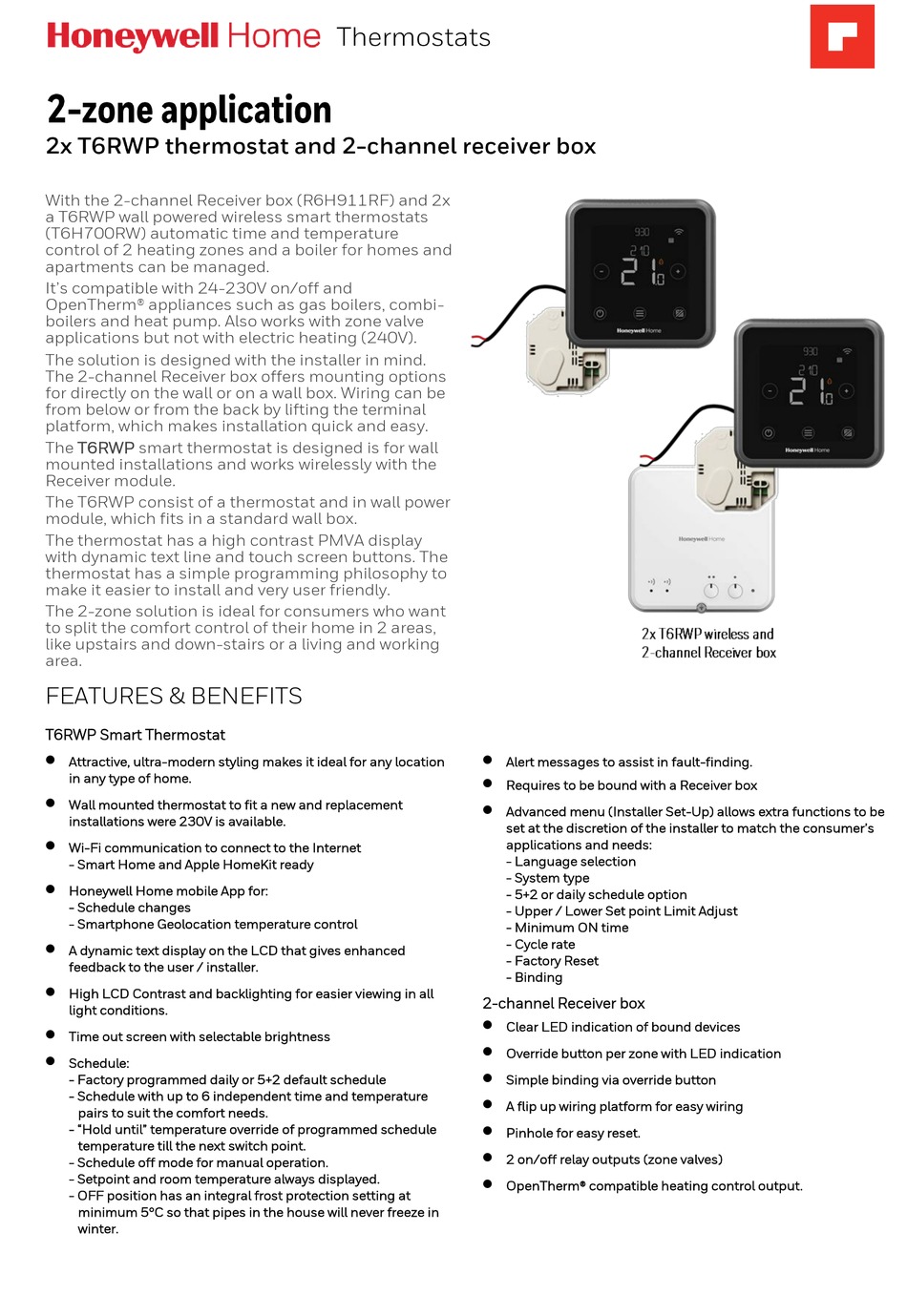

With the 2-channel Receiver box (R6H911RF) and 2x
a T6RWP wall powered wireless smart thermostats
(T6H700RW) automatic time and temperature
control of 2 heating zones and a boiler for homes and
apartments can be managed.
It's compatible with 24-230V on/off and
OpenTherm® appliances such as gas boilers, combi-
boilers and heat pump. Also works with zone valve
applications but not with electric heating (240V).
The solution is designed with the installer in mind.
The 2-channel Receiver box offers mounting options
for directly on the wall or on a wall box. Wiring can be
from below or from the back by lifting the terminal
platform, which makes installation quick and easy.
The T6RWP smart thermostat is designed is for wall
mounted installations and works wirelessly with the
Receiver module.

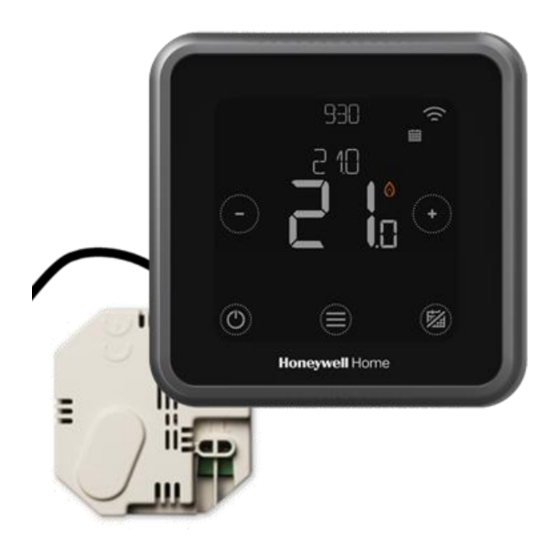

The T6RWP consist of a thermostat and in wall power
module, which fits in a standard wall box.
The thermostat has a high contrast PMVA display
with dynamic text line and touch screen buttons. The
thermostat has a simple programming philosophy to
make it easier to install and very user friendly.
The 2-zone solution is ideal for consumers who want
to split the comfort control of their home in 2 areas,
like upstairs and down-stairs or a living and working
area.
The solution offers remote comfort control of both
FEATURES & BENEFITS
zones via the Honeywell Home app..
T6RWP Smart Thermostat
•
Attractive, ultra-modern styling makes it ideal for any location
in any type of home.
•
Wall mounted thermostat to fit a new and replacement
installations were 230V is available.
•
Wi-Fi communication to connect to the Internet
- Smart Home and Apple HomeKit ready
•
Honeywell Home mobile App for:
- Schedule changes
- Smartphone Geolocation temperature control
•
A dynamic text display on the LCD that gives enhanced
feedback to the user / installer.
•
High LCD Contrast and backlighting for easier viewing in all
light conditions.
•
Time out screen with selectable brightness
•
Schedule:
- Factory programmed daily or 5+2 default schedule
- Schedule with up to 6 independent time and temperature
pairs to suit the comfort needs.
- "Hold until" temperature override of programmed schedule
temperature till the next switch point.
- Schedule off mode for manual operation.
- Setpoint and room temperature always displayed.
- OFF position has an integral frost protection setting at
minimum 5C so that pipes in the house will never freeze in
winter.
•
Alert messages to assist in fault-finding.
•
Requires to be bound with a Receiver box
•
Advanced menu (Installer Set-Up) allows extra functions to be
set at the discretion of the installer to match the consumer's
applications and needs:
- Language selection
- System type
- 5+2 or daily schedule option
- Upper / Lower Set point Limit Adjust
- Minimum ON time
- Cycle rate
- Factory Reset
- Binding
2-channel Receiver box
•
Clear LED indication of bound devices
•
Override button per zone with LED indication
•
Simple binding via override button
•
A flip up wiring platform for easy wiring
•
Pinhole for easy reset.
•
2 on/off relay outputs (zone valves)
•
OpenTherm® compatible heating control output.
