resideo Honeywell Home T6R Quick Start Manual

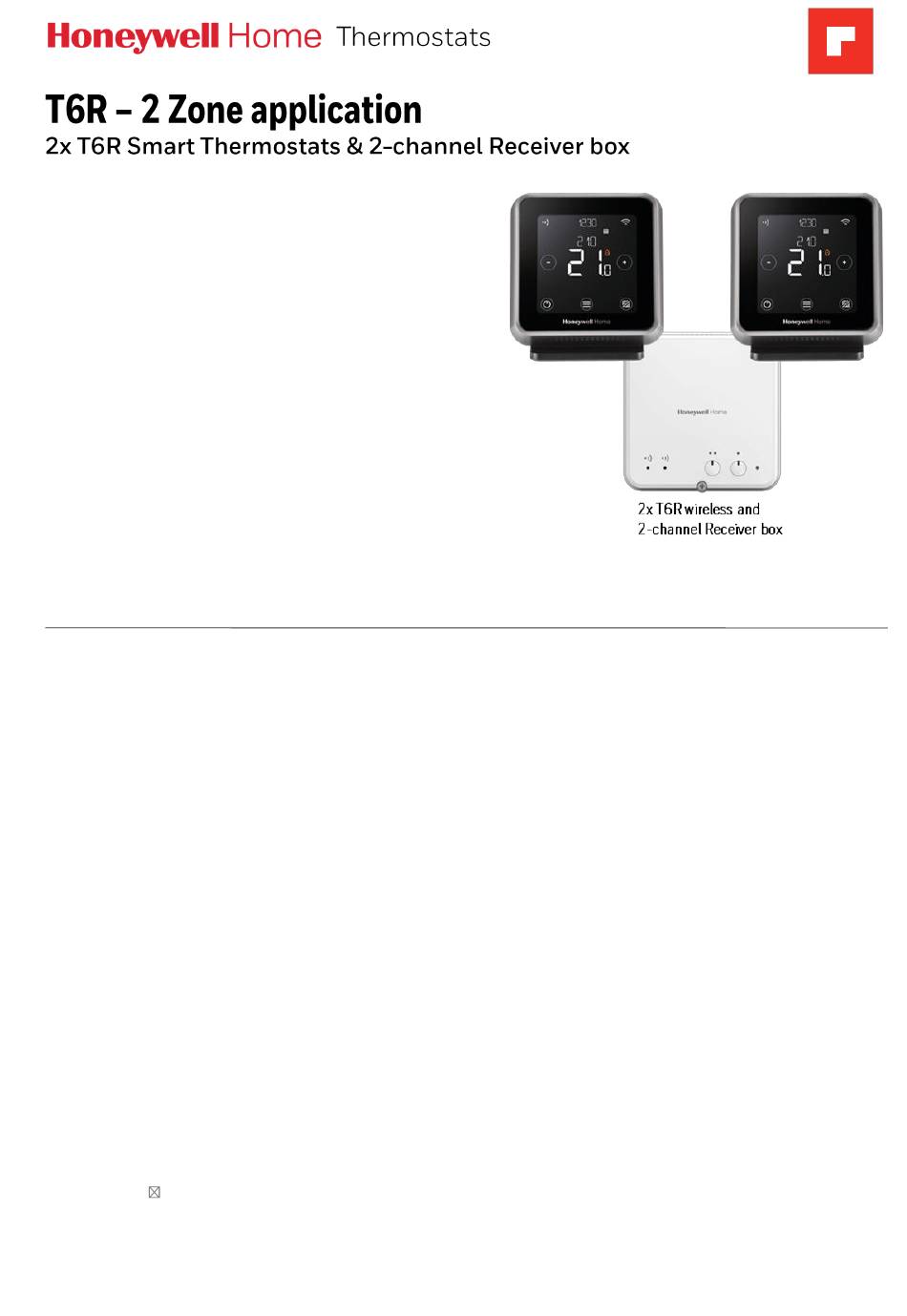

With the new 2-channel Receiver box (R6H911RF) and 2x
a T6R wireless smart thermostats (T6H700RW) automatic
time and temperature control of 2 heating zones and a
boiler for homes and apartments can be managed.
It's compatible with 24-230V on/off and OpenTherm®
appliances such as gas boilers, combi-boilers and heat
pump. Also works with zone valve applications but not with
electric heating (240V).
The solution is designed with the installer in mind.
The 2-channel Receiver box offers mounting options for
directly on the wall or on a wall box. Wiring can be from
below or from the back by lifting the terminal platform,
which makes installation quick and easy.

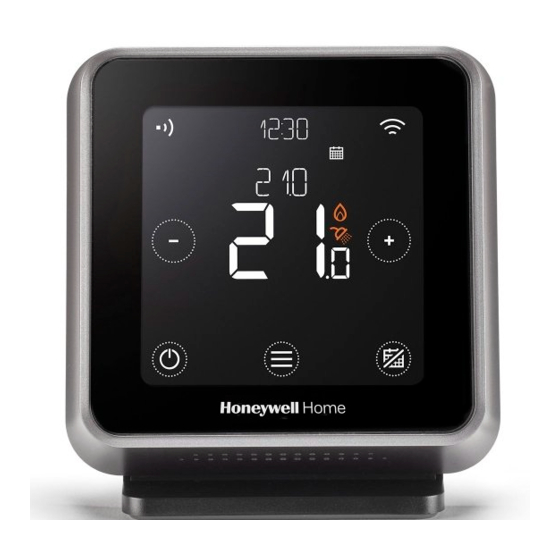

The T6R wireless thermostat has a high contrast PMVA
display with dynamic text line and touch screen buttons.
The thermostat has a simple programming philosophy to
make it easier to install and very user friendly.
The 2-zone solution is ideal for consumers who want to
split the comfort control of their home in 2 areas, like
upstairs and down-stairs or a living and working area.
The solution offers remote comfort control of both zones
via the Honeywell Home app.
FEATURES
T6R Smart Thermostat
•
Attractive, ultra-modern styling makes it ideal for any
location in any type of home.
•
Table stand or wall-box mounting thermostat options to
fit a new and replacement installations.
•
Wi-Fi communication to connect to the Internet
- Smart Home and Apple HomeKit ready
•
Honeywell Home mobile App for:
- Remote view and change of settings
- Schedule changes
- Smartphone Geolocation temperature control
•
A dynamic text display on the LCD that gives enhanced
feedback to the user / installer.
•
High LCD Contrast and backlighting for easier viewing
in all light conditions.
•
Time out screen with selectable brightness
•
Factory programmed daily or 5+2 default heating
schedule.
•
Schedule with up to 6 independent time and
temperature pairs to suit the comfort needs.
•
"Hold until" temperature override of programmed
schedule temperature till the next switch point.
•
Schedule off mode for manual operation.
•
Setpoint and room temperature always displayed.
•
OFF position has an integral frost protection setting at
minimum 5 C so that pipes in the house will never
freeze in winter.
•
Alert messages to assist in fault-finding.
•
User menu allows extra functions to be set at the
discretion of the user:
- Language selection.
- Wi-FI setup.
- Optimisation.
- Clock setting.
- Resetting the heating program to factory default.
- Brightness.
- Temperature offset.
- Lock function.
•
Advanced menu (Installer Set-Up) allows extra
functions to be set at the discretion of the installer to
match the consumer's applications and needs:
- Language selection.
- 5+2 or daily schedule option.
- Upper / Lower Set point Limit Adjust.
- Minimum ON time.
- Cycle rate.
- Factory Reset.
- Binding (wireless version).
2-channel Receiver box
•
Clear LED indication of bound devices
•
Override button per zone with LED indication
•
Simple binding via override button
•
A flip up wiring platform for easy wiring
•
Pinhole for easy reset.
•
2 on/off relay outputs
•
OpenTherm® compatible heating control output.
