Summary of Contents for Klipsch R-800F

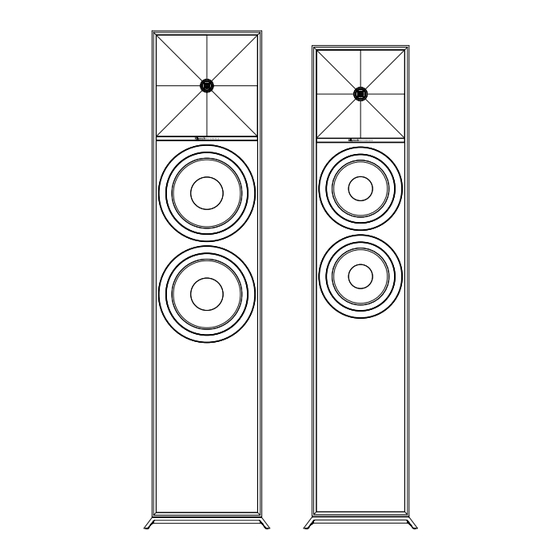

  • Page 2 ENGLISH REFERENCE SPEAKERS BEFORE YOU START Some Klipsch speakers have feet and other accessories that ® may need to be installed prior to use. FLOORSTANDING SPEAKERS R-50M R-40M R-50C R-800F R-600F R-30C DOLBY ATMOS ® R-40SA R-605FA...
  • Page 3 Refer to Figures 1, 2 and 3 for connection and placement. Amplifier Requirements — Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers Rear Surround Channel Speakers — Klipsch surround speakers should are 8-ohm compatible and can be driven to very high levels with low be placed approximately 2 feet above the listening position.
  • Page 4 FIGURE 1 FIGURE 2 SPEAKER PLACEMENT IN LISTENING AREA CENTER CHANNEL 6’ - 15’ Above X=Y=Z X=Y=Z X=Y=Z X=Y=Z X=Y=Z Below Optional Side Surround Placement (Option A is preferred) FIGURE 3 FIGURE 4 STANDARD CONNECTIONS WALL MOUNTING SURROUND SPEAKERS Front Right Front Left Front Right Front Left...
  • Page 5 REFERENCE WITH DOLBY ATMOS REFERENCE WITH DOLBY ATMOS TECHNOLOGY TECHNOLOGY ® ® R-605FA R-40SA R-40SA MANDATORY SECONDARY OPTIONAL SPEAKER PLACEMENT IN LISTENING AREA...
  • Page 6 ATMOS ELEVATION CHANNEL CONNECTION RECOMMENDED MIN. CROSSOVER: 150Hz MAIN MAIN HEIGHT HEIGHT...
  • Page 7 THREADED INSERT 3/8-16 PRODUCT REGISTRATION Register your product online at www.klipsch.com/register • Keep up-to-date on new products and promotions. • Your personal information will never be resold. • This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.
  • Page 8 Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories. ©2021, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Voxx International Corporation. Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries. V01 - 210708...
