- Page 1 USER MANUAL...
- Page 2 ®...

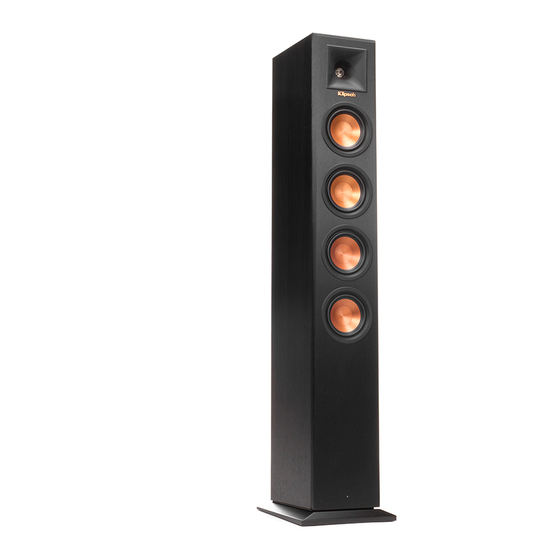

- Page 3 REFERENCE PREMIERE | HD WIRELESS HD Control Center (RP-HUB1) RP-440WF RP-140WM RP-440WC RP-110WSW...
- Page 4 HD CONTROL CENTER ON/OFF MUTE SOURCE VOLUME UP VOLUME DOWN ON /OFF MUTE SOURCE VOLUME UP VOLUME DOWN Sous tensio / Hors tension Sourdine Source Volume haut Volume bas Encendido / Apagado Silenciador Fuente Subida de volumen Bajada de volumen Ein / Aus Stummschaltung Quelle...
- Page 5 Service Port 3.5mm IR Input Coaxial Input Optical Input RCA Analog Inputs Port Service Entrée IR 3,5 mm Entrée coaxiale Connexion Optique Connexion analogique fiche RCA Puerto Servicio Entrada de infrarrojo (IR) de 3.5 mm Entrada coaxial Conexión Óptica Conexión analógica de RCA Service-Anschluss 3,5-mm-IR-Eingang Koaxial-Eingang...
- Page 6 HD CONTROL CENTER HDMI 1 HDMI 2 HDMI 3 HDMI 4 OPTICAL COAX ANALOG VOLUME ® HDMI Input 1 HDMI Input 3 Optical Input TV Input Bluetooth Volume LEDs DTS Surround Input LED HDMI Input 2 HDMI Input 4 Coaxial Input RCA Analog Dolby Digital Input LED...
- Page 7 HDMI Input 1 LED HDMI Input 2 LED HDMI Input 3 LED HDMI Input 4 LED DEL de l’entrée HDMI 1 DEL de l’entrée HDMI 2 DEL de l’entrée HDMI 3 DEL de l’entrée HDMI 4 Indicador LED 1 de entrada de HDMI Indicador LED 2 de entrada de HDMI Indicador LED3 de entrada de HDMI Indicador LED 4 de entrada de HDMI...
- Page 8 INTO AN OUTLET SELECT THE POSITION CENTER INTO TV AND CENTER INTO TV A V AN Os subwoofers sem fio Klipsch Reference Premiere HD e algumas outras caixas REPEAT FOR EVERY SPEAKER OF THIS SPEAKER FOLLOW THE ON-SCREEN FOLLOW THE ON-SCR acústicas Klipsch com certificação WiSA não têm seletor de localização.
- Page 9 FOLLOW ON-SCREEN INSTRUCTIONS SUIVRE LES INSTRUCTIONS SUR L’ÉCRAN SIGA LAS INSTRUCCIONES EN PANTALLA BILDSCHIRMANWEISUNGEN BEFOLGEN SEGUIRE LE ISTRUZIONI SULLO SCHERMO SIGA AS INSTRUÇÕES EXIBIDAS NA TELA...
- Page 10 TÉLÉCOMMANDE • CONTROL REMOTO • FERNBEDIENUNG • TELECOMANDO • CONTROLE REMOTO • To learn more about Sound Modes, EQ Adjustments, and Surround Effect Modes please see the extended manual at On/Off Mute Klipsch.com/RP-HD-WIRELESS-MANUAL HDMI 1 Source Select Optical Source Select HDMI 1 OPTICAL Pour plus d’information sur les modes sonores, les réglages de l’égaliseur et...
- Page 11 On / Off HDMI 1 Source Select HDMI 2 Source Select HDMI 3 Source Select HDMI 4 Source Select Mute Sous tensio / Hors tension Sélection de la source HDMI 1 Sélection de la source HDMI 2 Sélection de la source HDMI 3 Sélection de la source HDMI 4 Sourdine Encendido / Apagado...
- Page 12 Bluetooth Blinkt Dauerhaft Devices Lampeggiante Luce fissa Devices Klipsch RP-HUB1 Connected Klipsch RP-HUB1 Not Paired Intermitente Constante Example only. Your device may differ. À titre d’exemple seulement. Votre appareil peut être différent. • Este es solo un ejemplo. Es posible que su dispositivo sea diferente. • Nur als Beispiel. Ihr Gerät kann anders aussehen • Solo a titolo esemplificativo. Lo specifico dispositivo può essere diverso. •...
- Page 13 CARE AND CLEANING ENTRETIEN ET NETTOYAGE • CUIDADO Y LIMPIEZA • PFLEGE UND REINIGUNG • CURA E PULIZIA • CUIDADOS E LIMPEZA • * USE MICROFIBER CLOTHS ONLY *Utilisez des chiffons en microfibres seulement *Use solamente paños de microfibra *Nur Mikrofasertücher verwenden *Usare solo panni in microfibra *Use somente tecidos de microfibra *...
- Page 14 For more in-depth information and troubleshooting instructions visit KLIPSCH.COM/RP-HD-WIRELESS Pour plus d’informations et des instructions de dépannage détaillées, consultez Klipsch.com/RP-HD-WIRELESS Hay información más detallada e instrucciones de detección y reparación de averías en Klipsch.com/RP-HD-WIRELESS Detailliertere Anweisungen und Hinweise zur Problembehebung finden Sie unter Klipsch.com/RP-HD-WIRELESS Per informazioni più...
- Page 15 KLIPSCH.COM V20 - 0127 ©2016 KLIPSCH GROUP, INC. KLIPSCH, KLIPSCHORN, TRACTRIX AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH, GROUP INC. A WHOLLY OWNED SUBSIDARY OF VOXX INTERNATIONAL CORPORATION. THE BLUETOOTH ® WORD MARK AND LOGOS ARE REGISTERED TRADEMARKS OWNED BY BLUETOOTH SIG, INC.
- Page 17 E X T E N D E D U S E R G U I D E KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 18 FUTURE PROOF YOUR SYSTEM FREE FIRMWARE UPGRADES FOR LIFE VISIT KLIPSCH.COM/RP-HD-WIRELESS TO REGISTER YOUR HD CONTROL CENTER AND GET ACCESS TO NEW FEATURES AND FIRMWARE UPDATES AS THEY BECOME AVAILABLE. KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 19 HDMI Input 3 Optical Input TV Input Bluetooth Volume LEDs DTS Surround Input LED HDMI Input 2 HDMI Input 4 Coaxial Input RCA Analog Dolby Digital Input LED KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 20 (HDMI 2.0 and HDCP 2.2 Compliant) FIRMWARE UPDATES • Firmware updates need to be downloaded from KLIPSCH.COM to a USB storage device and then inserted into the HD Control Center’s SERVICE PORT. • Upon plugging in a USB storage device which contains a new firmware file, a confirmation will pop up to remind you none of your settings will be affected.
- Page 21 ANALOG HDMI 4 Source Select TV Source Select HDMI 4 Volume Directional Pad Menu Select MENU Return Exit EXIT Audio Enhancement AUDIO Surround Mode ® Bluetooth Source Select KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 22 REPEAT FOR EVERY SPEAKER LED SOLID = CONNECTED LED FLASHING = NOT CONNECTED Klipsch Reference Premiere HD Wireless Subwoofers and some other WiSA LED OFF = HD CONTROL CENTER OFF certified Klipsch speakers may not have a Smart Speaker Selector.
- Page 23 Choose whether to check the speaker locations again or continue with the redundancy. SETUP COMPLETE • Your basic setup process is complete. You are now ready to enjoy your system. KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 24 NOTE: You can toggle between feet and meters as units of measure for your adjustments. SUBWOOFER POSITION • This applies an EQ based on the placement of your subwoofer in order to optmize performance. Choose between these three options: WALL CORNER OTHER KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 25 No enhancements applied. Default option upon startup. DIALOGUE Increases dialogue EQ for enhanced vocal clarity without increasing ambient sound. NIGHT MODE Adjusts dynamic range for quieter listening environments. KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 26 • Your system is able to compensate for synchonization issues between audio and video by allowing for an adjustable audio delay. • You can adjust this delay by pressing the LEFT AND RIGHT buttons on your remote. KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 27 • This shows any information related to versions of firmware for various componentry: • HOST FIRMWARE • MCU FIRMWARE • DSP FIRMWARE • TX FIRMWARE • HDMI FIRMWARE KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 28 • Consumer Electronics Control (CEC) allows for shared remote control functionality over HDMI. When this setting is selected, you can toggle CEC ON OR OFF by pressing the LEFT OR RIGHT buttons on the remote. KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 29 • Factory Reset returns all settings of the system to factory defaults. Upon completing Factory Reset, the on-screen display will direct you to the setup guide to start your configurations from the beginning. KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 30 Settings Bluetooth Settings Bluetooth Bluetooth Devices Devices Klipsch RP-HUB1 Connected Klipsch RP-HUB1 Not Paired Example only. Your device may differ. CARE AND CLEANING * USE MICROFIBER CLOTHS ONLY KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 31 ENGLISH - WARRANTY – U.S. Klipsch Group, Inc, (KGI) warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one (1) year on electronics and three (3) years on woofer, cabinet and non-electrical mechanics, from the date of purchase, if it is properly used and maintained.
- Page 32 WiSA Sample Rate ........11 Firmware Updates........4 HD Control Center ........3 HD Control Center Display ....12 HD Control Center Firmware ....11 HDMI Firmware ..........11 HDMI Standby Pass-Through ....13 Host Firmware..........11 KLIPSCH REFERENCE PREMIERE HD WIRELESS | EXTENDED USER GUIDE V07 | 02.03.2016...
- Page 33 THE BLUETOOTH ® WORD MARK AND LOGOS ARE REGISTERED TRADEMARKS OWNED BY BLUETOOTH SIG, INC. AND ANY USE OF SUCH MARKS BY KLIPSCH GROUP, INC. IS UNDER LICENSE. THE APTX SOFTWARE IS COPYRIGHT CSR PLC OR ITS GROUP COMPANIES. ALL RIGHTS RESERVED. THE APTX ®...
- Page 34 3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM All specifications are subject to change without notice. ©2015 Klipsch Group, Inc. Klipsch, Keepers of the Sound and Tractrix are registered trademarks of Klipsch Group, Inc. reigisted in the US and other countries. A wholly-owned subsidiary of Voxx International Corporation...
