FLUSH PENDENT SPRINKLERS
MODEL F995 AQUARIUS@, l/2" (15 mm) ORIFICE
PUSH-ON
PLATE
WITH
EXTENSION
PUSH-ON
PLATE
COMPONENTS:
1 - Dust Cap
P-Arms
3-Body
4 - Gasketed
Button-
Deflector
5 - Retaining
Ring
214"
(57.2mm)
6 - Heat
Collectors
7 - Inner
Loading
Plate
6 - Outer
Loading
Plate
9 - Loading Screw
IO - Solder Element
11 - Disc Spring
12 - Insulating
Washer
13 - Tamper Resistant
Plug
IO
/i
' MODEL NO.,
;Ey,;\RAiURE
YEAR OF
I3
MANUFACTURE
NOTE:
The Fusible Element Assembly (consisting of Components 5 through 13)
falls out of the Body upon sprinkler operation.

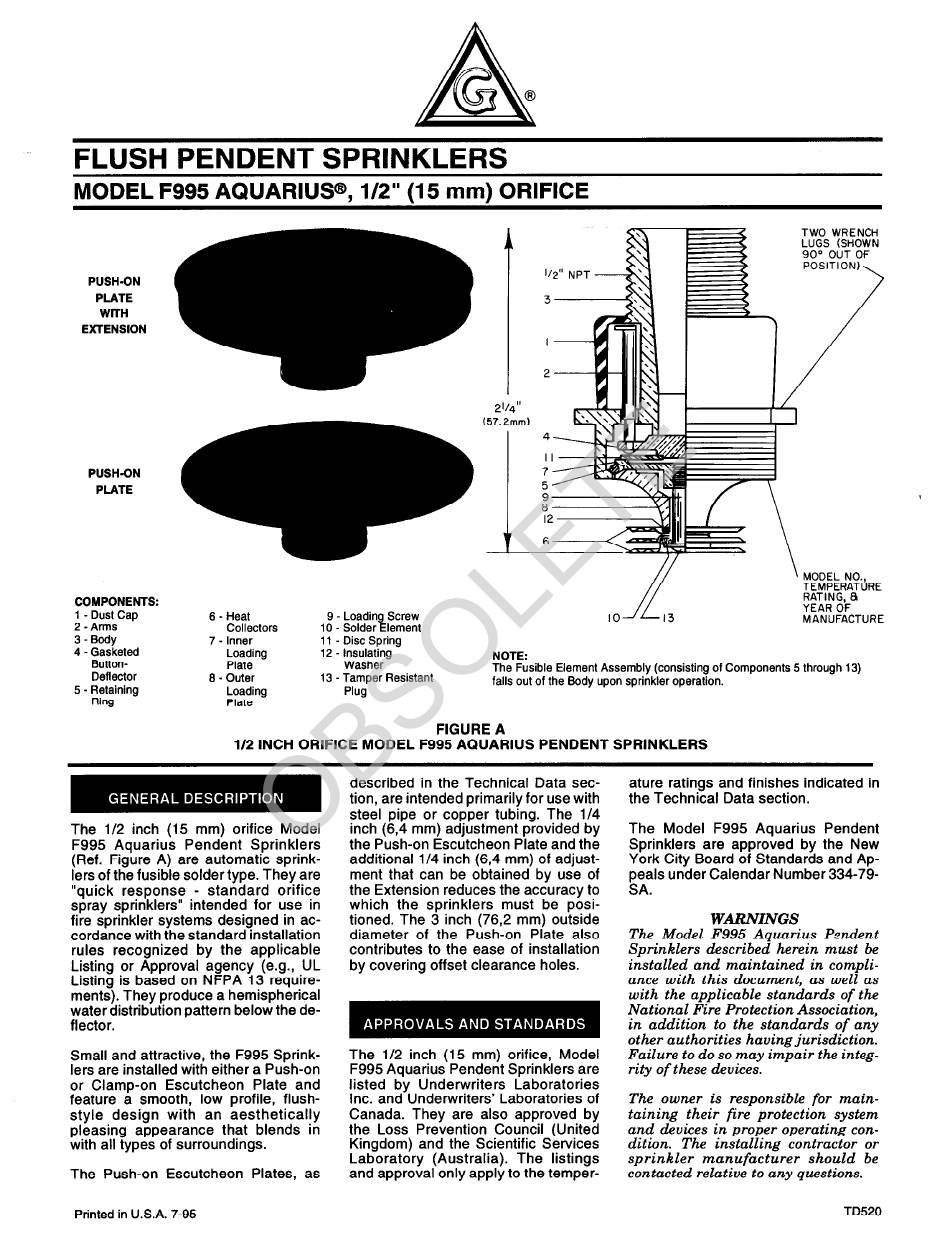

FIGURE A
l/2 INCH ORIFICE MODEL F995 AQUARIUS PENDENT SPRINKLERS
Printed in
U.S.A. 7-95
TD520
The l/2 inch (15 mm) orifice Model
F995 Aquarius Pendent Sprinklers
(Ref. Figure A) are automatic sprink-
lers of the fusible solder type. They are
"quick response - standard orifice
spray sprinklers" intended for use in
fire sprinkler systems designed in ac-
cordance with the standard installation
rules recognized by the applicable
Listing or Approval agency (e.g., UL
Listing is based on NFPA 13 require-
ments). They produce a hemispherical
water distribution pattern below the de-
flector.
Small and attractive, the F995 Sprink-
lers are installed with either a Push-on
or Clamp-on Escutcheon Plate and
feature a smooth, low profile, flush-
style design with an aesthetically
pleasing appearance that blends in
with all types of surroundings.
The Push-on Escutcheon Plates, as
described in the Technical Data sec-
tion, are intended primarily for use with
steel pipe or copper tubing. The l/4
inch (6,4 mm) adjustment provided by
the Push-on Escutcheon Plate and the
additional l/4 inch (6,4 mm) of adjust-
ment that can be obtained by use of
the Extension reduces the accuracy to
which the sprinklers must be posi-
tioned. The 3 inch (76,2 mm) outside
diameter of the Push-on Plate also
contributes to the ease of installation
by covering offset clearance holes.
The l/2 inch (15 mm) orifice, Model
F995 Aquarius Pendent Sprinklers are
listed by Underwriters Laboratories
Inc. and Underwriters' Laboratories of
Canada. They are also approved by
the Loss Prevention Council (United
Kingdom) and the Scientific Services
Laboratory (Australia). The listings
and approval only apply to the temper-
ature ratings and finishes indicated in
the Technical Data section.
The Model F995 Aquarius Pendent
Sprinklers are approved by the New
York City Board of Standards and Ap-
peals under Calendar Number 334-79-
SA.
WARNINGS
The Model F995 Aquarius Pendent
Sprinklers described herein must be
installed and maintained in compli-
ance with this document, as well as
with the applicable standards of the
National Fire Protection Association,
in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the integ-
rity of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating
con-
dition. The installing contractor or
sprinkler manufacturer should be
contacted relative to any questions.
