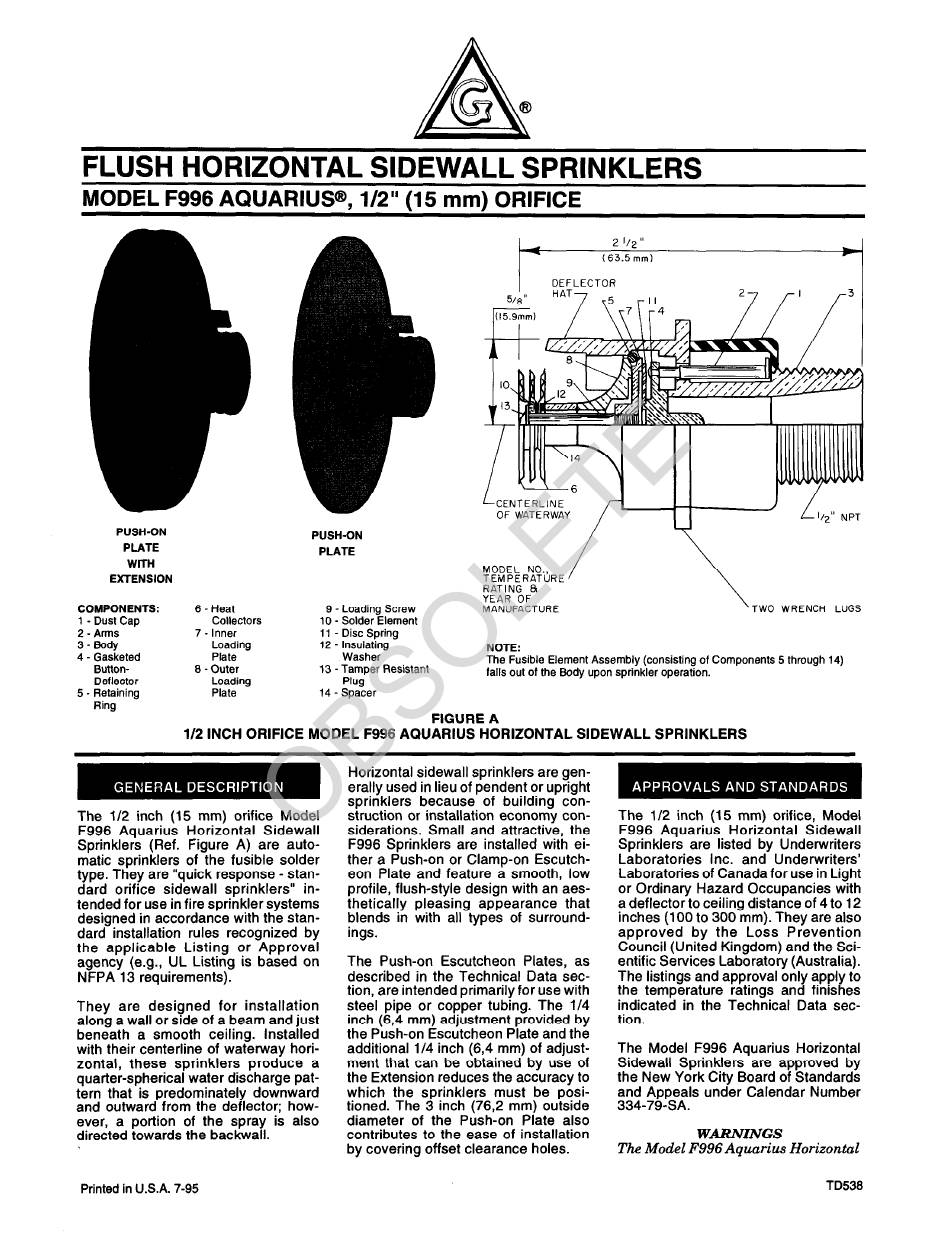

FLUSH HORIZONTAL
SIDEWALL SPRINKLERS
MODEL F996 AQUARIUS@, l/2" (15 mm) ORIFICE
PUSH-ON
PLATE
WtTH
EXTENSION
PUSH-ON
PLATE
COMPONENTS:
1 - Dust Cap
L-Ans
3-Body
4 - Gasketed
Button-
Deflector
5 - Retaining
Ring
6 - Heat
Collectors
7 - Inner
Loading
Plate
8 -Outer
Loading
Plate
9 - Loading Screw
10 - Solder Element
11 - Disc Spring
12 - Insulating
Washer
13 -Tamper
Resistant
Plug
14 - Spacer
4
2 '/2 (I
(63.5
mm1
*
DEFLECTOR
HAT7
4
I-II
27
f'
/-=
hENTERLlNE
OF WATERWAY
MODEL
NO.,
;gy,;;R;TURE
/
YEAR
OF
MANUFACTURE
\
TWO
WRENCH
LUGS
NOTE:
The Fusible Element Assembly
(consisting of Components
5 through 14)
falls out of the Body upon sprinkler operation.
FiGURE A
l/2 INCH ORIFICE MODEL F996 AQUARIUS
HORIZONTAL
SIDEWALL
SPRINKLERS
The l/2
inch (15 mm) orifice
Model
F996
Aquarius
Horizontal
Sidewall
Sprinklers
(Ref. Figure
A) are auto-
matic sprinklers
of the fusible
solder
type. They are "quick response
- stan-
dard
orifice
sidewall
sprinklers"
in-
tended for use in fire sprinkler
systems
designed
in accordance
with the stan-
dard installation
rules recognized
by
the applicable
Listing
or Approval
agency
(e.g., UL Listing
is based
on
NFPA 13 requirements).
They
are designed
for installation
along a wall or side of a beam and just
beneath
a smooth
ceiling.
Installed
with their centerline
of waterway
hori-
zontal,
these
sprinklers
produce
a
quarter-spherical
water discharge
pat-
tern that is predominately
downward
and outward
from the deflector;
how-
ever,
a portion
of the spray
is also
directed towards the backwall.
Horizontal
sidewall sprinklers
are gen-
erally used in lieu of pendent or upright
sprinklers
because
of building
con-
struction
or installation
economy
con-
siderations.
Small and attractive,
the
F996 Sprinklers
are installed
with ei-
ther a Push-on
or Clamp-on
Escutch-
eon Plate and feature
a smooth,
low
profile, flush-style
design with an aes-
thetically
pleasing
appearance
that
blends
in with all types
of surround-
ings.
The Push-on
Escutcheon
Plates,
as
described
in the Technical
Data sec-
tion, are intended primarily for use with
steel pipe or copper
tubing.
The II4
inch (6,4 mm) adjustment
provided
by
the Push-on Escutcheon
Plate and the
additional
l/4 inch (6,4 mm) of adjust-
ment that can be obtained
by use of
the Extension
reduces the accuracy
to
which
the sprinklers
must
be posi-
tioned. The 3 inch (76,2 mm) outside
diameter
of the Push-on
Plate
also
contributes
to the ease of installation
by covering
offset clearance
holes.
The l/2
inch (15 mm) orifice,
Model
F996
Aquarius
Horizontal
Sidewall
Sprinklers
are listed by Underwriters
Laboratories
Inc. and Underwriters'
Laboratories
of Canada for use in Light
or Ordinary
Hazard Occupancies
with
a deflector
to ceiling distance of 4 to 12
inches (100 to 300 mm). They are also
approved
by the
Loss
Prevention
Council (United Kingdom)
and the Sci-
entific Services
Laboratory
(Australia).
The listings and approval
only apply to
the temperature
ratings
and finishes
indicated
in the Technical
Data sec-
tion.
The Model
F996 Aquarius
Horizontal
Sidewall
Sprinklers
are approved
by
the New York City Board of Standards
and Appeals
under Calendar
Number
334-79-SA.
WARNINGS
The Model F996 Aquarius Horizontal
Printed in U.S.A. 7-95
TD539
