CONCEALED PENDENT SPRINKLER with 1/2" ADJUSTMENT
MODEL F692 DESIGNER
STANDARD RESPONSE, 4 mm BULB TYPE, 1/2" ORIFICE, 1/2" NPT
MODEL F692 STANDARD RESPONSE CONCEALED PENDENT SPRINKLER
GENERAL DESCRIPTION
The 1/2 inch (15 mm) orifice Model
F692, Standard Response Designer
Concealed Pendent Sprinklers (Ref.
Figure A) are pendent automatic sprin-
klers of the frangible bulb type. They
are "standard response - standard ori-
fice spray sprinklers" intended for use
in fire sprinkler systems designed in
accordance with the standard installa-
tion rules recognized by the applicable
Listing or Approval agency (e.g. UL
Listing is based on NFPA 13 require-
ments). The F692 produces a hemi-
spherical water distribution pattern be-
low the deflector. Each unit includes a
Cover Plate Assembly which conceals
the sprinkler operating components
above the ceiling.
The small Cover Plate is flat with a low
profile which blends in with the ceiling
for an aesthetically pleasing appear-
ance. Standard finishes for the Cover
Plate are satin chrome plated and
painted white. Other factory applied
Printed in U.S.A. 6-98

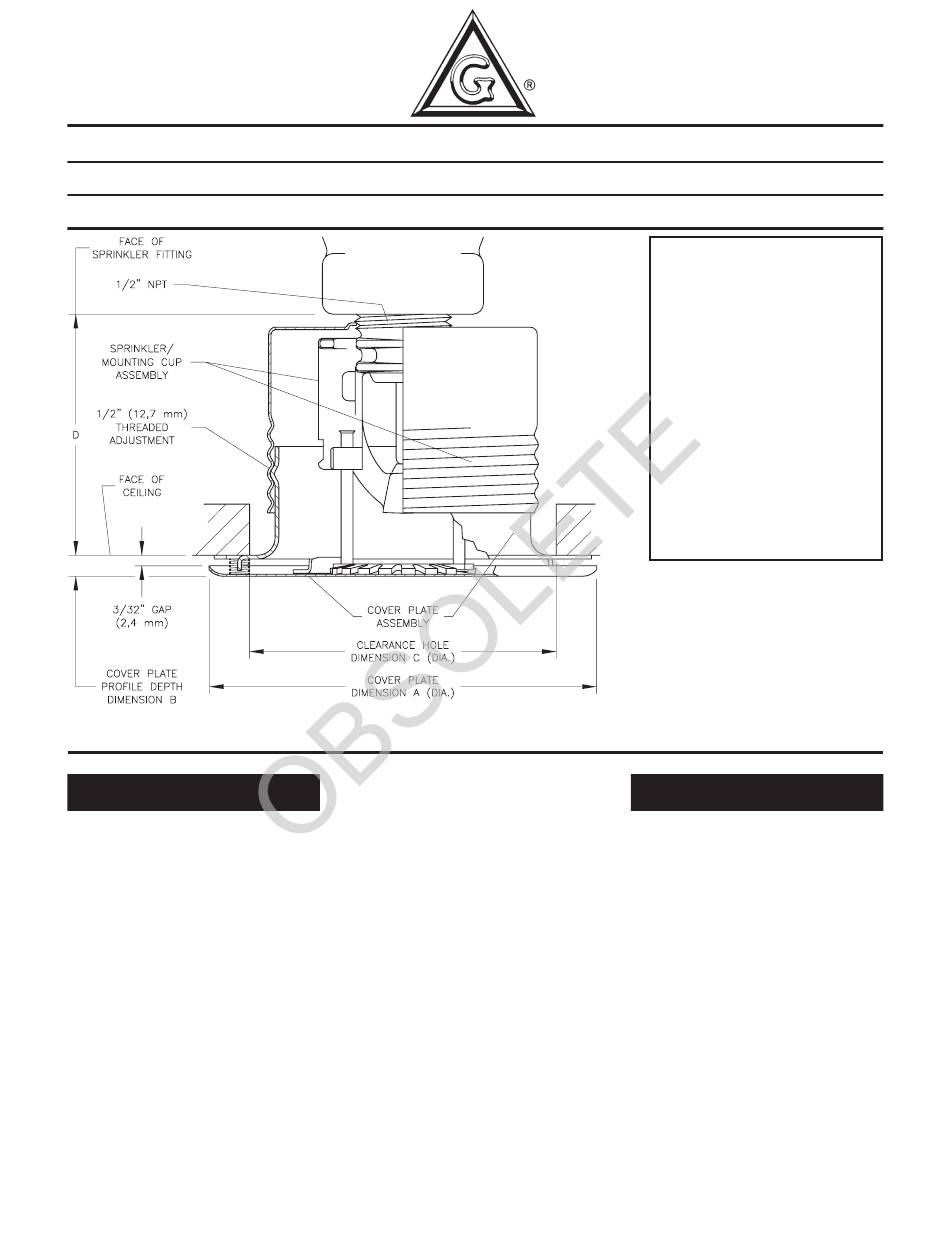

FIGURE A
painted finishes for the Cover Plate are
available on special order.
The separable two-piece design of the
Cover Plate and Mounting Cup As-
semblies allows installation of the
sprinklers and pressure testing of the
fire protection system prior to installa-
tion of a suspended ceiling or applica-
tion of the finish coating to a fixed
ceiling. The separable design also per-
mits removal of suspended ceiling
panels for access to building service
equipment, without having to first shut
down the fire protection system and
remove sprinklers.
Also, the separable two-piece design
of the the F692 Concealed Sprinkler
provides for 1/2 inch of vertical adjust-
ment, to reduce the accuracy to which
the length of fixed pipe drops to the
sprinklers must be cut.
Each sprinkler is shipped with a dam-
age resistant Protective Cap, which
can be temporarily left in place until
installation of the ceiling is complete.
TEMPERATURE RATINGS:
135°F / 57°C
155°F / 68°C
175°F / 79°C
200°F / 93°C
K-FACTOR (NOMINAL):
5.6 ( GPM ÷ psi
1/2
)
80.6 ( LPM ÷ bar
1/2
)
ADJUSTMENT:
1/2 INCH (12.7mm)
COVER PLATE FINISHES:
CHROME PLATED
WHITE PAINTED
SPECIAL COLOR PAINTED
Dim. Inches
A- 3-5/16
B- 3/16
C- 2-5/8
D-Min. 1-13/16
D-Nom. 2-1/16
D-Max. 2-5/16
APPROVALS AND STANDARDS
The 1/2 inch orifice Model F692 Stand-
ard Response Concealed Pendent
Sprinklers are listed by Underwriters
Laboratories Inc. and listed by Under-
writers Laboratories Inc. for use in
Canada (i.e., C-UL Listed).
The 1/2 inch orifice Model F692 Stand-
ard Response Concealed Pendent
Sprinklers are approved by Factory
Mutual Research Corporation for use
in Hazard Occupancies up to and in-
cluding Ordinary, Group II. The Ordi-
nary Hazard Occupancy approval is
limited to use in wet pipe systems and
preaction systems qualifying as wet
pipe systems.
The laboratory listings and approvals
apply to the temperature ratings and
Cover Plate finishes indicated in Fig-
ure A.
WARNING
The Model F692 Standard Response
Concealed Pendent Sprinklers de-
MM
84,1
4,8
66,8
46,0
52,4
58,7
