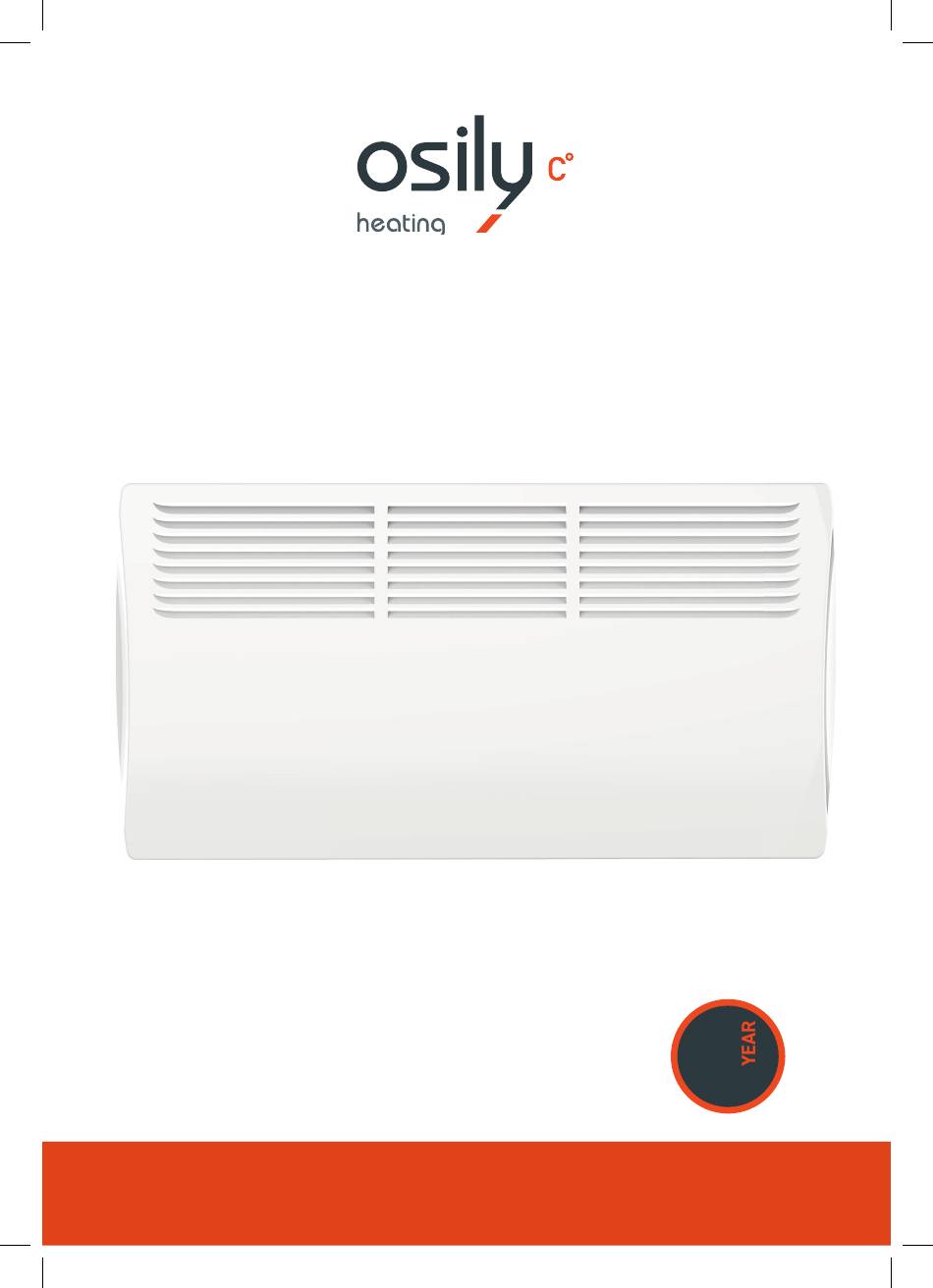

- Page 1 OSPH750/1000/1500/2000 PANEL HEATER INSTALLATION AND OPERATING INSTRUCTIONS ELECTRONIC WARRANTY osily.co.uk...
- Page 2 Thank you for purchasing this Osily Panel Heater. Please read these instructions before installation or operation and leave with the appropriate person for future retention. OSPH750/1000/1500/2000 Panel Heater Installation & Operating Instructions 5 mm IMPORTANT SAFETY INFORMATION 57 mm WARNING: In order to avoid overheating, do not cover the heater.
- Page 3 Do not install the heater in a draught likely to affect the control setting. Do not locate the heater in any area that may store or contain paint. Fuel or other flammable liquids. minimum clearance 450mm 150mm FIG 1. osily.co.uk...
- Page 4 2. Then pull out the top bar by pressing firmly both upper parts slotted into the rear housing. Slide down the wall bracket in order to remove it from the rear housing. 3. Fix the wall bracket securely to the wall through the 4 screw holes provided. osily.co.uk...
- Page 5 Then engage 2 slots of the upper parts of the wall bracket and tighten the 2 screws in order to lock the device. Please check to confirm that the heater is securely mounted before continuing with the installation! osily.co.uk...
- Page 6 “-“ key COMFORT MODE (Temperature range 5-35º) COMFORT MODE -1 °) COMFORT MODE -2°) ECO MODE = COMFORT MODE -3.5°) ANTI-FROST MODE (Temperature at 7°) PROGRAMMING MODE (set the heater with programs ) Open window function Keypad lock function osily.co.uk...
- Page 7 COMFORT - 2°C MODE: User cannot set the temperature. The heater will decrease 2°C from comfort temperature which is set in COMFORT MODE. For example, if you set 19°C as the comfort temperature, the COMFORT - 2°C MODE temperature will be 17°C. osily.co.uk...
- Page 8 Press “MODE” until “P” appears the unit is now ready to program Daily setting from Monday to sunday 1 2 3 4 5 6 7 Time Program Mode 24 hour setting 0h 2 8 10 12 14 16 18 20 22 24 osily.co.uk...
- Page 9 To programme press and hold the mode button whilst in programming mode, P1 will be displayed Use the +/- button to change to P2, P3, P4, press the mode button to confirm the pre-set you wish, and it will be set for the day. osily.co.uk...
- Page 10 Please note that if the heater is switched off by the on/off switch located on the side panel or unplugged or disconnected from the mains supply the control panel will retain all pre-programmed settings, however the clock settings will need to be reset. osily.co.uk...
- Page 11 From 00:00 to 08:00 hrs: Eco mode From 08:00 to 23:00 hrs: Comfort mode From 23:00 to 00:00 hrs: Eco mode From 00:00 to 08:00 hrs: Comfort -2 mode From 08:00 to 23:00 hrs : Comfort mode From 23:00 to 00:00 hrs: Comfort -2 mode osily.co.uk...
- Page 12 Product Product Operation Weight Voltage Range Power Frequency (Hz) Protection Class Frost Protection Setting Code Dimensions Consumption (KW) Current (A) 0.75 7 deg OSPH750 4.8kg 230V 50-60 618*116*437mm 4.8kg 230V 50-60 7 deg OSPH1000 618*116*437mm 6.4kg 230V 7 deg OSPH1500...
- Page 13 For end of life disposal of this product please do not dispose of with household waste. Please recycle where facilities exist. Check with your Local Authority or supplier for recycling information. Distributed by YESSS Electrical UK, YESSS House, Foxbridge Way, Normanton, West Yorkshire, WF6 1TN Telephone: 01924 227940 osily.co.uk...
Need help?
Do you have a question about the OSPH750 and is the answer not in the manual?
Questions and answers
Please help regarding programming 7 radiators. Cannot see details. Is there an overall control of several radiators
The Osily OSPH750 radiator supports electronic temperature control and day-of-week control, but it does not support distance control or presence detection. Therefore, to program multiple OSPH750 radiators for overall control, you must manually set each unit using the control panel.
Use the Programming Mode on each heater:
1. Turn on the heater by switching to the “I” position.
2. Press the ON/OFF button to activate anti-frost mode.
3. Press the MODE button repeatedly to select PROGRAMMING MODE.
4. Set desired programs individually on each unit using the "+" and "–" keys.
Each heater must be programmed separately as there is no central or remote control option.
