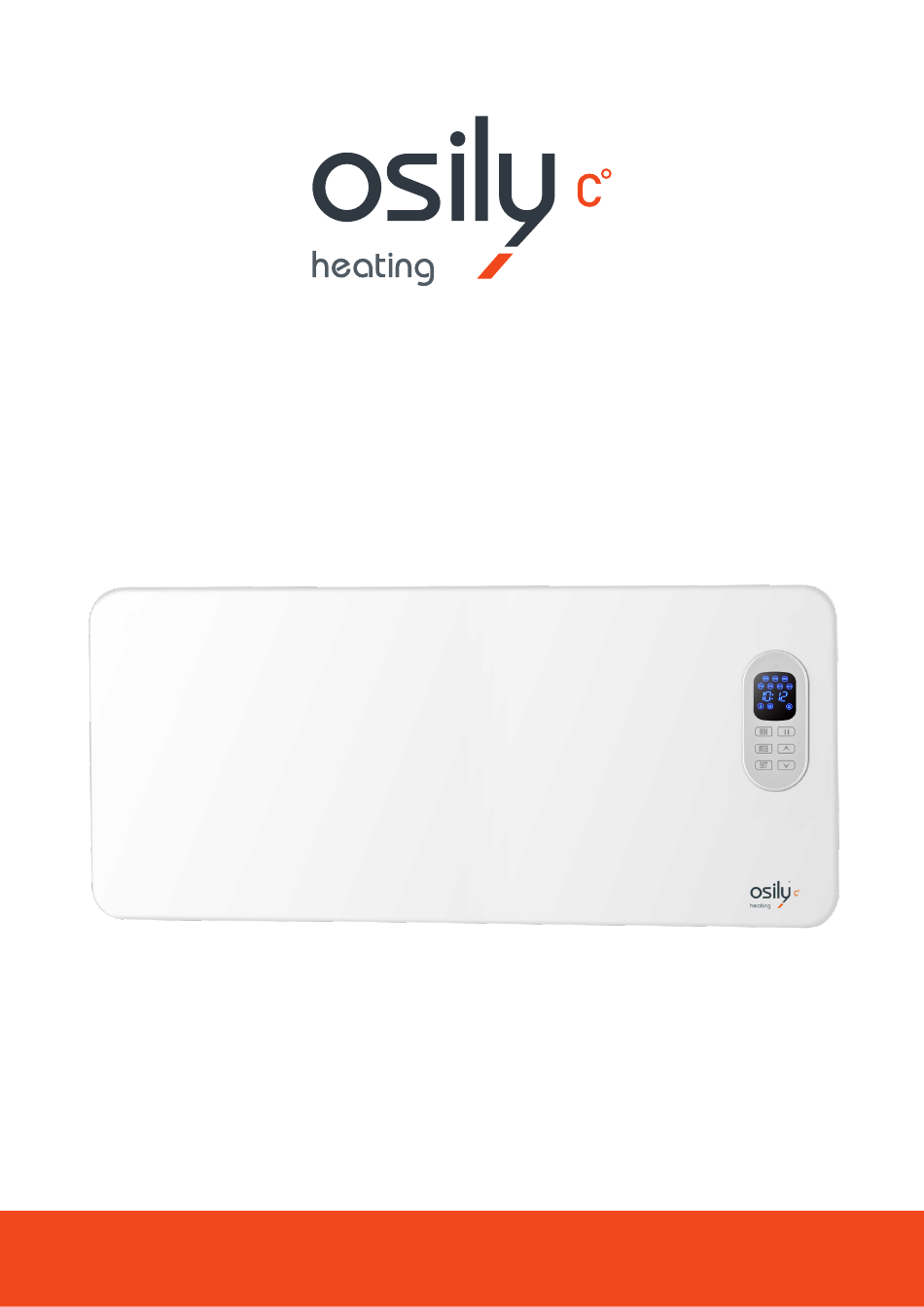

- Page 1 SLIMLINE PANEL HEATERS Installation And Operation Instructions Model Number OSPH1000E/1500E/2000E www.osily.co.uk...
- Page 2 Thank you for purchasing this Osily Convector Heater. Please read these instructions before installation or operation and leave with the appropriate person for future retention. OSPH1000E/1500E/2000E Slimline Panel Heater Installation & Operating Instructions 5 mm 57 mm IMPORTANT SAFETY INFORMATION WARNING: In order to avoid overheating, do not cover the heater.
-
Page 3: Setting The Heater
250mm above the floor. Do not install the heater in a draught likely to affect the control setting. Do not locate the heater in any area that may store or contain paint, fuel or other flammable liquids. & www.osily.co.uk... - Page 4 2 slots ofthe bottom parts of the wall brackets in the wall heater’s rear enclosure then pull up the heater. Then engage 2 slots of the upper parts of the wall bracket and tighten the 2 screws in order to lock the device. www.osily.co.uk...
-
Page 5: Touch Controls
Touch Controls 1. Minute Button 5. Temperature Up & Timer Heat On 2. Hour Button & Mode Switched 6. Temperature Down & Timer Heat Off 3. Weekly Button & Function Selection 7. Display 4. Heat Button www.osily.co.uk... -
Page 6: Operation
Child Lock Press and hold the HEAT button for 5 seconds and the lock symbol will be displayed. All buttons are deactivated. To exit the child lock, press and hold the HEAT button again for 5 seconds. www.osily.co.uk... - Page 7 Notes: When the room temperature reaches the desired level, the heater will change to Low Heat mode. When room temperature is 2 degrees over the desired temperature, the heater will enter standby mode. The heater will resume operation when the temperature drops 2 degrees below the desired temperature. www.osily.co.uk...
-
Page 8: Technical Specification
VOLTAGE OPERATION DIMENSIONS PART NO. POWER (KW) FREQUENCY IP RATING ROOM SIZE RANGE CURRENT (A) (WXDXH) OSPH1000E 220-240V 50-60 Hz IP24 10mSQ 600 x 90 x 380 mm OSPH1500E 220-240V 50-60 Hz IP24 15mSQ 760 x 90 x 380 mm... -
Page 9: Heat Output
Type of heat input, for electric storage local space heaters only (select one) ITEM SYMBOL Manual heat charge control, with integrated thermostat Manual heat charge control with room and/or outdoor temperature feedback Electronic heat charge control with room and/or outdoor temperature feedback Fan assisted heat output www.osily.co.uk... - Page 10 With distance control option With adaptive start control With working time limitation With black bulb sensor MADE IN PRC AER, Zac du Caillou, Rue Jules Verne, 69630, Chaponost, France YESSS House, Unit B Foxbridge Way, Normanton, WF6 1TN, UK www.osily.co.uk...
