Summary of Contents for osily OSDR0500

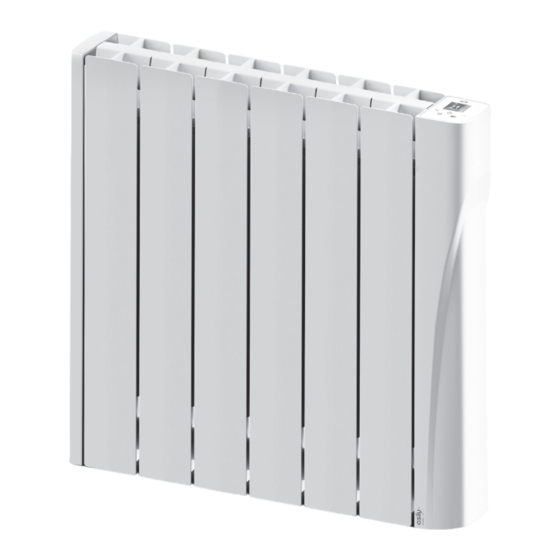

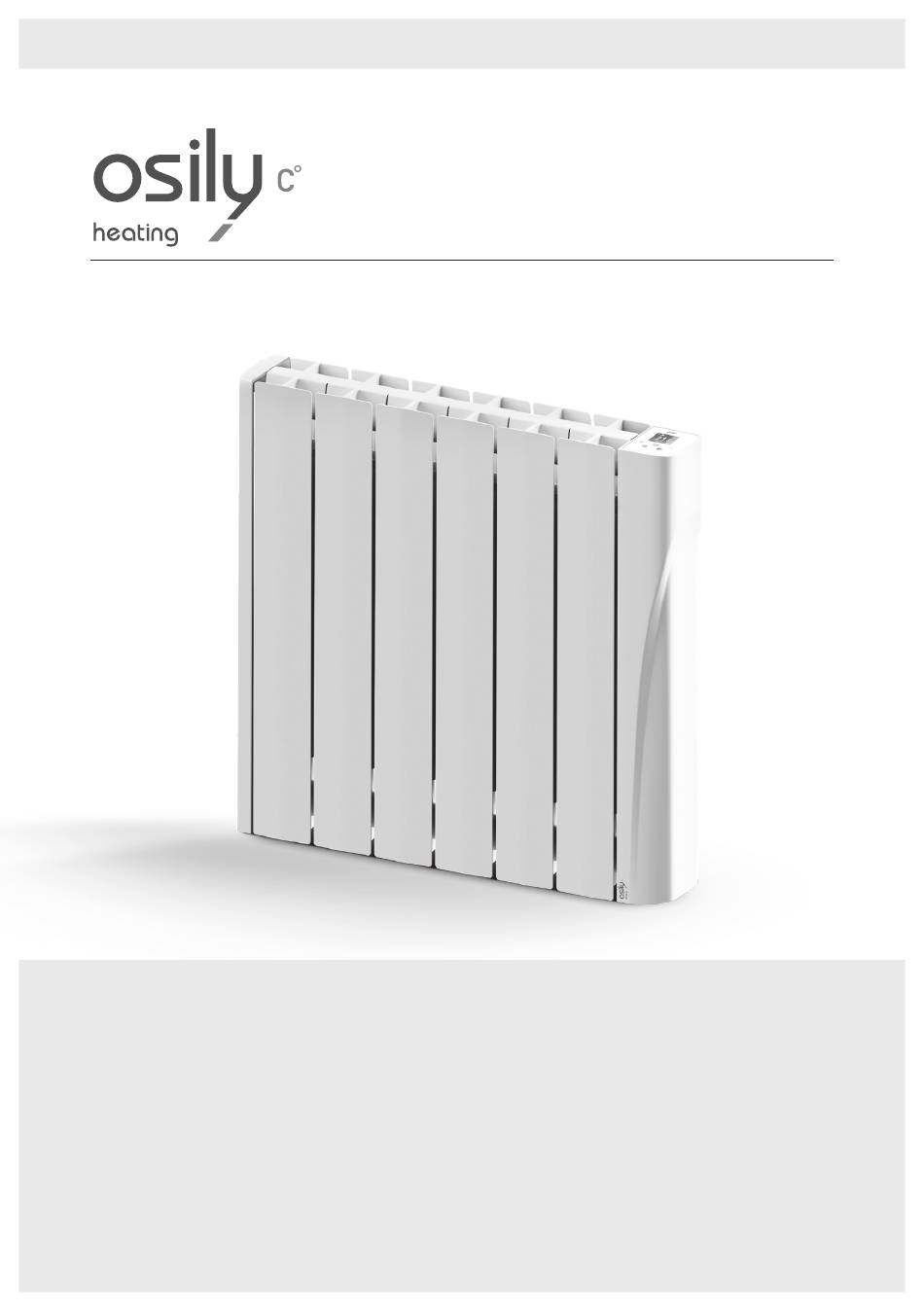

- Page 1 DIGITAL ELECTRIC RADIATOR INSTRUCTION & INSTALLATION GUIDE...
- Page 3 SYMBOLS DANGER. This symbol indicates a medium-high risk hazard which can result in serious injury or even death. DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not leave or place magazines, spray cans, volatile substances, or similar objects within 250 mm of the radiator.
-
Page 4: Table Of Contents
INDEX 1. General Warnings .............................5 2. Technical information ............................8 3. Installation ................................9 4. Screen & Keypad ..............................12 5. Functionality and programming ......................13 5.1. ON & OFF ..............................13 5.2. Select the temperature........................13 5.3. Temperature control ...........................13 5.4. Lock / unlock button pad ........................13 5.5. -
Page 5: General Warnings
1. GENERAL WARNINGS WARNINGS This product may be used by children over 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge under strict supervision or instruction in the safe use of the product and if they understand the hazards involved. - Page 6 When using electrical appliances, precautions should be taken to reduce the risk of fire, electric shock and injury. Never insert fingers, body parts or objects inside the product. Make sure that the voltage indicated on the product’s technical information corresponds to the voltage output you have at your socket.
- Page 7 IMPORTANT Disconnect the product from the power supply and make sure the product is at room temperature before any cleaning or maintenance. Do not use any abrasive substances on the product, such as (but not limited to) chemicals, coarse cloths, brushes, hard bristle, or wire/steel wool.
-
Page 9: Installation
3. INSTALLATION We recommend using a trusted installer or electrician for installation of the product. IMPORTANT: Prior to installation, please locate the metal tag located at the back of the product and note the product reference and serial number. WARNING: Do not install the product directly over an electrical outlet or junction box. Do not install the product or use it outdoors. - Page 10 An installation kit is included in the product packaging. You will need a drill, a rubber mallet, a spirit level and a pencil to complete the installation. WARNING: The weight of some of the products may be heavy. The installation may require two people.
- Page 11 7. Connect your product to the power supply and switch it on. 8. See section 5 for operating instructions. IMPORTANT: Template measurements per model OSDR0500 OSDR0750 / OSDR1000 241 mm 80 mm 124 mm 44 mm Floor Floor OSDR1250 / OSDR1500 / OSDR1750...
-
Page 12: Screen & Keypad
4. SCREEN & KEYPAD TFT screen On / Off button Decrease temperature / Go down button Main menu button + Go back button Increase temperature Programming button / Go up button Selected temperature Preset programs mode Current time and day Hourly programming Heating element on Open Windows indicator... -
Page 13: Functionality And Programming
5. FUNCTIONALITY & PROGRAMMING 5.1. ON & OFF To turn the product on press the button once. To turn off press the button again. When you turn the product on for the first time, it will ask you to set the date and time. Use the buttons to select the correct time and press the button to confirm. -
Page 14: Settings Menu
5.5. SETTINGS MENU Press the button to access the configuration menu. The available options are: Settings, Power, and Programming mode. Settings Set time Backlight Language Firmware Energy Open windows function Balance mode Adaptative mode Prog. mode On/off Preset programs User mode Use th buttons to move between the menu options. -
Page 15: Energy Submenu
• Adjust brightness This function allows you to adjust the brightness when the product is on or in standby. To adjust the brightness, select BACKLIGHT. With the buttons you can turn the brightness up or down. Press the button to confirm. •... -
Page 16: Prog. Mode
• Balance This function resets your product to a temperature of 19ºC in Manual mode. Use the buttons to select this option and press confirm. The screen will show 19ºC in Manual mode. • Adaptive mode This function anticipates the product start-up, so that the room temperature at the start of the selected time is equal to the set temperature at the exact time that we have established during programming. - Page 17 • Mode From the MODE menu, select the operating mode you require: MANUAL or PROGRAMMING. Use the buttons to select manual or programming and press to confirm. • Preset heating programs From the PRE-PROGRAMS menu you can select a preset heating program to use.
- Page 18 • User program This mode allows the user to make their own programming. There are 2 ways to start editing the programming: 1. Do a long press on the button. 2. Enter the submenu USER PROGRAM from the main menu. Then follow the steps below.
- Page 19 Select the days to be programmed Start on Day 1 (Monday). Press the button to include this day in your programming. Press the button again to exclude. STEP 2 Use the buttons to move to the next day and repeat for all days of the week. The selected days will be highlighted by a box on the screen.
-
Page 20: User Mode
5.5.4. USER MODE The USER mode allows the user to define a permitted temperature range. When in this mode, the symbol corresponding to the USER mode is displayed on the screen. Access is gained by means of a password. The default value is 0000. The numbers are selected with the buttons and confirmed with the button... -
Page 21: Warranty
The crossedout wheelie bin symbol on a horizontal bar is marked on all Osily products to remind the consumer of the obligation to separate them for separate collection. The consumer should contact the local authority or the retailer for information regarding the correct disposal of their product. - Page 22 Defective parts or parts removed or replaced shall become the property of Osily and must be returned as such. 2.4. The product must be installed in such a way as to allow access by Osily technicians or authorised persons in the event that they need to access the product for repair or maintenance.
- Page 23 2.10. Check the EULA conditions (supplied with the product for Wi-Fi connected products) for information on the legal agreement you accept when installing a Osily product. For product or guarantee assistance, please contact Osily by telephone at +44 (0)203 769 7624 or by email to support@smart-heating-solutions.com.
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 This also applies to products already on order provided that such alterations can be made without subsequent changes to specifications already agreed. All trademarks in this material are the property of OSILY. OSILY and the OSILY logotypes are trade-...
