Innovative X-Tender Assembly Instructions

X-Tender Stand
ASSEMBLY INSTRUCTIONS (schematic reference on back)
1

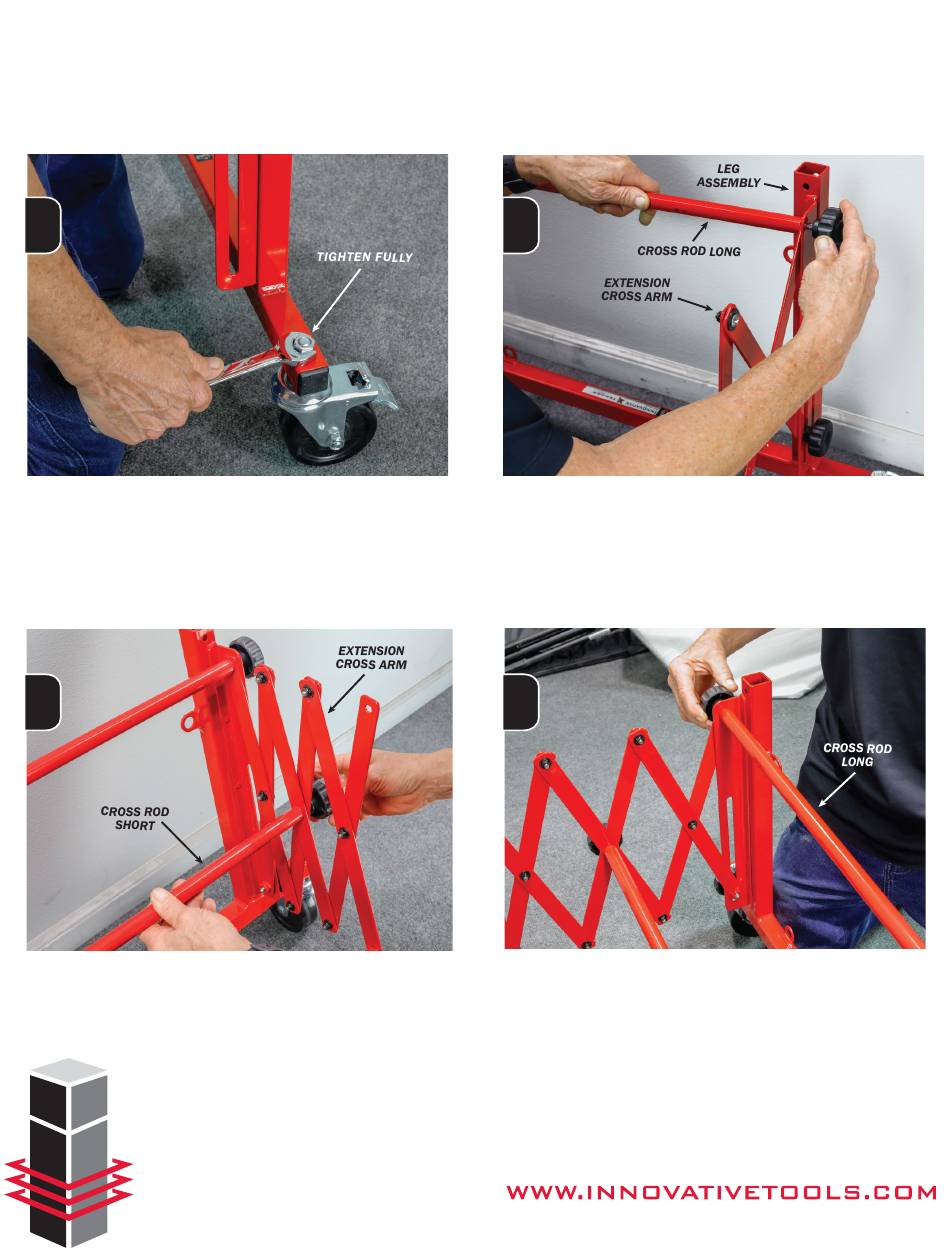

Install (4) Total-Lock Caster Wheels into Leg Assembly.
Lock wheels as shown.
CASTER WHEELS - P/N 4TLCW
LEG ASSEMBLY - P/N ES-001
3
Install Cross Rod Short to Extension Cross Arm.
CROSS ROD SHORT - P/N ES-003
PLASTIC HAND KNOB - P/N 250-026
INNOVATIVE
TOOLS & TECHNOLOGIES, INC.
2016 Gateway Circle
St.Paul, Minnesota 55038-7783
INNOVATIVE
2
Install Extension Cross Arm assembly to Leg Assembly
using Cross Rod Long and plastic hand knobs.
EXTENSION CROSS ARM ASSEMBLY - P/N ES-004
LEG ASSEMBLY - P/N ES-001
CROSS ROD LONG - P/N ES-002
PLASTIC HAND KNOB - P/N 250-026
4
Repeat Steps 2- 3 for Second Leg Assembly - then insert
(2) padded support frame assemblies into the top of stand.
LEG ASSEMBLY - P/N ES-001
EXTENSION CROSS ARM ASSEMBLY - P/N ES-004
PLASTIC HAND KNOB - P/N 250-026
PADDED SUPPORT FRAME ASSEMBLY - P/N ES-005
