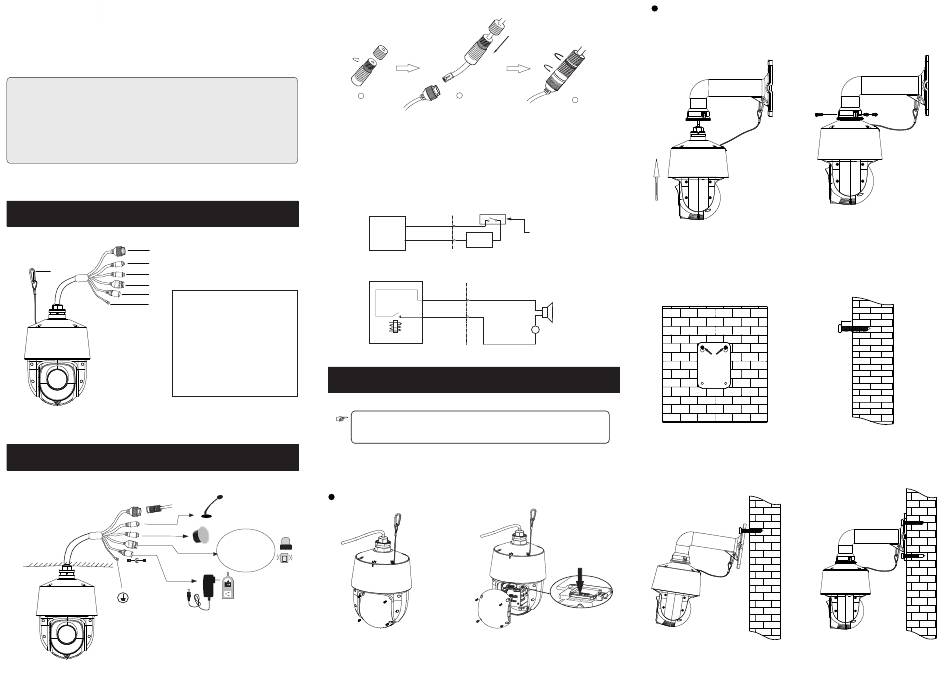

TVT Digital TD-8443IS2N Quick Start Manual

HD PTZ Camera
Quick Start Guide
■ Please read this instruction carefully before using the product
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
1

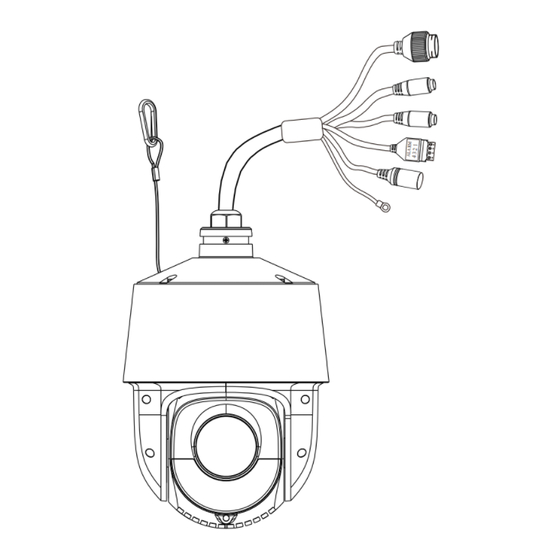

Overview
1
2
7
3
4
5
1 Ethernet connector (PoE)
6
2 MIC-Audio
input (3.5mm)
3 HP-Audio
output (3.5mm)
4 Alarm
input/output
5 DC12V Power jack
6 Ground
7 Safety wire
2
Cable Connection
DC12V
Connect to
earth ground
►
Connecting Network Cable
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the both
elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut and
the main cover.
Connecting
Alarm
Input
PTZ
Camera
Connecting
Alarm
Output：
Relay
PTZ Camera
3
Installation
Please make sure the wall is strong enough to bear the dome camera's
weight and the camera is powered off during installation.
This PTZ camera supports wall or ceiling mounting. Please select a way to
install as needed. The following instructions are for reference only.
Micro SD Card Installation
1--ALM-GND
2--ALM-IN
3--ALM-OPEN
4--ALM-COM
1. Loosen the four screws of
the cover and then remove
the cover.
2
3
ALARM-IN
Alarm input device




Power
5~12VDC
ALARM-GND
Max.
load:
24VDC, 1A
ALARM-OPEN
Alarm output device
ALARM-COM
+
DC -
Insert a micro
SD card
2. Insert a micro SD card as indicated
above and then install the cover back.
Wall Mounting
2. Secure the PTZ camera to the
1. Pull the cables through the
bracket with screws.
bracket.
3. Drill the screw holes on the wall 4. Insert two screws to the holes
according to the drill template. Then as indicated by the arrows (left)
insert the plastic plugs into the holes. and leave 12mm clearance.
6. Attach the bracket to the wall
5. Connect the cables and then
with four screws.
hang the bracket on the wall.
12
