TVT Digital TD-9622E Quick Start Manual

TVT Digital TD-9622E Quick Start Manual

Ip speed dome camera

Advertisement

Quick Links

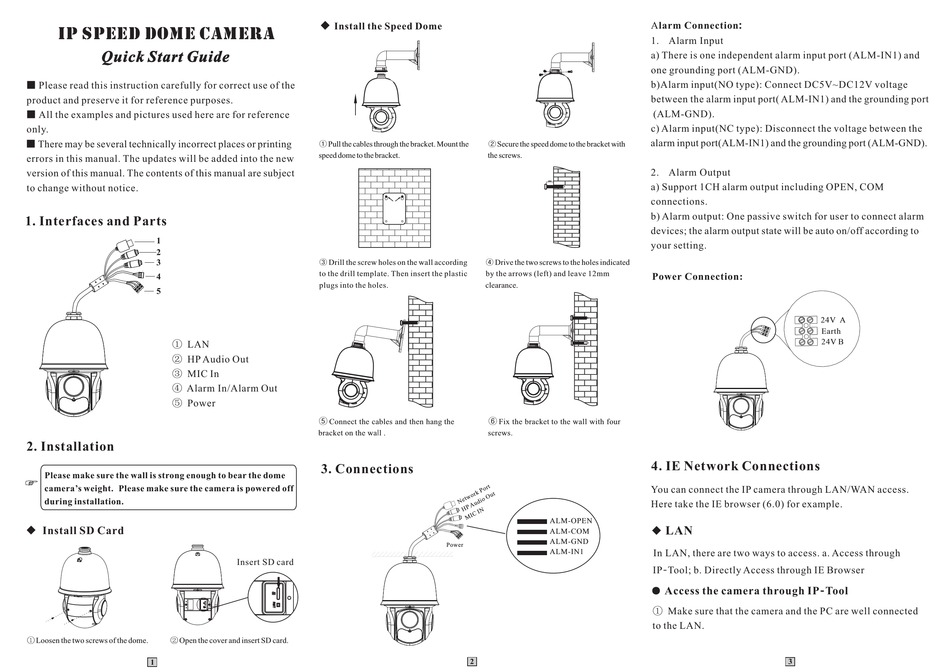

IP Speed Dome Camera

Quick Start Guide

■ Please read this instruction carefully for correct use of the
product and preserve it for reference purposes.
■ All the examples and pictures used here are for reference
only.
■ There may be several technically incorrect places or printing
errors in this manual. The updates will be added into the new
version of this manual. The contents of this manual are subject
to change without notice.
1. Interfaces and Parts
1
2
3
4
5
① LAN
② HP Audio Out
③ MIC In
④ Alarm In/Alarm Out
⑤ Power
2. Installation
Please make sure the wall is strong enough to bear the dome
camera's weight. Please make sure the camera is powered off
during installation.
◆ Install SD Card
① Loosen the two screws of the dome.
② Open the cover and insert SD card.
1
Install the Speed Dome
① Pull the cables through the bracket. Mount the
speed dome to the bracket.
③ Drill the screw holes on the wall according
to the drill template. Then insert the plastic
plugs into the holes.
Connect the cables and then hang the
bracket on the wall .
3. Connections
Insert SD card
② Secure the speed dome to the bracket with
the screws.
④ Drive the two screws to the holes indicated
by the arrows (left) and leave 12mm
clearance.
Fix the bracket to the wall with four
screws.
ALM-OPEN
ALM-COM
ALM-GND
Power
ALM-IN1
2
Alarm Connection:
1. Alarm Input
a) There is one independent alarm input port (ALM-IN1) and
one grounding port (ALM-GND).
b)Alarm input(NO type): Connect DC5V~DC12V voltage
between the alarm input port( ALM-IN1) and the grounding port
(ALM-GND).
c) Alarm input(NC type): Disconnect the voltage between the
alarm input port(ALM-IN1) and the grounding port (ALM-GND).
2. Alarm Output
a) Support 1CH alarm output including OPEN, COM
connections.
b) Alarm output: One passive switch for user to connect alarm
devices; the alarm output state will be auto on/off according to
your setting.
Power Connection:
24V A
Earth
24V B
4. IE Network Connections
You can connect the IP camera through LAN/WAN access.
Here take the IE browser (6.0) for example.
LAN
In LAN, there are two ways to access. a. Access through
IP-Tool; b. Directly Access through IE Browser
Access the camera through IP-Tool
① Make sure that the camera and the PC are well connected
to the LAN.
3
