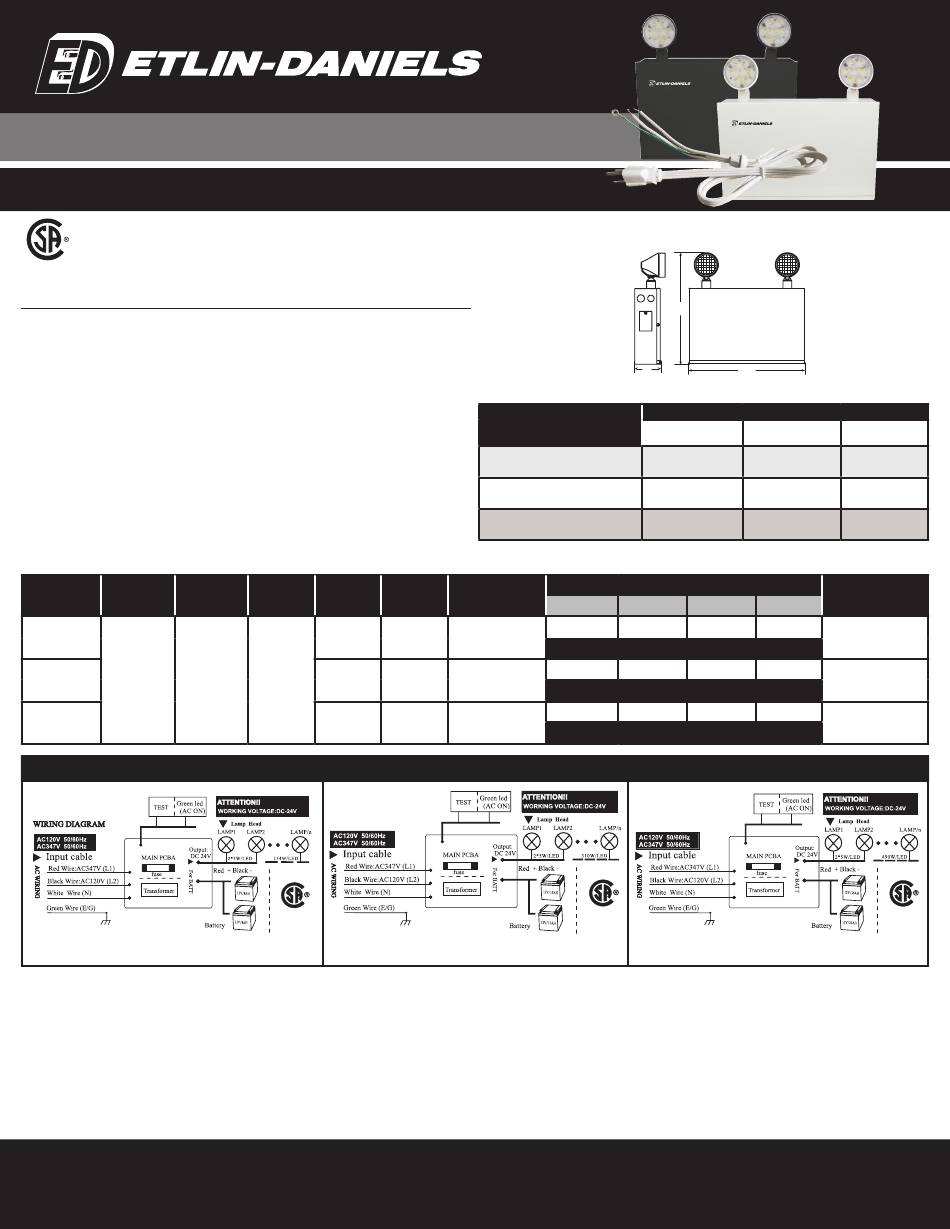

Etlin-Daniels ER3144D Installation

INSTALLION – ER3144D / ER3320D / ER3500D
LED METAL EMERGENCY BATTERY UNIT DUAL HEADS
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
CAN ICES-005 (B) NMB-005 (B)
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Review the diagrams thoroughly before beginning.
• All electrical connections must be in accordance with local codes, ordinances and the
National Electric Code.
• All unused wires must be capped to prevent shorting.
• Disconnect power at fuse or circuit breaker before installing or servicing.
• Do not use outdoors.
• Do not mount in hazardous locations or near gas or electric heaters.
• Do not let power cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not be subject to
tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by the manufacturer.
• Do not use this equipment other than intended use.
• All servicing should be performed by qualified personnel only.
• Allow battery to charge for 50hrs before first use.
WORKING OUTPUT
SERIES
VOLTAGE VOLTAGE
ER3144D
120V/347V,
ER3320D
50Hz / 60Hz
ER3500D
ER3144D
OPERATION
1. To Test, depress the TEST Switch. Charge indicator will go out and the DC lamps will come on.
2. Release the TEST Switch. DC lamps will be extinguished, and the charge indicator will come on.
3 .A bright charge LED indicator light indicates a high charge rate. After the battery has
reached fullcharge, the indicator light will go out. Under normal operation the high charge
indicator will turn on and off intermittently while the unit is in standby mode (regular AC is
present) since the charge rate will vary in order to maintain an optimal battery performance.
INPUT
HEADS
WATTAGE
5 - 35W
24V 2 x 5W 5 - 82W
5 - 82W
602463
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104 ·
Toll Free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
SERIES
ER3144D
ER3320D
ER3500D
REMOTE
WATTAGE
CAPABLE
30 MIN
144W 134W
320W 310W
500W 490W
WIRING DIAGRAM
ER3320D
CORD AND PLUG INSTALLATION
White - WHM:
Cord Supplied has 3 conductor cord – white, white, green. Cap red (347V) wire. Wire black to
either white conductor wire / wire white to other white conductor wire / wire green (ground) to
green conductor wire.
Black – BLM:
Cord Supplied has 3 conductor cord – black, black, green. Cap red (347V) wire. Wire black to
either black conductor wire / wire white to other black conductor wire / wire green (ground) to
green conductor wire.
B
C
A
A
13.94"
354 mm
16.38"
416 mm
15.32"
389 mm
WATTAGE CAPACITY
60 MIN 90 MIN
142W 72W 48W
50 Hours Charging Time
320W 160W 106W
50 Hours Charging Time
450W 250W 166W
50 Hours Charging Time
602463
DIMENSIONS
B C
13.39" 3.11"
340 mm 79 mm
16.77" 3.66"
426 mm 93 mm
17.04" 5.51"
433 mm 140 mm
BATTERY TYPE
& CAPACITY
120 MIN
36W LEAD ACID
12V
8AH*2
80W LEAD ACID
12V
15AH*2
125W LEAD ACID
12V
26AH*2
602463
ER3500D
