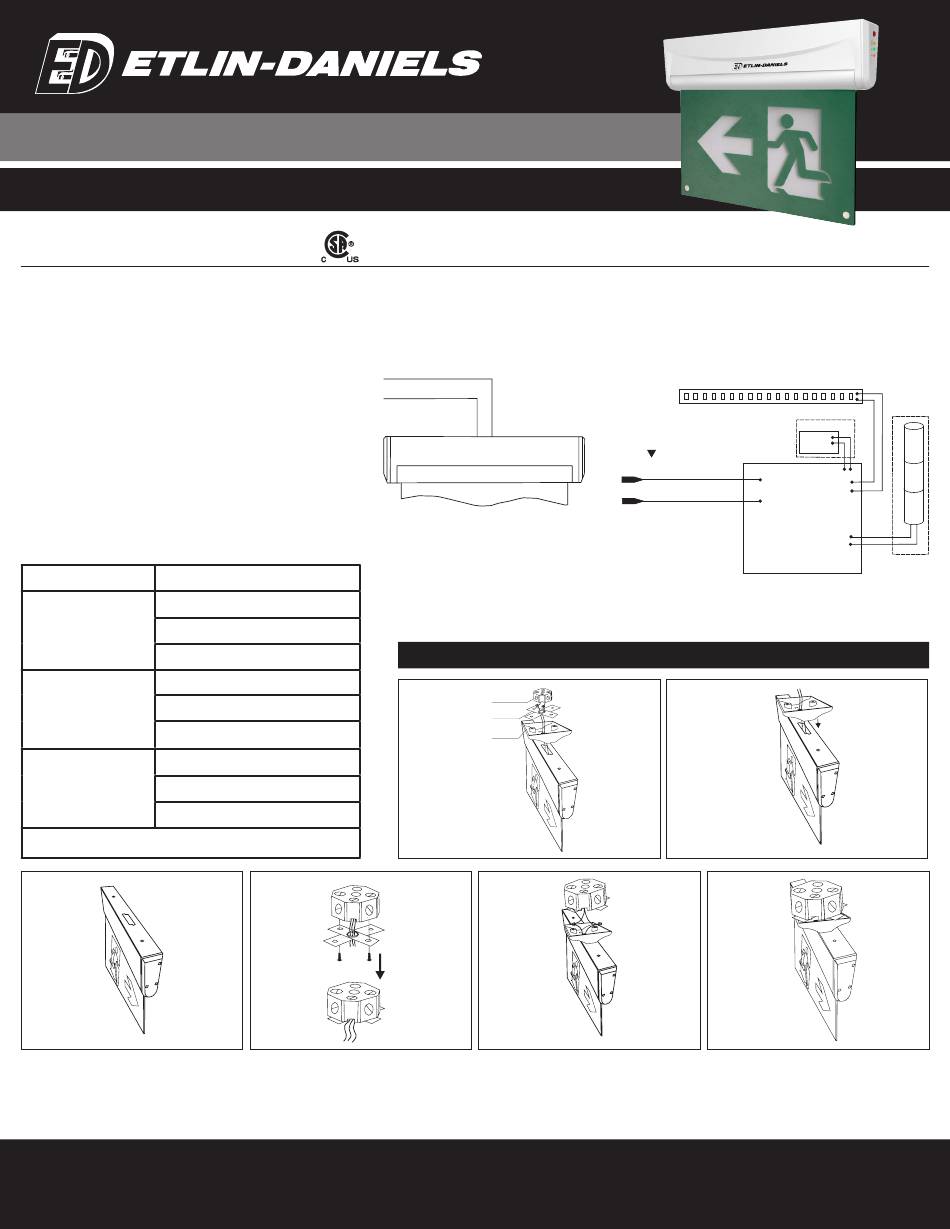

Etlin-Daniels EE202WH-A13BB-GU Installation Manual

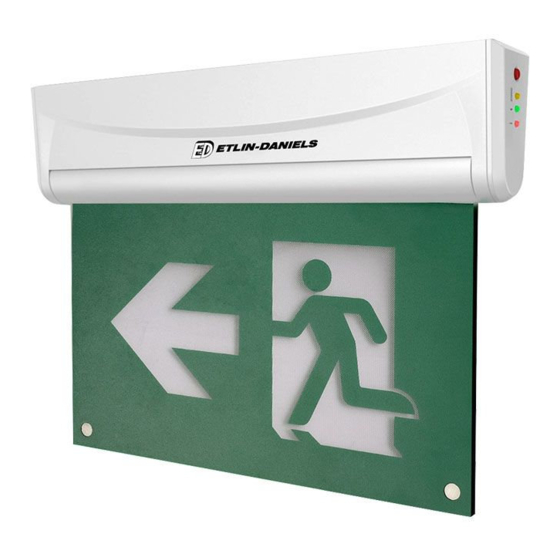

INSTALLATION MANUAL FOR EE202WH-A13BB-GU / LED RUNNING MAN EDGE LIT EXIT SIGN
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Review the diagrams thoroughly before beginning.
• All electrical connections must be in accordance with local codes,
ordinances and the National Electric Code.
• Disconnect power at fuse or circuit breaker before installing
or servicing.
• Do not use outdoors.
• Do not mount in hazardous locations or near gas or electric heaters.
• Do not let power cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where
it will not be subject to tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by
the manufacturer.
• Do not use this equipment other than intended use.
• All servicing should be performed by qualified personnel only.
• Allow battery to charge for 24hrs before first use.
Models / Input Voltage EE202WH-A13BB-GU
Input Wattage : 3W
AC 120V
Input Current : 0.24A
50 / 60 Hz
Efficiency: 0.98P
Input Wattage : 3.5W
AC 277V
Input Current : 0.014A
50 / 60 Hz
Efficiency: 0.93P
Input Wattage : 4W
AC 347V
Input Current : 0.017A
50 / 60 Hz
Efficiency: 0.92P
PS: Battery voltage is negatively relative to input wattage
1. Attach spider plate / crossbar to junction box, use screws if needed.
2. Feed AC supply wire through canopy center hole.
3. Assemble canopy onto aluminum housing with screws (supplied) and make proper wire connections.
3.1 Black Wire (L); White Wire (N);
WIRING DIAGRAM
AC/SP WIRING
Black Wire (L)
AC120V -347V
Whit e Wire (N)
CIRCUITRY
• Emergency duration: ≥ 2 hours
• Recharge time: 24 hours
• Output Wattage: 1W
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104 ·
Toll Free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
AC WIRING
Working Voltage:
AC120V - 347V 50Hz / 60Hz
AC /SP WIRING
• Light Source: Ultra bright LED
• Color temperature: 6500K - 7500K
• Ni-cad Battery: 3.6V 800mAh jj
CEILING MOUNT
junction box
crossbar
traverse
canopy
4. Use screws (supplied) to tighten canopy to mounting plate (spider plate/cross bar)
5. The unit can be installed on any surface, you may rotate the Acrylic panel in any angle from
0 degrees to 180 degrees.
LED Stri p
Test
SP
red le d
Input AC cabl e
Blac k Wire (L)
White Wir e (N)
MAIN PCBA
Transformer
Fo r batter y
Black Wire (L)
White Wire (N)
--------------------
Green Wire (E)
Batter y
SP
